BF035-03-C-0400-0300-0127-N-E datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BF035-03-C-0400-0300-0127-N-E

Preview

BF035-03-C-0400-0300-0127-N-E: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size143KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF035-03-C-0400-0300-0127-N-E Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle,

BF035-03-C-0400-0300-0127-N-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304448046
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	2
Other features	ROHS COMPLIANT
body width	0.079 inch
subject depth	0.059 inch
body length	0.236 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e3
Plug contact pitch	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	2 A
Guideline	UL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	3

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

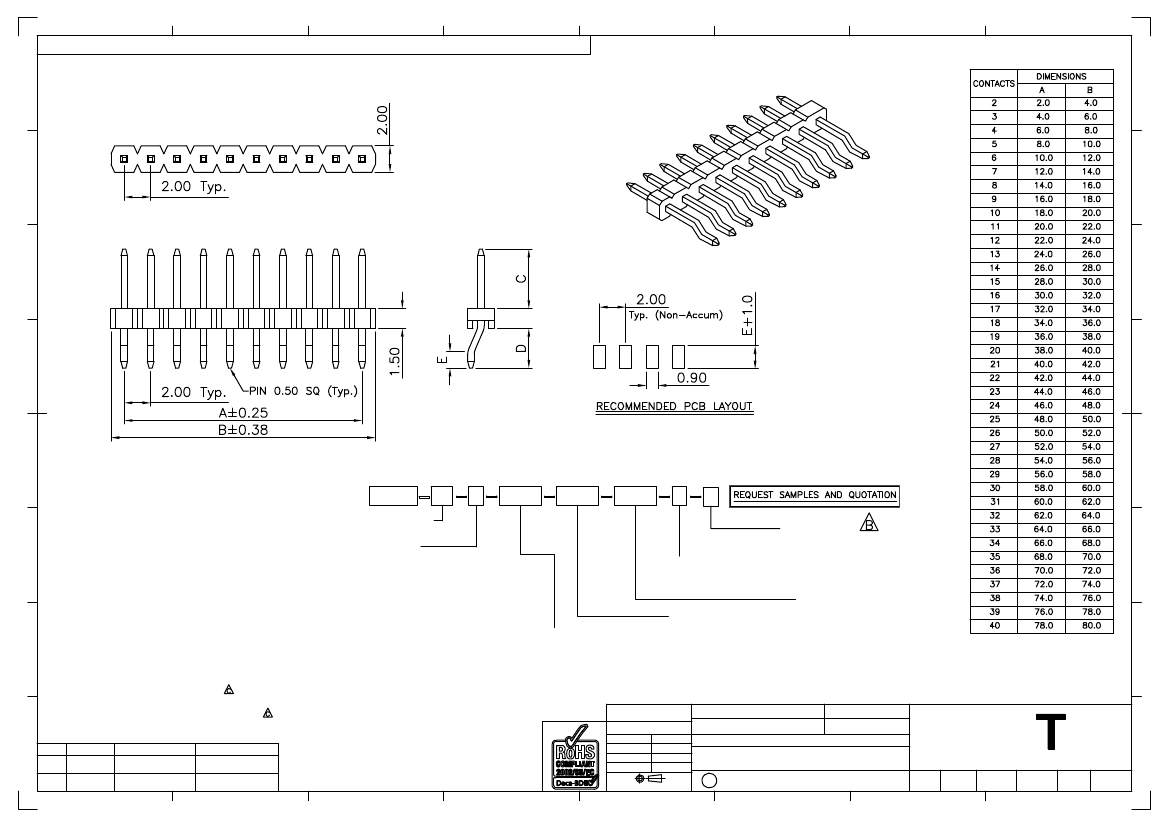

Global Connector Technology Ltd. - BF035: 2.0mm PITCH PIN HEADER, SINGLE ROW, SURFACE MOUNT, HORIZONTAL

A

B

C

D

E

Ordering Grid

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 2.0 AMPERE

No. of Contacts

INSULATION RESISTANCE

绝缘电阻值

: 1000M

Ω

Min.

02 to 40

CONTACT RESISTANCE

接触电阻值

: 20m

Ω

Max.

Contact Plating

DIELECTRIC WITHSTANDING

耐电压

: 500V AC

A = Gold Flash All Over

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

B = Selective Gold Flash Contact Area/

CONTACT MATERIAL

端子物料

: COPPER ALLOY

Tin On Tail

INSULATOR MATERIAL

绝缘½物料

:

C = Tin All Over

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

G = 10µ" Gold Contact Area/Tin On Tail

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

I = 30µ" Gold Contact Area/Tin On Tail

NYLON 6T (STANDARD

标准物料

) -

Standard = Gold Flash All Over

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BF070

BF085

BF090

BF091

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

25/10/07

PN

TOLERANCES AMENDED

PACKING OPTIONS CHANGED

E

BF035

XX

X

XXXX

X

Packing Options

B = Tape and Reel with Cap (Standard)

D = Tube

E = Tube and Cap

F

Insulator Material

N = Nylon 6T (Standard)

L = LCP

F

G

Dimension C (1/100mm)

(Post Length)

Standard - 4.00mm = 0400

Or specify Dimension C

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Tolerances

(Except as noted)

Dimension D (1/100mm)

(Insulator to End of Pin)

Standard - 3.00mm = 0300

Or specify Dimension D

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Dimension E (1/100mm)

(Pin Curve to End of Pin)

Standard - 1.27mm = 0127

Or specify Dimension E

e.g. 2.50mm = 0250

TOL +/- 0.2mm

G

Part Number:-

Date:-

Dimensions in mm

X.°± 5.0°

.X°± 3.0°

X.X ± 0.25

X.XX ± 0.15 .XX°± 2.0°

X.XXX ± 0.10 .XXX°± 1.0°

Third Angle Projection

X. ± 0.30

BF035

Description:-

26 OCT 07

H

DR

CHANGE TO SOLDER

TEMP. INFORMATION

C

30/07/09

2.0mm PITCH PIN HEADER, SINGLE ROW,

SURFACE MOUNT, HORIZONTAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

Sheet No.

E & OE

1/1

B

30/04/09

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

C

Drawn by

LYH

1

2

3

4

5

6

7

8
