Datasheet> All Categories > Discrete semiconductor> diode> BYV72F-150

Preview

BYV72F-150: DescriptionRectifier Diode, 1 Phase, 2 Element, 10A, 150V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size243KB，9 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYV72F-150 Overview

Rectifier Diode, 1 Phase, 2 Element, 10A, 150V V(RRM), Silicon,

BYV72F-150 Parametric

Parameter Name	Attribute value
Maker	YAGEO

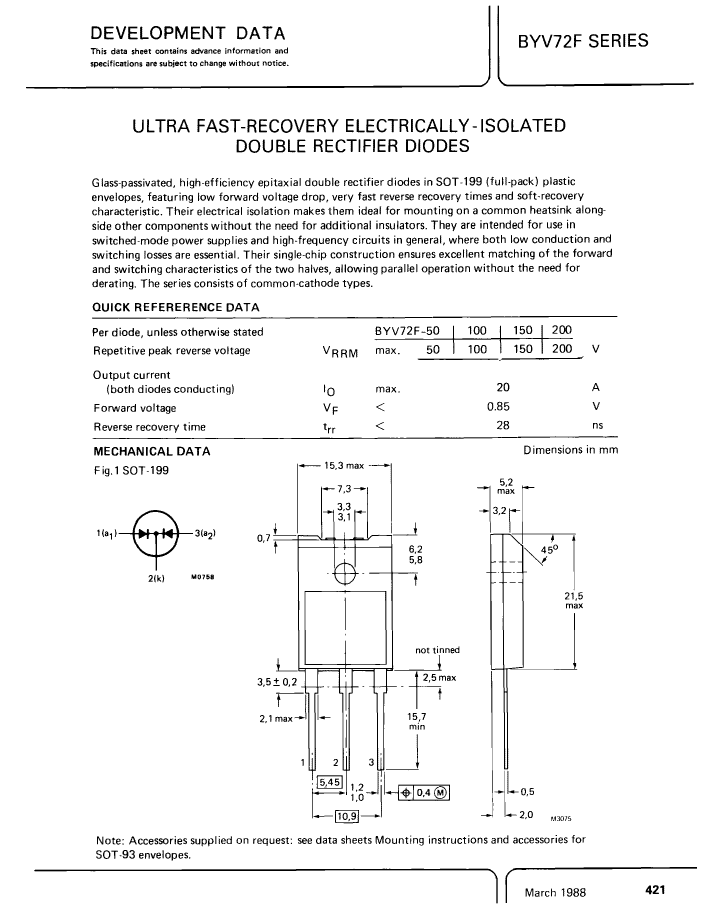

package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	160 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified

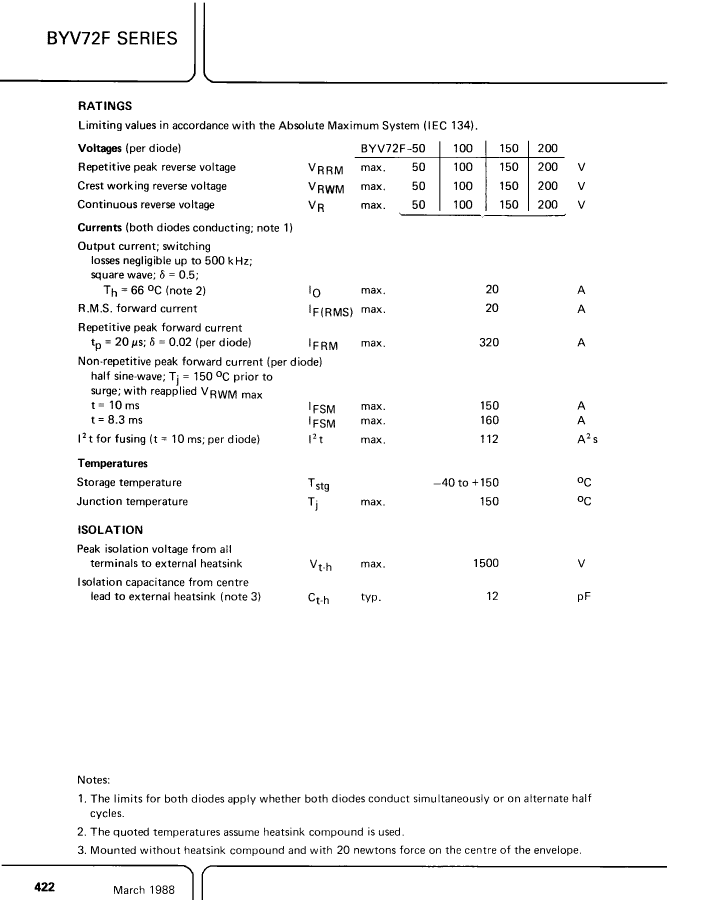

Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	25 µA

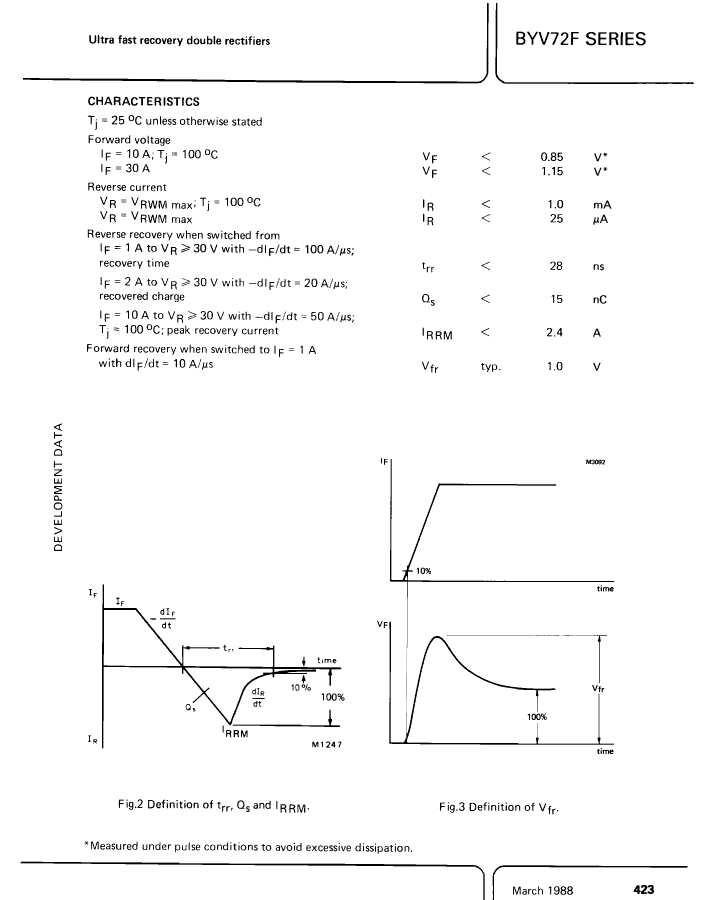

Maximum reverse recovery time	0.028 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

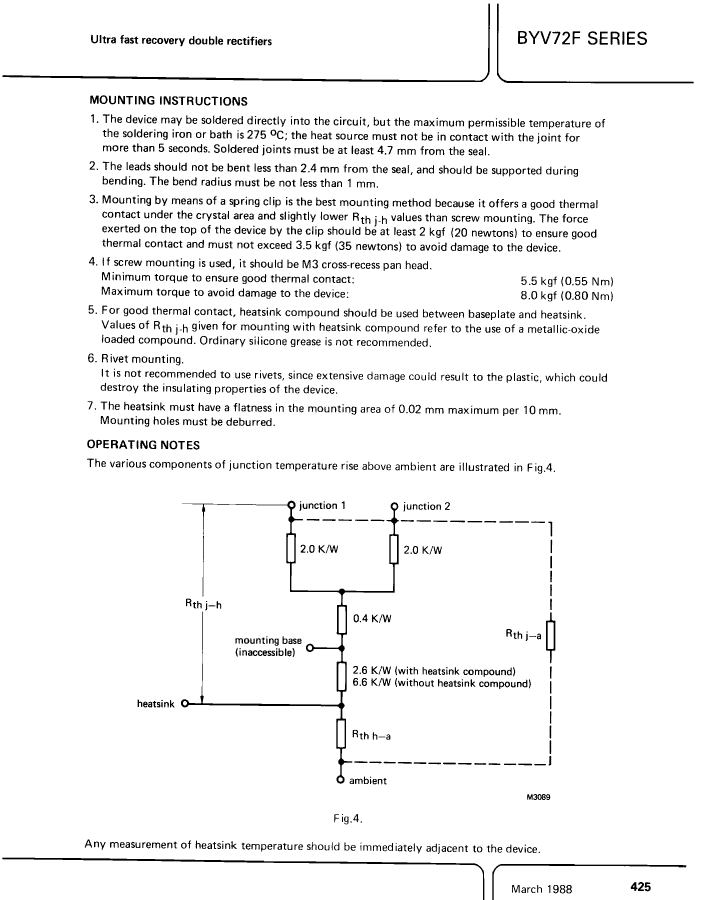

Preview

Download Datasheet

View All

BYV72F-150 Related Products

	BYV72F-150	BYV72F-200	BYV72F-100	BYV72F-50
Description	Rectifier Diode, 1 Phase, 2 Element, 10A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon	Rectifier Diode, 1 Phase, 2 Element, 10A, 50V V(RRM), Silicon,
Maker	YAGEO	YAGEO	YAGEO	YAGEO
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknown	unknown	unknown	unknown
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V	1.15 V	1.15 V	1.15 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	160 A	160 A	160 A	160 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	10 A	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	200 V	100 V	50 V
Maximum reverse current	25 µA	25 µA	25 µA	25 µA
Maximum reverse recovery time	0.028 µs	0.028 µs	0.028 µs	0.028 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
ECCN code	EAR99	EAR99	-	EAR99
