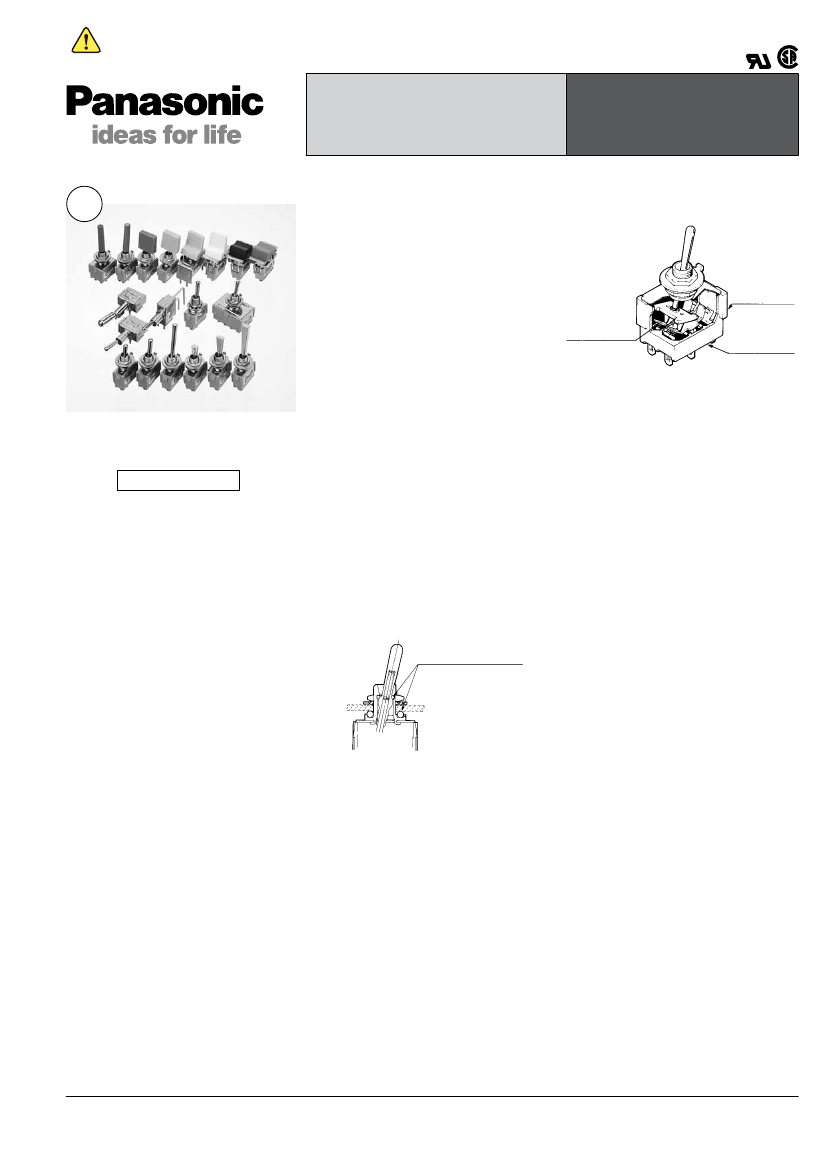

(Other than lever lock type and panel water-protected type)
F: Cadmium-free product
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AECTB22E 201201-T
Discontinued as of August 31, 2012

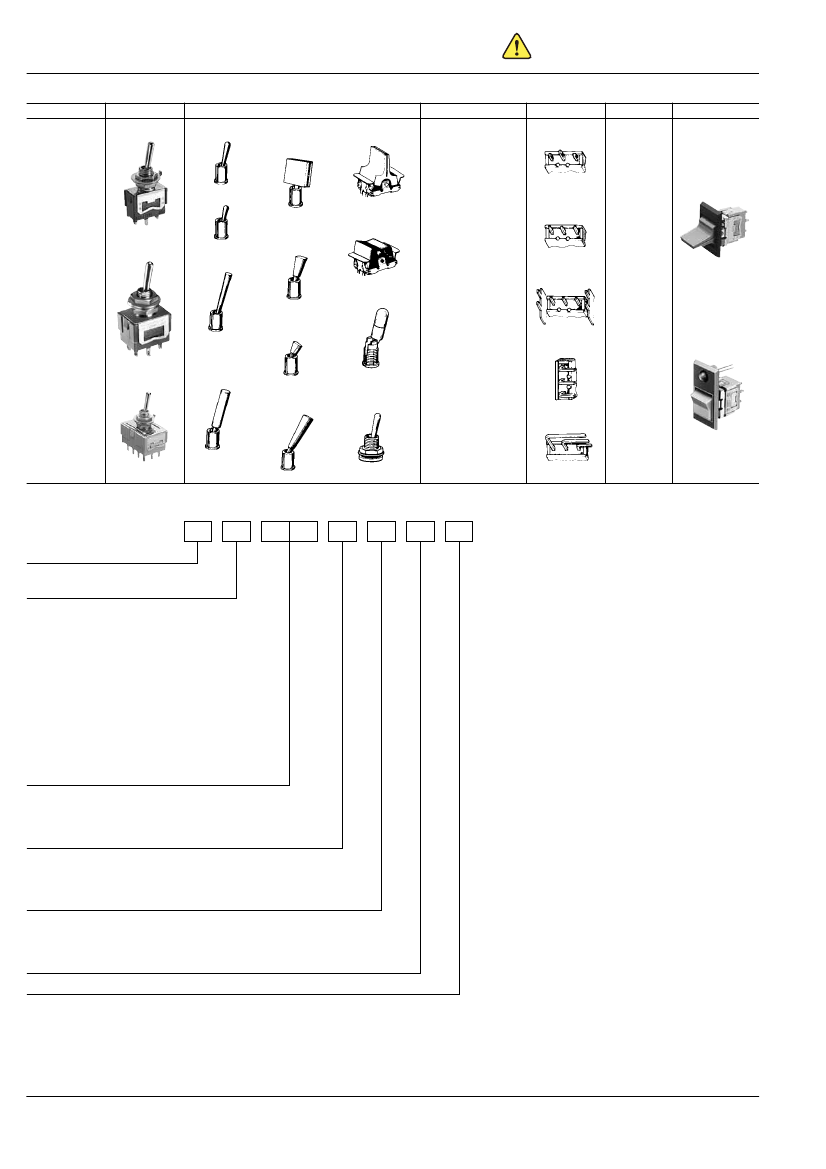

AJ1, AJ2
AJ1 (AgZnO alloy contact type) PRODUCT TYPES
1. Standard toggle and short toggle
Standard toggle
Short toggle
Change the asterisk
Change the asterisk
to a “1” when ordering. to a “2” when ordering.
1) Solder terminal, PC board terminal and Bracket type
Number of poles
Operation
< >: Momentary position
ON-OFF
ON-ON
1-pole
ON-OFF-ON
ON-<ON>
<ON>-OFF-<ON>
ON-OFF-<ON>
ON-OFF
ON-ON
2-pole
ON-OFF-ON
ON-<ON>
<ON>-OFF-<ON>
ON-OFF-<ON>
ON-ON
ON-OFF-ON
4-pole
ON-<ON>
<ON>-OFF-<ON>
ON-OFF-<ON>
Solder terminal
Part No.
AJ111∗01F
AJ111∗11F
AJ111∗21F
AJ111∗31F
AJ111∗41F
AJ111∗51F
AJ121∗01F
AJ121∗11F
AJ121∗21F
AJ121∗31F
AJ121∗41F
AJ121∗51F
AJ141∗11F
AJ141∗21F
AJ141∗31F
AJ141∗41F
AJ141∗51F
PC board terminal
Part No.
AJ111∗02F
AJ111∗12F
AJ111∗22F
AJ111∗32F
AJ111∗42F
AJ111∗52F
AJ121∗02F
AJ121∗12F
AJ121∗22F
AJ121∗32F
AJ121∗42F
AJ121∗52F
AJ141∗12F
AJ141∗22F
AJ141∗32F
AJ141∗42F
AJ141∗52F
Bracket type
Part No.
AJ111∗03F
AJ111∗13F
AJ111∗23F
AJ111∗33F
AJ111∗43F
AJ111∗53F
AJ121∗03F
AJ121∗13F
AJ121∗23F
AJ121∗33F
AJ121∗43F
AJ121∗53F
—
—
—
—
—
2) PC-H terminal and PC-V terminal
Number of poles
Operation
< >: Momentary position
ON-OFF
ON-ON
1-pole
ON-OFF-ON
ON-<ON>
<ON>-OFF-<ON>
ON-OFF-<ON>
ON-OFF
ON-ON
2-pole
ON-OFF-ON
ON-<ON>
<ON>-OFF-<ON>
ON-OFF-<ON>
PC-H terminal
Part No.
—
AJ111∗14F
AJ111∗24F
AJ111∗34F
AJ111∗44F
AJ111∗54F
—
AJ121∗14F
AJ121∗24F
AJ121∗34F
AJ121∗44F
AJ121∗54F
PC-V terminal
Part No.
—
AJ111∗15F
AJ111∗25F
AJ111∗35F
AJ111∗45F
AJ111∗55F
—
AJ121∗15F
AJ121∗25F
AJ121∗35F
AJ121∗45F
AJ121∗55F
Remarks:
Regarding standard toggles:
1. When ordering please change the asterisk to a “1”.
2. Standard installation accessories are included with the product.
3. When distinguishing by color, please use with the separately sold color caps (AJ281∗) if there is a possibility that static electricity might cause damage to the
electronic components.
Standard toggle
Color cap
Switch with color cap
4. For UL and CSA certified products, please add a “9” before the “F” at the end of the part number when ordering.
Regarding short toggles:
1. When ordering please change the asterisk to a “2”.
2. Bracket type, PC-H terminals and PC-V terminals can be special ordered only if the order lot quantity is 50 pieces or higher.
3. Standard installation accessories are included with the product.
Regarding long toggles (made-to-order product):
When ordering, the asterisk in the table above should be changed to a “3”. Please inquire about deliver times.
AECTB22E 201201-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e
AJ1, AJ2

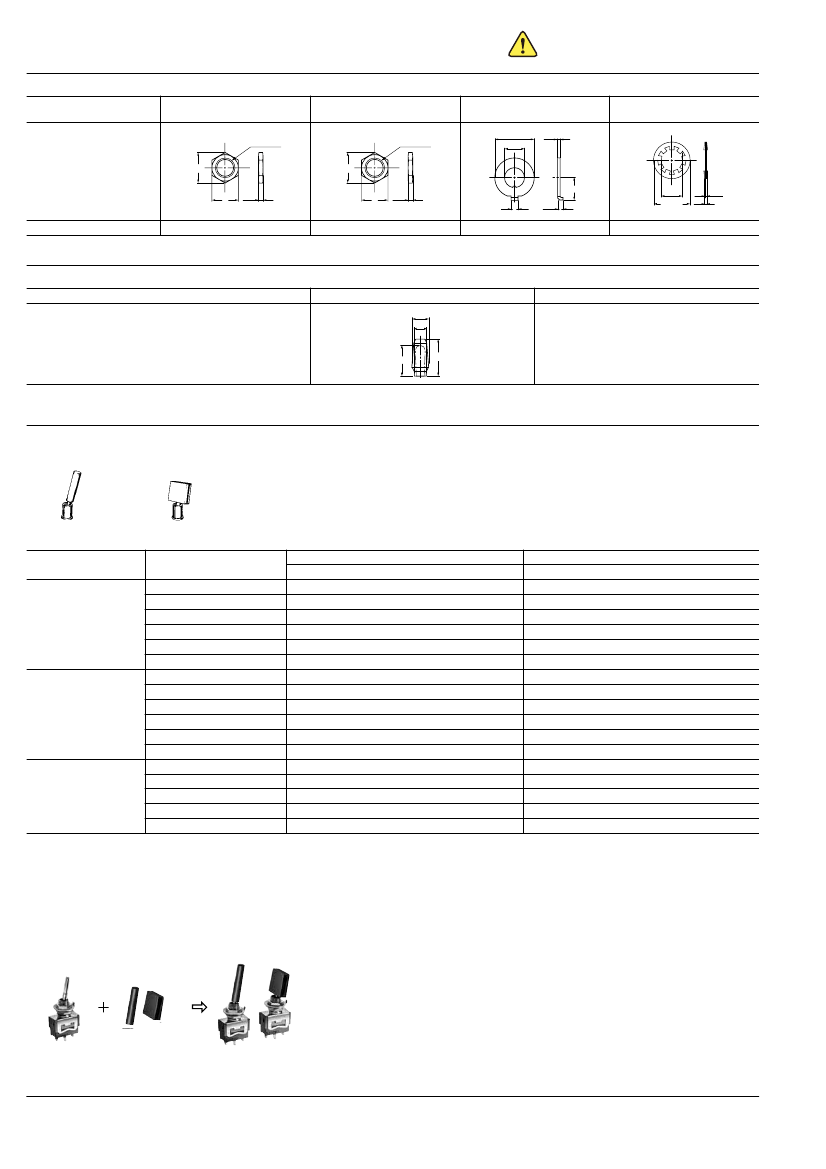

3) Standard installation accessories (repair parts)
Product name
Front hex nut
(Nickel plated)
M6 x 0.75
Discontinued as of August 31, 2012
Back hex nut
(Uni-chrome plated)
M6 x 0.75
Keying washer
12 dia.
6.1 dia.
0.8
Lockwasher
Dimensions
(Unit mm)
(9.2)
(9.2)
6.8
8
1.5
8
1.5
2
1.7
6.4 dia.
11 dia.
0.5
1
Part number
AJ2081
AJ2082
AJ2083
AJ2084
Remark: A selling unit of each accessory is 10 pieces.
4) Accessories (Option)
Product name
Dimensions (mm)
5 dia.
4 dia.
Part No.
Color cap for standard toggle
9
10.5
AJ281*
Remark: Please specify the color cap color by replacing the asterisk in the part number with appropriate letter
Remarks: 1. Bracket type, PC-H terminals and PC-V terminals can be special ordered only if the order lot quantity is 50 pieces or higher.
a. When ordering please change the number “1” before the “F” in the part number for the soldered terminal type in the table above to one of the numbers below.
1. Bracket type, PC-H terminals and PC-V terminals can be special ordered only if the order lot quantity is 50 pieces or higher.
a. When ordering please change the number “1” before the “F” in the part number for the soldered terminal type in the table above to one of the numbers below.
