AS-14.7456-6-2050-SMD-TR Overview

QUARTZ CRYSTAL RESONATOR,

AS-14.7456-6-2050-SMD-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7141796969
Reach Compliance Code	compliant
YTEOL	6.47
Other features	TR, 13 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	20 ppm
JESD-609 code	e3
load capacitance	6 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	14.7456 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L12.0XB4.8XH4.0 (mm)/L0.472XB0.189XH0.157 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

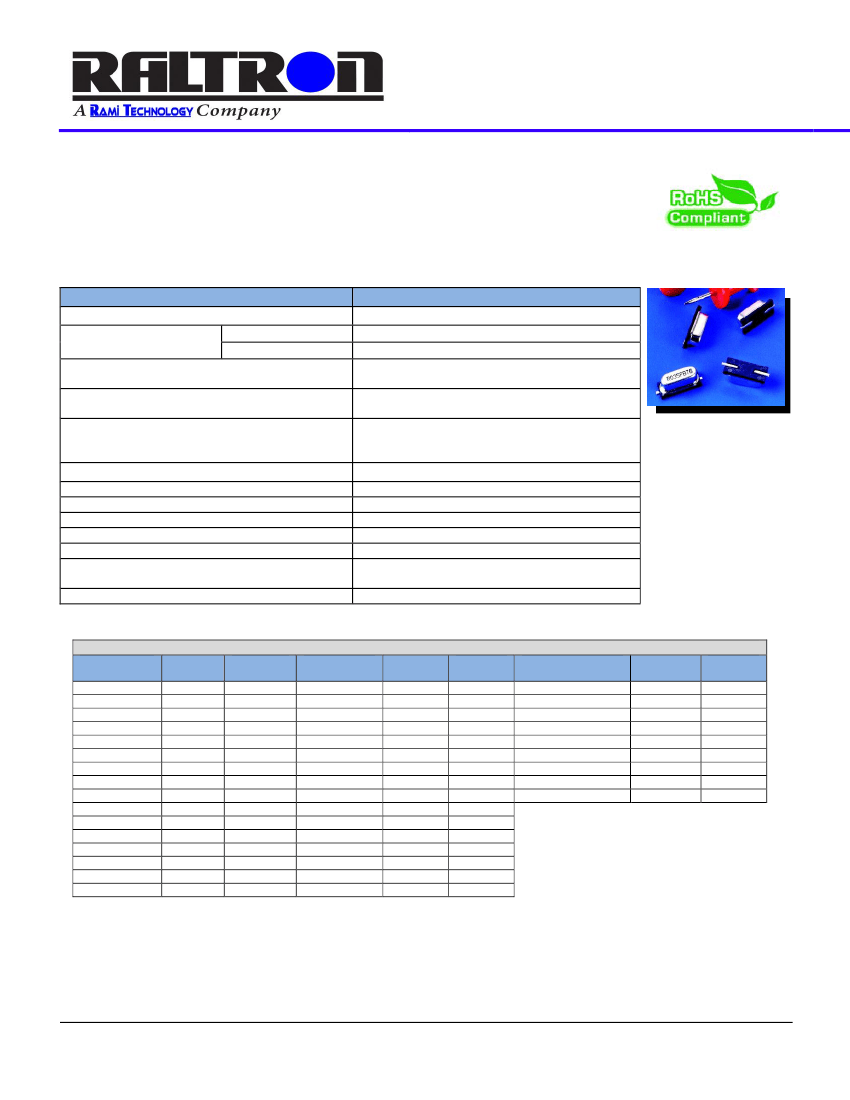

SURFACE MOUNT MICROPROCESSOR CRYSTAL

Page 1 of 3

SERIES AS-SMD



FEATURES



EXCELLENT CLOCK SIGNAL GENERATOR FOR CPU’s

AVAILABLE IN EXTENDED TEMPERATURE RANGE

LOW PROFILE SURFACE MOUNT



SPECIFICATIONS

PARAMETER

VALUE

3.200 MHz to 80.000 MHz

3.200 MHz to 40.320 MHz

24.576 MHz to 80.000 MHz

±30 ppm max

(other tolerances available)

±50 ppm max

(other stabilities available)

-20°C to +70°C Standard

-40°C to +85°C Extended

(other temperature ranges available)

-55°C to +125°C

±5 ppm per year max

6 pF to 32 pF or Series

See Table 1

5.0 pF max

500 µW max

±5 ppm max 75 cm drop test in

3 axes on to a hard wood surface

260°C ±5°C for 10s max

FREQUENCY RANGE

MODE OF OSCILLATION

FUNDAMENTAL

THIRD OVERTONE

FREQUENCY TOLERANCE AT 25°C

FREQUENCY STABILITY OVER TEMPERATURE

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

AGING

LOAD CAPACITANCE

EQUIVALENT SERIES RESISTANCE

SHUNT CAPACITANCE

DRIVE LEVEL

SHOCK RESISTANCE

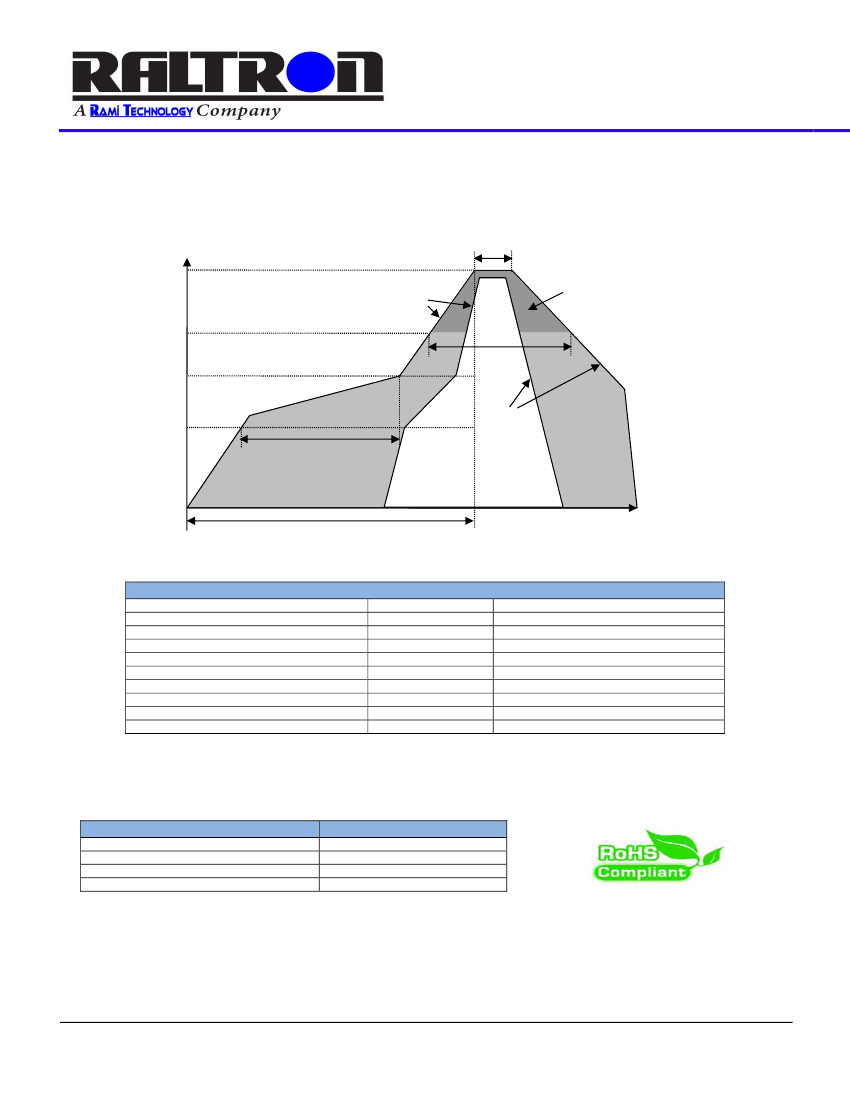

REFLOW CONDITIONS

TABLE 1

FREQUENCY

(MHz)

3.579545

3.6864

4.000

4.032

4.096

4.194304

4.433619

4.9152

5.0688

6.000

6.144

6.176

7.15909

7.3728

7.680

8.000

MODE

FUND

MAX ESR

(Ω)

180

150

130

100

80

70

60

FREQUENCY

(MHz)

8.064

8.192

8.6436

9.600

9.8304

10.000

10.240

10.244

10.245

11.000

11.0592

11.2896

12.000

12.288

12.800

14.31818

MODE

FUND

MAX ESR

(Ω)

60

50

FREQUENCY

(MHz)

14.7456

16.000 to 24.000

24.576

27.000

28.63636

29.000 to 40.000

40.320

47.920

48.000 to 80.000

MODE

FUND

FUND/3OT

3OT

MAX ESR

(Ω)

40

40/80

40/70

70

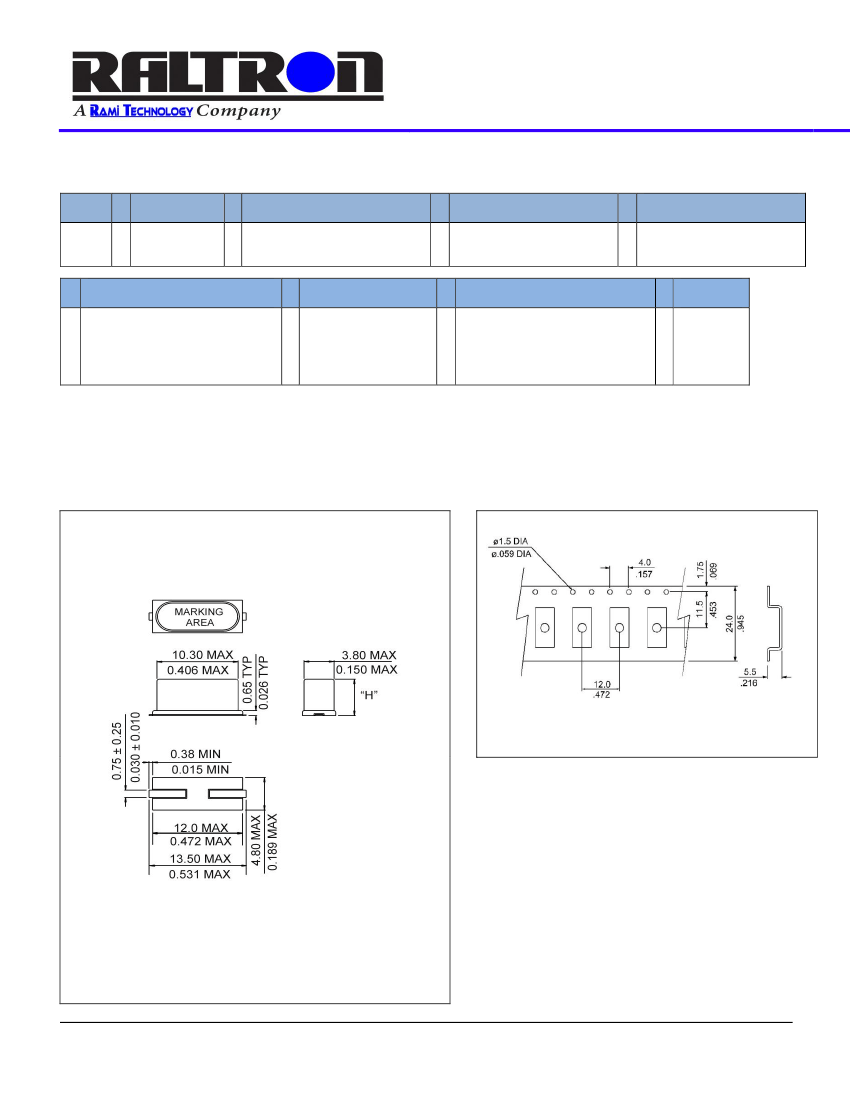

R A L T R O N E L E C T R O N I C S



1 0 4 0 0 N .W . 3 3

r d

S T R E E T



M i a m i , F l o r i d a 3 3 1 7 2



U . S . A .

Telephone: +1-305-593-6033



Fax: +1-305-594-3973



e-mail: sales@raltron.com



web site: http://www.raltron.com
