54H55FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54H55FMQB

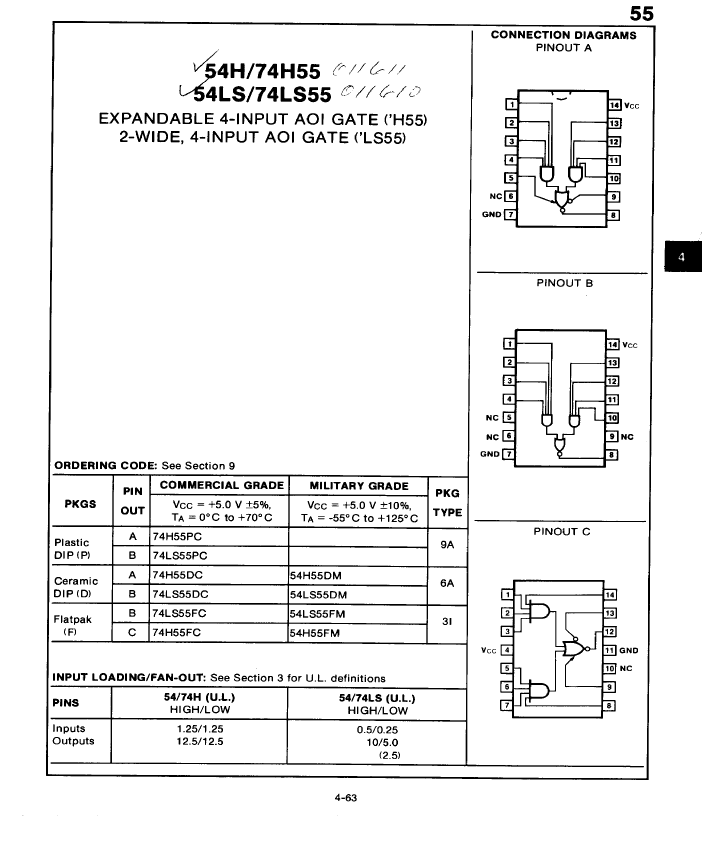

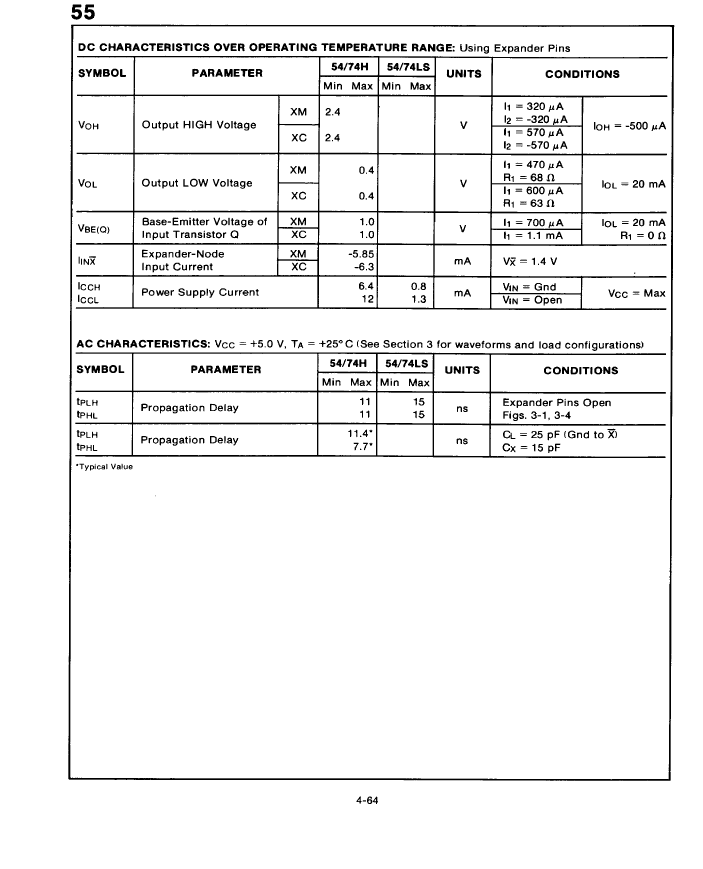

54H55FMQB: DescriptionAND-OR-Invert Gate, TTL/H/L Series, 1-Func, 4-Input, TTL, PDFP14, PLASTIC, DFP-14; Categorylogic logic; File Size43KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54H55FMQB Overview

AND-OR-Invert Gate, TTL/H/L Series, 1-Func, 4-Input, TTL, PDFP14, PLASTIC, DFP-14

54H55FMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	PLASTIC, DFP-14
Contacts	14
Reach Compliance Code	compliant
series	TTL/H/L
JESD-30 code	R-PDFP-F14
JESD-609 code	e0
Logic integrated circuit type	AND-OR-INVERT GATE
MaximumI(ol)	0.02 A
Number of functions	1
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Prop。Delay @ Nom-Sup	11 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54H55FMQB Related Products

	54H55FMQB	54H55DMQB	74LS55FC	74H55FC	74LS55DC	74LS55PC
Description	AND-OR-Invert Gate, TTL/H/L Series, 1-Func, 4-Input, TTL, PDFP14, PLASTIC, DFP-14	AND-OR-Invert Gate, TTL/H/L Series, 1-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL, CDFP14,	AND-OR-Invert Gate, TTL, CDIP14,	AND-OR-Invert Gate, TTL, PDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PLASTIC, DFP-14	CERAMIC, DIP-14	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-PDFP-F14	R-CDIP-T14	R-XDFP-F14	R-XDFP-F14	R-XDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DFP	DIP	DFP	DFP	DIP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3	FL14,.3	FL14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO
surface mount	YES	NO	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V
Is it lead-free?	-	-	Contains lead	Contains lead	Contains lead	Contains lead
Humidity sensitivity level	-	-	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	-	-	250	250	250	250
Maximum time at peak reflow temperature	-	-	30	30	30	30
