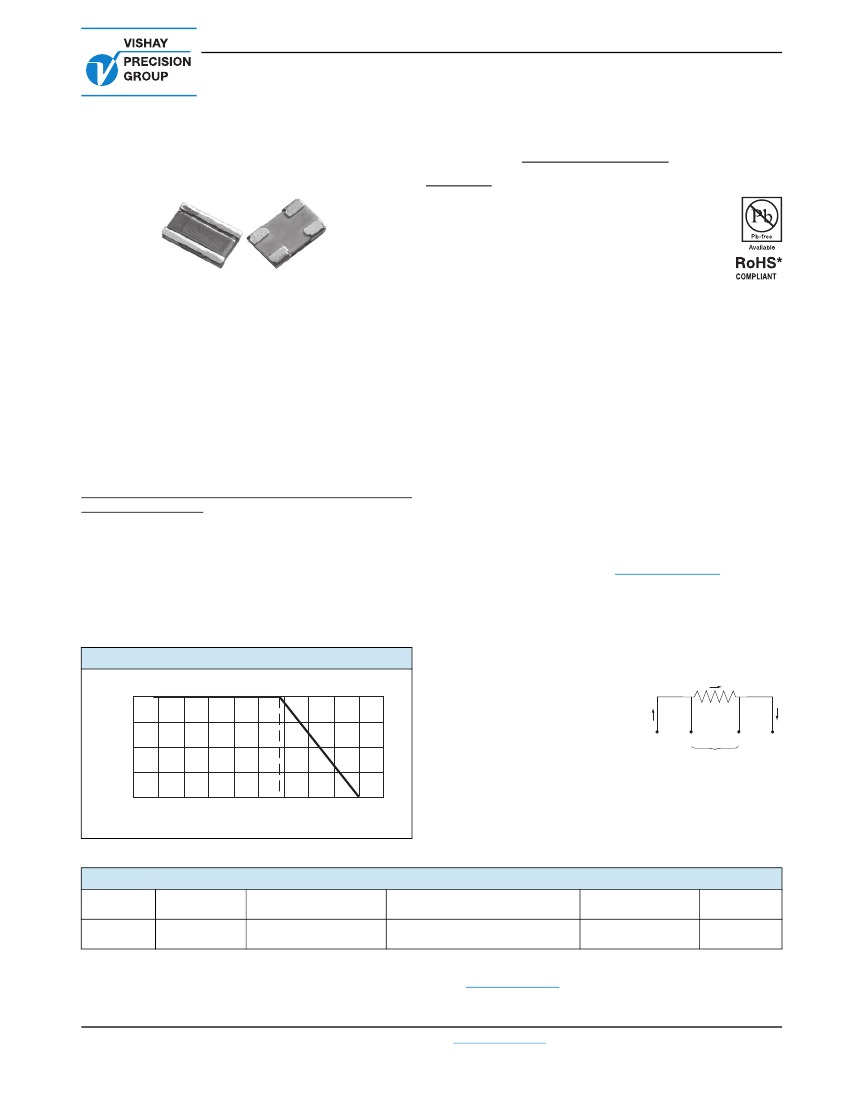

VCS1625Z (Z-Foil)

Vishay Foil Resistors

Ultra High Precision Z-Foil Surface Mount Current

Sensing Chip Resistor with TCR of ± 0.05 ppm/°C and

Power Coefficient of 5 ppm at Rated Power

FEATURES



Temperature coefficient of resistance (TCR):

± 0.05 ppm/°C typical (0 °C to + 60 °C)

± 0.2 ppm/°C typical (- 55 °C to + 125 °C,

+ 25 °C ref.) (see table 1)



Resistance range: 0.3



to 10

(for

higher or

lower values please contact us)



Foil resistors are not restricted to standard values, we can

supply specific “as required” values at no extra cost or

delivery (e.g. 1.234



vs. 1

)



Tolerance: to ± 0.2 %



Power coefficient “R due to self heating”: 5 ppm at rated

power



Load life stability: 0.02 % at 70 °C, 2000 h at rated power



Electrostatic discharge (ESD) up to 25 000 V



Short time overload < 0.005 %



Power rating: 0.5 W at + 70 °C (figure 1)



Non inductive, non capacitive design



Rise time: 1 ns effectively no ringing



Current rating: 5 A maximum



Current noise: < - 40 dB



Voltage coefficient: < 0.1 ppm/V



Non inductive: < 0.08 µH



Non hot spot design



Prototype samples available from 72 h. For more

information, please contact

foil@vishaypg.com



For better performances please contact us

INTRODUCTION

The Z-foil technology provides a significant reduction of the

resistive component’s sensitivity to ambient temperature

variations (TCR) and applied power changes (PCR).

Designers can now guarantee a high degree of stability and

accuracy in fixed-resistor applications using solutions

based on Vishay‘s revolutionary Z-foil technology.

Model VCS1625Z is a surface mount chip resistor designed

with 4 pads for Kelvin connection. Utilizing Vishay’s Bulk

Metal

Z-foil as the resistance element, it provides

performance capabilities far greater than other resistor

technologies can supply in a product of comparable size.

0.05 ppm/°C absolute TCR removes errors due to

temperature gradients.

This small device dissipates heat almost entirely through the

pads so surface mount users are encouraged to be generous

with the board’s pads and traces.

Our application engineering department is available to

advise and to make recommendations. For non-standard

technical requirements and special applications, please

FIGURE 1 - POWER DERATING CURVE

Percent of Rated Power

- 55 °C

+ 70 °C

100

- 75

- 50

- 25

+ 25

+ 50

+ 75 + 100 + 125 + 150 + 175

Ambient Temperature (°C)

TABLE 1 - SPECIFICATIONS

(2)

MODEL

NUMBER

RESISTANCE

RANGE

> 2.0



to 10



0.3



to 2.0



RESISTANCE

TOLERANCE

TYPICAL TCR and MAX. SPREAD

(- 55 °C to + 125 °C, + 25 °C)

± 0.2 ± 2.8 ppm/°C

VCS1625Z

± 0.2 %, ± 0.5 %; ± 1.0 %

± 0.5 %; ± 1.0 %

Notes

(1)

Whichever is lower

(2)

Tighter performances are available. Please contact application engineering

foil@vishaypg.com

* Pb containing materials are not RoHS compliant, exemptions may apply

Document Number: 63094

Revision: 23-Mar-10

For any questions, contact:

foil@vishaypg.com

www.foilresistors.com

TERMINATIONS



Two lead (Pb)-free options are available:

gold plated or tin plated



Tin/lead plated

APPLICATIONS



Military



Medical



Automatic test equipment (ATE)



Airborne (in heads-up display

systems)



High precision instrumentation



Electron beam recording equipment



Electron microscopes



Current sensing applications



Forced balance electronic scales



Applications that require superior frequency stability

POWER RATING

at + 70 °C

(1)

0.5 W on FR4 PCB

MAXIMUM

CURRENT

(1)

Legal Disclaimer Notice

Vishay Precision Group, Inc.

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf

(collectively, “VPG”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in

any other disclosure relating to any product.

The product specifications do not expand or otherwise modify VPG’s terms and conditions of purchase, including but

not limited to, the warranty expressed therein.

VPG makes no warranty, representation or guarantee other than as set forth in the terms and conditions of purchase.

To the maximum extent permitted by applicable law, VPG disclaims (i) any and all liability arising out of the

application or use of any product, (ii) any and all liability, including without limitation special, consequential or

incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose,

non-infringement and merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different applications and

performance may vary over time. Statements regarding the suitability of products for certain types of applications

are based on VPG’s knowledge of typical requirements that are often placed on VPG products. It is the customer’s

responsibility to validate that a particular product with the properties described in the product specification is suitable for

use in a particular application. You should ensure you have the current version of the relevant information by contacting

VPG prior to performing installation or use of the product, such as on our website at vpgsensors.com.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by any

conduct of VPG.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise

expressly indicated. Customers using or selling VPG products not expressly indicated for use in such applications do

so entirely at their own risk and agree to fully indemnify VPG for any damages arising or resulting from such use or sale.

Please contact authorized VPG personnel to obtain written terms and conditions regarding products designed for such

applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 15-Jul-2014

www.vpgsensors.com
