TNPU1206374RAZEN00 datasheet, PDF

Datasheet> All Categories > Passive components> TNPU1206374RAZEN00

Preview

TNPU1206374RAZEN00: Descriptionres 374 ohm 1/4W 0.05% 1206; CategoryPassive components; File Size113KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet View All

TNPU1206374RAZEN00 Overview

res 374 ohm 1/4W 0.05% 1206

Preview

Download Datasheet

View All

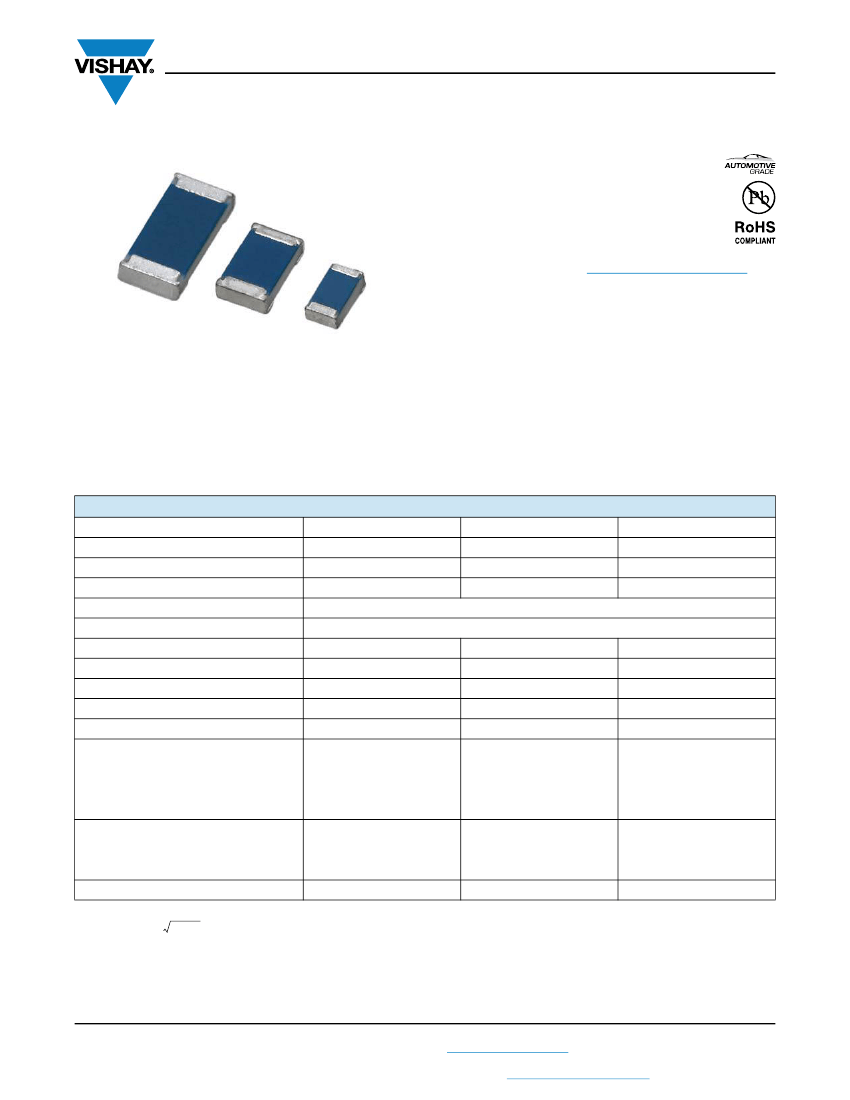

TNPU e3

www.vishay.com

Vishay Draloric

Ultra Precision Thin Film Chip Resistors

FEATURES

• Low temperature coefficient and

tolerances (± 0.02 %; ± 5 ppm/K)

• AEC-Q200 qualified

• Material categorization: For definitions of

compliance please see

www.vishay.com/doc?99912

tight

• Waste gas resistance verified by ASTM B 809

APPLICATIONS

• Industrial equipment

• Telecommunication

• Medical equipment

TNPU e3 ultra precision thin film flat chip resistors combine

the proven reliability of TNPW e3 products with a most

advanced level of precision and stability. This unique

combination makes the product perfectly suited for all

applications with outstanding requirements towards size,

reliable precision and stability.

• Instrumentation

• Test and measuring equipment

• Automotive

STANDARD ELECTRICAL SPECIFICATIONS

TNPU0603 e3

Imperial size

Metric size code

Resistance range

Resistance tolerance

Temperature coefficient

Climatic category (LCT/UCT/days)

Rated dissipation,

70 (1)

Operating voltage,

max.

AC/DC

Permissible film temperature,



F max.

Thermal resistance

(2)

Max. resistance change at

; |R/R|

1000 h

8000 h

225 000 h

Insulation voltage:

1 min;

ins

Continuous

FIT

observed

100 V

75 V



0.1 x 10

-9

200 V

75 V



0.1 x 10

-9

300 V

75 V



0.1 x 10

-9



0.05 %



0.10 %



0.30 %



0.05 %



0.10 %



0.30 %



0.05 %



0.10 %



0.30 %

55/125/56

0.1 W

75 V

125 °C

550 K/W

0603

RR1608M

100



to 100 k

TNPU0805 e3

0805

RR2012M

100



to 332 k

± 0.1 %; ± 0.05 %; ± 0.02 %

(3)

± 10 ppm/K; ± 5 ppm/K

55/125/56

0.125 W

150 V

125 °C

440 K/W

55/125/56

0.25 W

200 V

125 °C

220 K/W

TNPU1206 e3

1206

RR3216M

100



to 511 k

Notes

(1)

Rated voltage

. The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat

flow support of the printed-circuit board (thermal resistance). The rated dissipation applies only if the permitted film temperature is not

exceeded.

(2)

Measuring conditions in accordance with EN 140401-801.

(3)

Tolerance ± 0.02 % is available on request

Revision: 04-Nov-13

Document Number: 28779

For technical questions, contact:

thinfilmchip@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
