CRA06E083130KJTA Overview

res array 130k ohm 4 res 1206

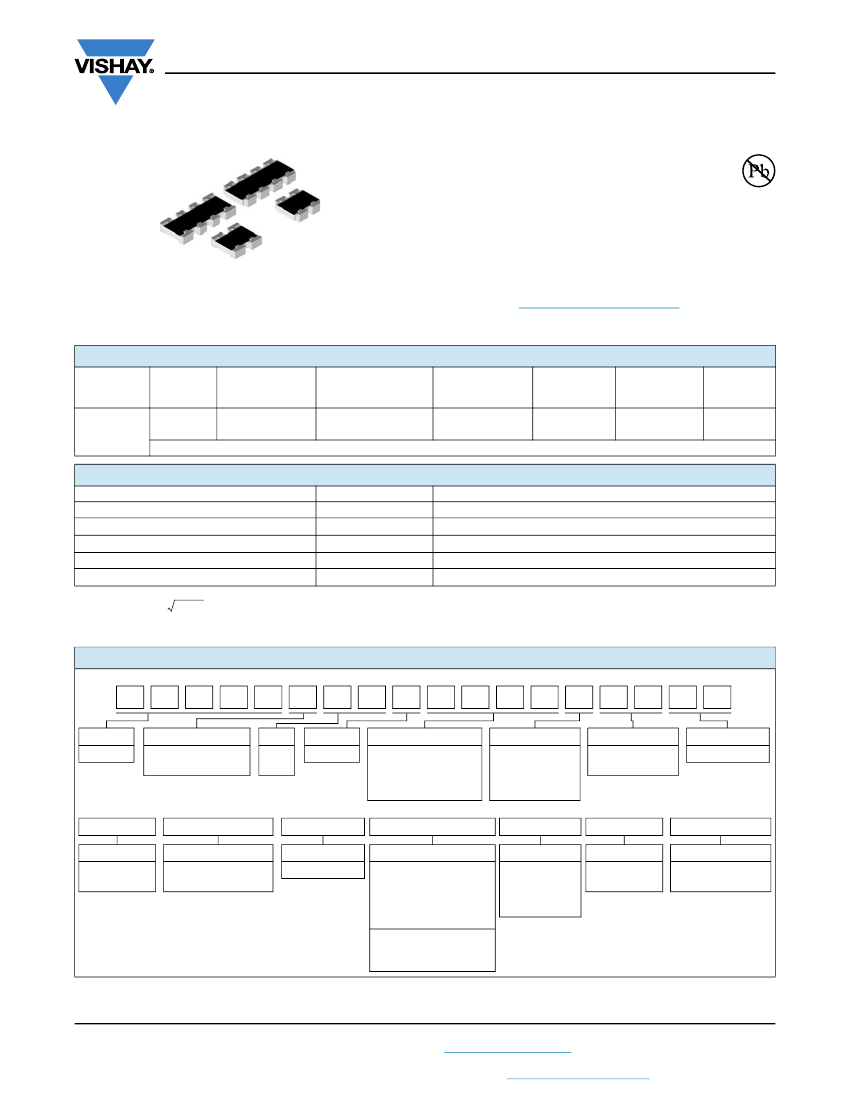

CRA06E, CRA06S
www.vishay.com
Vishay
Thick Film Chip Resistor Array
FEATURES
• Convex terminal array available with either
scalloped corners (E version) or square corners
(S version)
• Wide ohmic range: 10
to 1 M
• 4 or 8 terminal package with isolated resistors
CRA06E and CRA06S Thick Film resistor arrays are
constructed on a high grade ceramic body with convex
terminations. A small package enables the design of high
density circuits. The single component reduces board
space, component counts and assembly costs.
• AEC-Q200 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
CIRCUIT
03
POWER RATING
P
70
W
0.063
LIMITING ELEMENT
VOLTAGE MAX.
V
50
TEMPERATURE
COEFFICIENT
± ppm/K
100
200
TOLERANCE
±%
1
2; 5
RESISTANCE
RANGE
10R to 1M
SERIES
E24; E96
E24
CRA06E
CRA06S
Zero-Ohm-Resistor:
R
max.
= 50 m,
I
max.
= 1 A
TECHNICAL SPECIFICATIONS
PARAMETER
Rated dissipation at 70 °C
(1)
Limiting element voltage
(2)
Insulation voltage (1 min)
Category temperature range
Insulation resistance
UNIT
W per element
V
V
DC/AC PEAK
°C
CRA06E AND CRA06S
0.063
50
100
-55 to +155
> 10
9
Notes
(1)
Rated voltage:
P
x
R
(2)
The power dissipation on the resistor generates a temperature rise against the local ambient, depending on the heat flow support of the
printed-circuit board (thermal resistance). The rates dissipation applies only if the permitted film temperature of 155 °C is not exceed
PART NUMBER AND PRODUCT DESCRIPTION
Part Number: CRA06S08347K0JTA
(1)
C
MODEL
CRA06
R
A
0
6
PIN
04
08
S
0
CIRCUIT
3
= 03
8
3
4
7
K
0
J
T
A
SPECIAL
Up to 2 digits
TERMINAL STYLE
S
E
VALUE
R
= decimal
K
= thousand
M
= million
0000
= 0
jumper
473
RESISTANCE VALUE
1R0
= 1
10R
= 10
47K
= 47 k
1M0
= 1 M
0R0
= jumper
First two digits (3 for
1 %) are significant. Last
digit is the multiplier
TOLERANCE
F
=±1%
G
=±2%
J
=±5%
Z
= 0
jumper
J
TOLERANCE
F
=±1%
G
=±2%
J
=±5%
Z
= 0
jumper
PACKAGING
(2)
TA
TC
Product Description: CRA06S 08 03 -05 473 J RT1 e3
CRA06S
MODEL
CRA06E
CRA06S
08
TERMINAL COUNT
04
08
03
CIRCUIT TYPE
03
RT1
PACKAGING
RT1
RT6
e3
LEAD (Pb)-FREE
e3
= pure tin
termination finish
Notes
(1)
Preferred way for ordering products is by use of the PART NUMBER
(2)
Please refer to table PACKAGING, see next page
Revison: 28-Feb-17
Document Number: 31002
1
For technical questions, contact:
thickfilmchip@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
