DR340-2-682 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DR340-2-682

DR340-2-682: DescriptionGeneral Purpose Inductor, 6.8uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size103KB，1 Pages; ManufacturerDatatronic; Environmental Compliance; Related ProductsFound1parts with similar functions to DR340-2-682

Download Datasheet Parametric View All

DR340-2-682 Overview

General Purpose Inductor, 6.8uH, 20%, 1 Element, SMD, ROHS COMPLIANT

DR340-2-682 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.023 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	DR340-2
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Maximum rated current	4.9 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

August 18, 2009

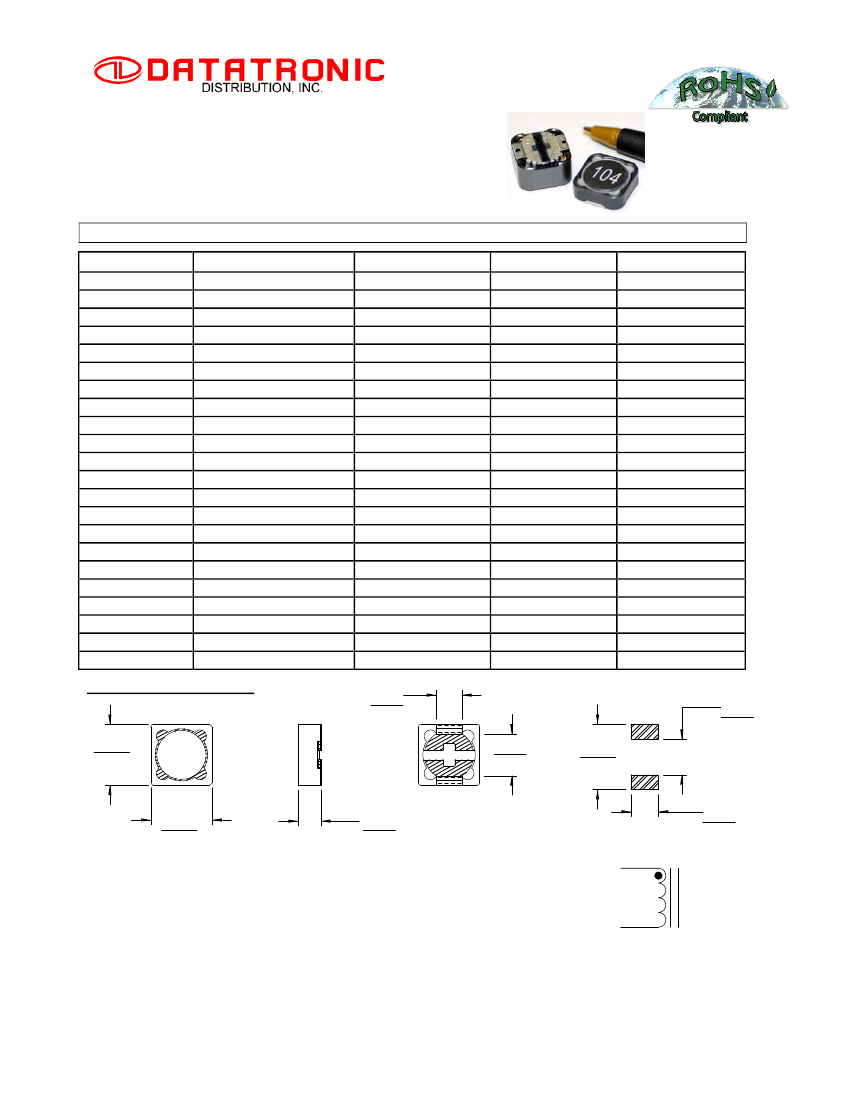

SHIELDED POWER INDUCTOR DR340-2 SERIES

Features



Maximum Height: 4.50mm

Footprint: 12mm x 12mm Max.

Inductance Range from 3.9µH to 330µH

Non-RoHS Versions are Available

(Note 5)

OPERATING TEMPERATURE -20°C to +80°C

Test Frequency

100kHz

1kHz

ELECTRICAL SPECIFICATIONS AT 25°C

Part Number

DR340-2-392

DR340-2-472

DR340-2-682

DR340-2-103

DR340-2-123

DR340-2-153

DR340-2-183

DR340-2-223

DR340-2-273

DR340-2-333

DR340-2-393

DR340-2-473

DR340-2-563

DR340-2-683

DR340-2-823

DR340-2-104

DR340-2-124

DR340-2-154

DR340-2-184

DR340-2-224

DR340-2-274

DR340-2-334

Inductance (µH) ± 20%

3.9

4.7

6.8

100

120

150

180

220

270

330

DCR (Ω) Max.

0.015

0.018

0.023

0.028

0.038

0.050

0.057

0.066

0.080

0.097

0.132

0.150

0.190

0.220

0.260

0.308

0.380

0.530

0.620

0.700

0.876

0.990

IDC (A) Max.

6.5

5.7

4.9

4.5

4.0

3.2

3.1

2.9

2.8

2.7

2.1

1.9

1.8

1.5

1.3

1.2

1.1

0.95

0.85

0.8

0.6

0.5

MECHANICAL OUTLINES

.472

12,00

.197

5,00

.311

7,90

.275

7,00

.504

12,80

.212

5,40

XXX

.472

12,00

.177 Max.

4,50

NOTES:

1. Dimensions are shown in inches/millimeters

2. Unless otherwise specified, tolerance = Inches: ±0.012

= Millimeters: ±0,30

3. IDC MAX based on the inductance being 75% of its initial value

4. Tape & reel quantity, 500 pcs/reel

5. For non-RoHS parts replace the DR prefix with 42- (e.g. DR340-2 becomes 42-340-2)

6. Terminal finish is compliant to RoHS requirements

Solder in accordance with J-STD-020D

SCHEMATIC

DATATRONIC:

28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Fax: 951-928-7701 Email: ddisales@datatronics.com

499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice.
