53505350: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size298KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

53505350 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.2 inch Pitch, Solder Terminal, Locking, Receptacle

53505350 Parametric

Parameter Name	Attribute value
Objectid	304374404
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.407 inch
subject depth	0.483 inch
body length	1.01 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYETHYLENE
Plug contact pitch	0.2 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL
Terminal length	0.14 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	5

Preview

Download Datasheet

View All

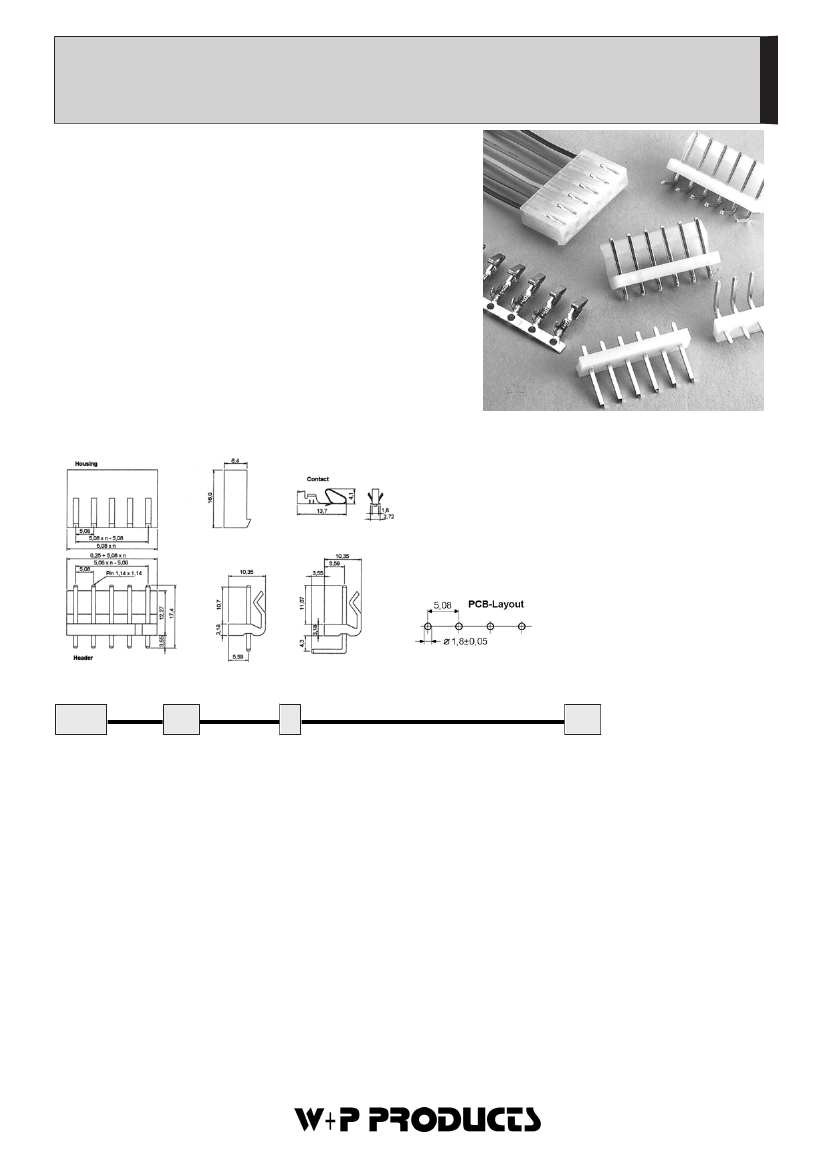

535

Stift-/Buchsenleisten - Crimp-Rast-System - RM 5,08mm

Friction Lock Header and Crimp-Housing - Pitch 5,08mm

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Messing

Contact Material

Brass

Aderquerschnitt

AWG 18 ... 24

Applicable wire Gauge

AWG 18 ... 24

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1500V

Test Voltage

1500V

Nennspannung

250V

AC/DC

max.

Voltage Rating

250V

AC/DC

max.

Nennstrom

Current Rating

Temperaturbereich

-25°C ... +85°C

Temperature Range

-25°C ... +85°C

Verarbeitung

Wellenlötverfahren; weitere Informationen in Kapitel T

Processing

Wave soldering, detailed information in ch. T

Series

Contacts

Type

Plating

535

02-20

Buchsengehäuse

Housing

Buchsenkontakte

Crimp contacts

Stiftleiste gerade

Straight pin header

Stiftleiste gewinkelt

Right angled pin header

Stiftleiste gerade ohne Verriegelung

Straight pin header w/o Friction Lock

Stiftleiste gewinkelt ohne Verriegelung

Right angled pin header w/o Friction Lock

Verzinnt (Standard)

Tin plated (Standard)

Vergoldet (auf Anfrage)

Gold plated (by request)

keine Angabe bei Gehäusen

Not necessary for housings

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
