200.00MHZXOV91025UCPA datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 200.00MHZXOV91025UCPA

200.00MHZXOV91025UCPA: DescriptionHCMOS Output Clock Oscillator, 200MHz Nom,; CategoryPassive components oscillator; File Size154KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/

Download Datasheet Parametric View All

200.00MHZXOV91025UCPA Overview

HCMOS Output Clock Oscillator, 200MHz Nom,

200.00MHZXOV91025UCPA Parametric

Parameter Name	Attribute value
Objectid	1293614934
Reach Compliance Code	compliant
Other features	POWER-DOWN; ENABLE/DISABLE FUNCTION
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Nominal operating frequency	200 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 2.0mm
longest rise time	0.5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

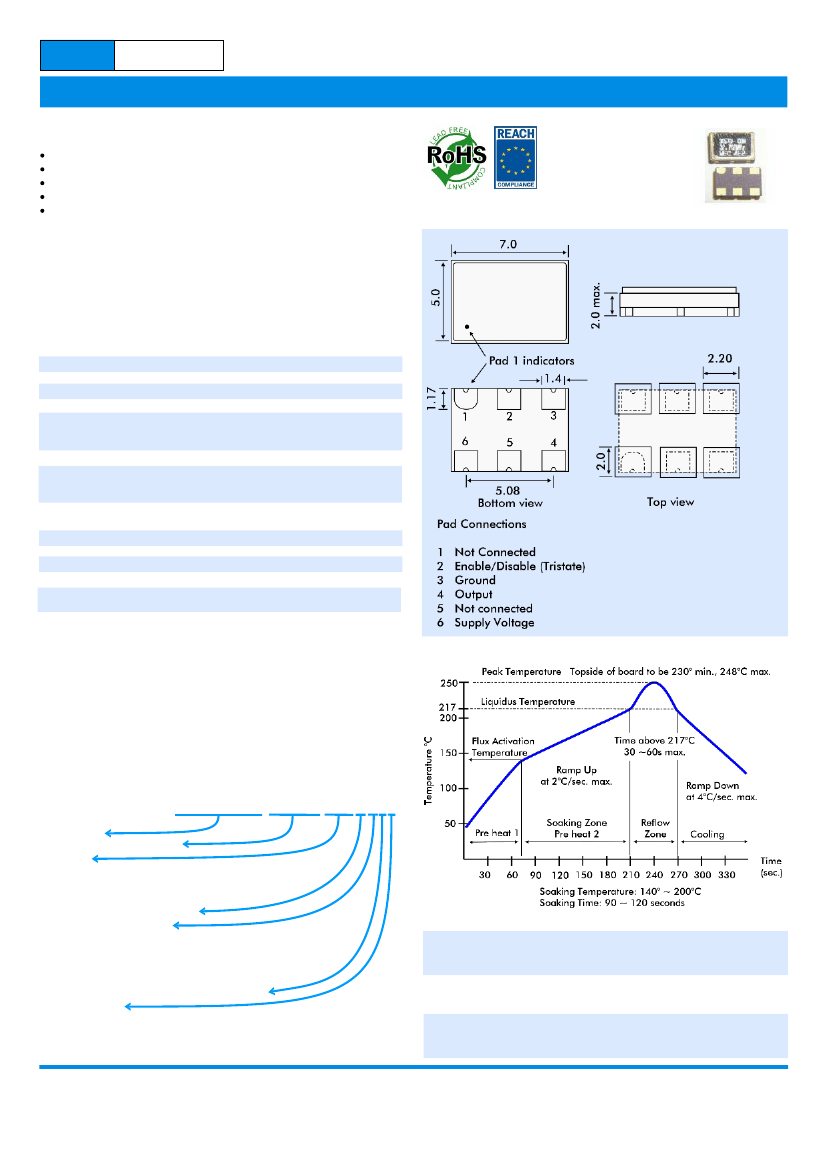

Preview

Download Datasheet

View All

EURO

QUARTZ

FEATURES

Industry-standard 7.0 x 5.0mm package

Frequency Range 125MHz to 200MHz

High frequency range at low cost

Supply voltage 3.3Volts

Tristate function to conserve power

DESCRIPTION

XOV91 series oscillators are designed to provide a high quality

HCMOS output at high frequencies from 125MHz to 200MHz. Phase

and period jitter are kept within low limits. An enable/disable function

is standard and the oscillator may also be specified with a power

down function.

SPECIFICATION

Frequency Range:

Output Logic:

Phase Jitter:

RMS Period Jitter:

Frequency Stability

Commercial:

Industrial:

Input Voltage:

Output Voltage

High '1':

Low '0':

Rise/Fall Time:

Current Consumption:

Load:

Start-up Time:

Duty Cycle:

Input Static

Discharge Protection:

Ageing:

125.01MHz to 200.0MHz

HCMOS

3.5ps typical

4.0ps typical

±25ppm to ±100ppm -10° to +70°C

±25ppm to ±100ppm -40° to +85°C

+3.3VDC ±5%

+2.97V minimum

+0.33 V maximum

0.25ns typical, 0.5ns max.

(20%Vdd to 80%Vdd)

45mA typical (with 15pF load)

15pF

5ms typical, 10ms maximum

50% ±5% (Measured at Vdd-1.3V)

2kV maximum

±2pmm per year maximum

XOV91 Series Oscillators

125MHz to 200MHz

7 x 5mm High Frequency HCMOS Oscillator

OUTLINE & DIMENSIONS

SOLDER TEMPERATURE PROFILE

ABSOLUTE MAXIMUM RATINGS

Permanent damage may occur if units are operated beyond

specified limits.

Supply Voltage:

+4.6 VDC max.

Input Voltage Vi:

Vss-0.5 min., Vdd +0.5V max.

Input Voltage Vo:

Vss-0.5 min., Vdd +0.5V max.

PART NUMBER SCHEDULE

Example:

200.00MHz XOV91050UCTA

Frequency

Series Designation XOV91

Stability

100 = ±100ppm

050 = ±50ppm

025 = ±25ppm

Output Universal (CMOS/TTL)

Operating Temp. Range

C = Commercial

(-10°~70°C)

I = Industrial

(-40°~+85°C)

T=Tristate (enable/disable) P= Powerdown

Supply Voltage

A = 3.3 Volts

TRISTATE FUNCTION

DISABLE

Output is disabled when Pad 1 is taken below

0.3 Vcc referenced to ground

Oscillator continues to run while disabled.

Oscillator is enabled when Pad 1 is taken above

0.7 Vcc referenced to ground.

Available by special request: Oscillator shuts

down when disabled. Longer time to enable.

ENABLE

POWER DOWN

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
