FREQ2MF/20/5/-10+60/SR: DescriptionSeries - Fundamental Quartz Crystal, 12.1MHz Min, 16MHz Max, ROHS COMPLIANT, MINIATURE, HERMETIC SEALED, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size105KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

FREQ2MF/20/5/-10+60/SR Overview

Series - Fundamental Quartz Crystal, 12.1MHz Min, 16MHz Max, ROHS COMPLIANT, MINIATURE, HERMETIC SEALED, CERAMIC, SMD, 4 PIN

FREQ2MF/20/5/-10+60/SR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1076845242
package instruction	ROHS COMPLIANT, MINIATURE, HERMETIC SEALED, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0005%
frequency tolerance	20 ppm
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating frequency	16 MHz
Minimum operating frequency	12.1 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L6.0XB3.5XH1.0 (mm)/L0.236XB0.138XH0.039 (inch)
Series resistance	60 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

EURO

QUARTZ

FEATURES

Miniature size: 6.0mm x 3.5mm height

Tight tolerances available

High shock and vibration resistance

Ideal for PDAs, GPS, PCMCIA and hand-held equipment

MF & MF2 CRYSTALS

6 x 3.5mm SMD, 4 pad or 2 pad

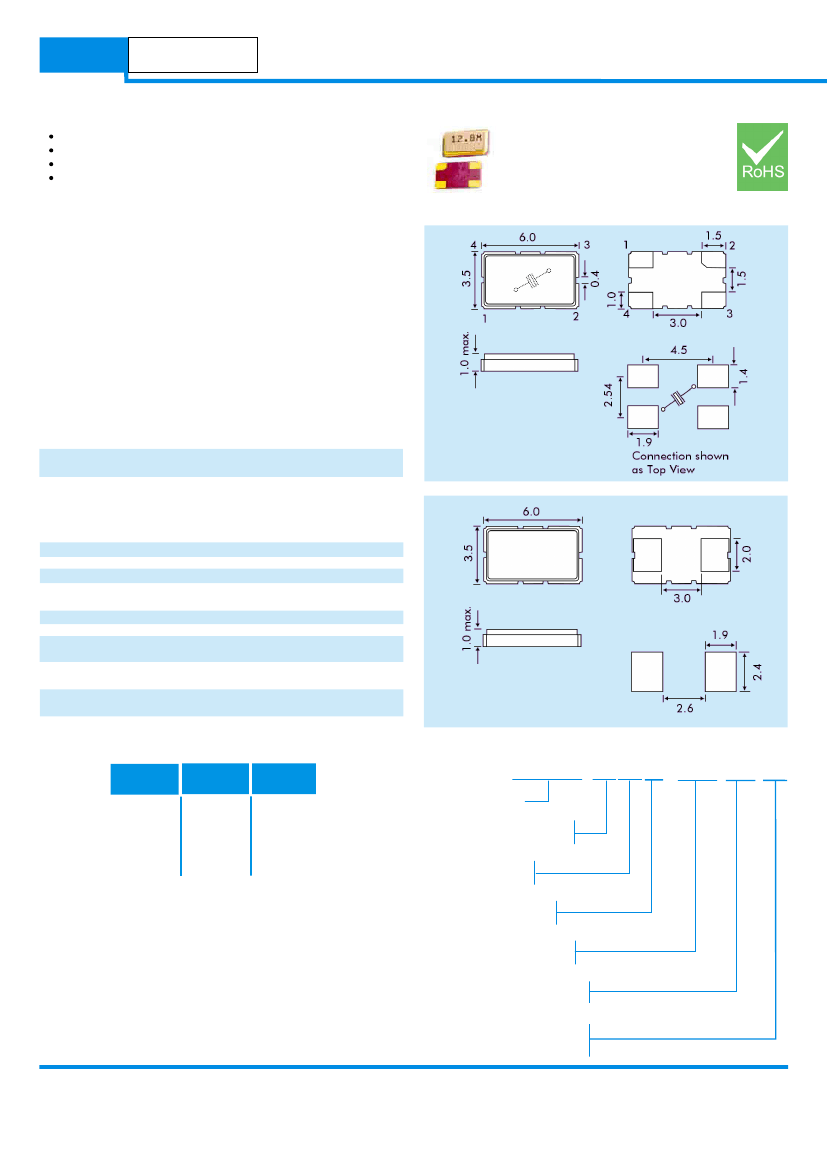

OUTLINE & DIMENSIONS

DESCRIPTION

Miniature surface mount MF crystals incorporate a ceramic substrate

and hermetically-sealed metal lid. The compact size and low mass

with a high-specification crystal make MF crystals ideal for high

density applications as well as hand-held and communications

equipment.

SPECIFICATION

Frequency Range

AT-Cut Fundamental:

AT-Cut 3rd Overtone:

Calibration Tolerance at 25ºC*:

Frequency stability

-10° to +60°C

-20° to +70°C

-40° to +90°C

-55 to +125°C

Storage Temperature:

Equivalent Series Resistance:

Shunt Capacitance (C0):

Load Capacitance (CL):

Ageing:

Drive level:

Reflow Soldering:

Package:

Packaging:

10.0MHz to 50.0MHz

30.0MHz to 125.0MHz

from ±5ppm

(±10, ±20 or ±30ppm standard)

from ±5ppm

from ±10ppm

from ±15ppm

from ±20ppm

-55°~+105°C

See table

2pF to 4pF typical, 7pF maximum

Series or from 8pF to 32pF

(Customer

specified CL)

<±3ppm per year at +25°C

100

maximum

10s maximum, 260°C twice

or 180s at 230°C, once.

Ceramic base, metal lid,

Hermetic seal

16mm EIA tape and reel

1000 pieces per reel

MF2

EQUIVALENT SERIES RESISTANCE

Frequency Crystal Cut/

ESR

Range MHz

Mode

Ohms Max.

10.0 ~ 12.0

AT Fund.

12.1 ~ 16.0

AT Fund.

16.1 ~ 50.0

AT Fund.

30.0 ~ 40.0 AT 3rd OT

100

40.1 ~ 50.0 AT 3rd OT

50.1 ~ 125

AT 3rd OT

PART NUMBER GENERATION

Example:

12.000MHz MF/20/30/-10+60/18pF/60R

Nominal Frequency

Package

(MF = 4 pad, MF2 = 2 pad

Calibration tolerance

at 25°C (±ppm)

Temperature Stability

over temp. range (±ppm)

Operating Temp. Range (°C)

(Lower and upper limits)

Load Capacitance

(Either SR for series or CL in pF)

Equivalent Series Resistance

(Optional - use when special

value is required)

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
