FZ2ER1NNNSNM008 datasheet, PDF

Datasheet> All Categories > The connector> The connector> FZ2ER1NNNSNM008

FZ2ER1NNNSNM008: DescriptionFiber Optic Connector; CategoryThe connector The connector; File Size192KB，2 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric View All

FZ2ER1NNNSNM008 Overview

Fiber Optic Connector

FZ2ER1NNNSNM008 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7058941355
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	FIBER OPTIC CONNECTOR

Preview

Download Datasheet

View All

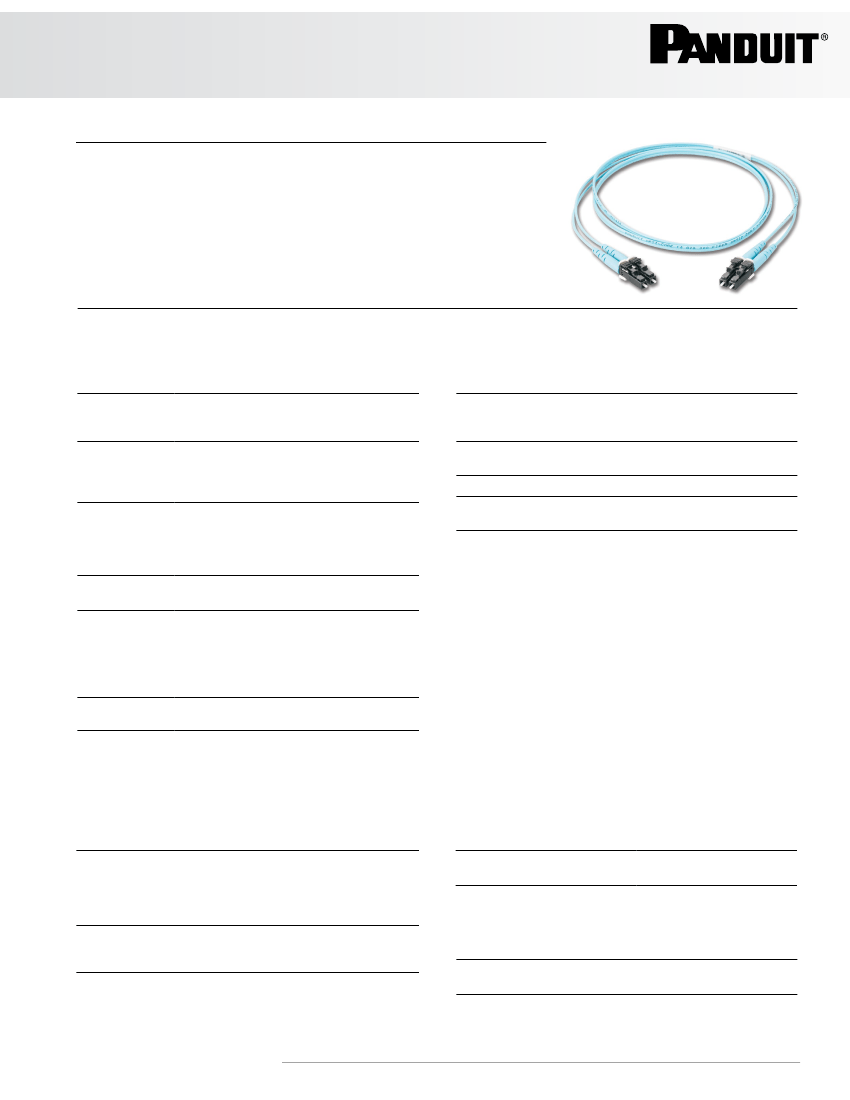

Opti-Core

Fiber Optic Patch Cords

and Pigtails

technical information

Fiber optic patch cords and pigtails provide interconnect and cross-connect of

applications over installations in entrance facilities, telecommunications rooms, data

centers and at the desk. Patch cords support network applications in main, horizontal

and equipment distribution areas and are available in riser (OFNR), and low smoke

zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances.

Pre-terminated fiber optic pigtails support fusion splice field termination applications.

Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1, or OS1/

OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high

speed Fibre Channel.

SPECIFICATION SHEET

application

Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the

desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and

equipment distribution areas.

construction

Fiber count:

Simplex (1-fiber) jacketed

Duplex (2-fiber) jacketed zipcord

Tight buffered

Cable

Riser (OFNR)

jacket ratings:

Low Smoke Zero Halogen (LSZH) per:

IEC 60332-1-2, IEC 60332-3-24, IEC

60754-1, IEC 60754-2, IEC 61034-2

Fiber types:

Singlemode: OS1/OS2 9/125µm

Multimode: OM1 62.5/125µm

OM2 50/125µm

OM3 50/125µm

OM4 50/125µm

Simplex or duplex LC, SC

OS1/OS2:

OM1:

OM2:

OM3:

OM4:

Buffered fiber (pigtail):

Simplex or duplex LC, SC

Yellow

Orange

Aqua

Blue

physical properties

Cable outside diameter (OD):

1.6mm duplex

3mm simplex

900 micron

Connector cable retention:

Connector durability:

Bend radius, minimum:

50N @ 0°C

19.4N @ 90°C

500 cycles

1.6mm:

3mm:

16mm

29mm

Connector

types end ‘A’:

Jacket color:

Connector

types end ‘B’:

Note: For hybrid cords, the SC connector is always on End B.

optical properties

Connector

insertion loss:

0.25dB max. (Multimode - Standard IL)

0.15db max. (Multimode - Optimized IL)

0.10db max. (Multimode - Ultra IL)

0.35dB max. (LC singlemode)

0.50dB max. (SC singlemode)

20dB min. (OM1 and OM2)

26dB min. (OM3 and OM4)

55dB min. (OS1/OS2)

environmental properties

Storage and

shipping temperature:

-40°C to 70°C

Riser:

-20°C to 70°C

Plenum:

0°C to 60°C

Operating and

installation temperature:

Connector

return loss:

standards

Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3,

TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)

Restriction of Hazardous

Substances

(RoHS) Compliance:

All patch cord components

meet the requirements of

Directive 2002/95/EC.
