54LS258J03

Description
Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,
Categorylogic    logic
File Size183KB,4 Pages
ManufacturerRaytheon Company
Websitehttps://www.raytheon.com/
Download Datasheet Parametric View All

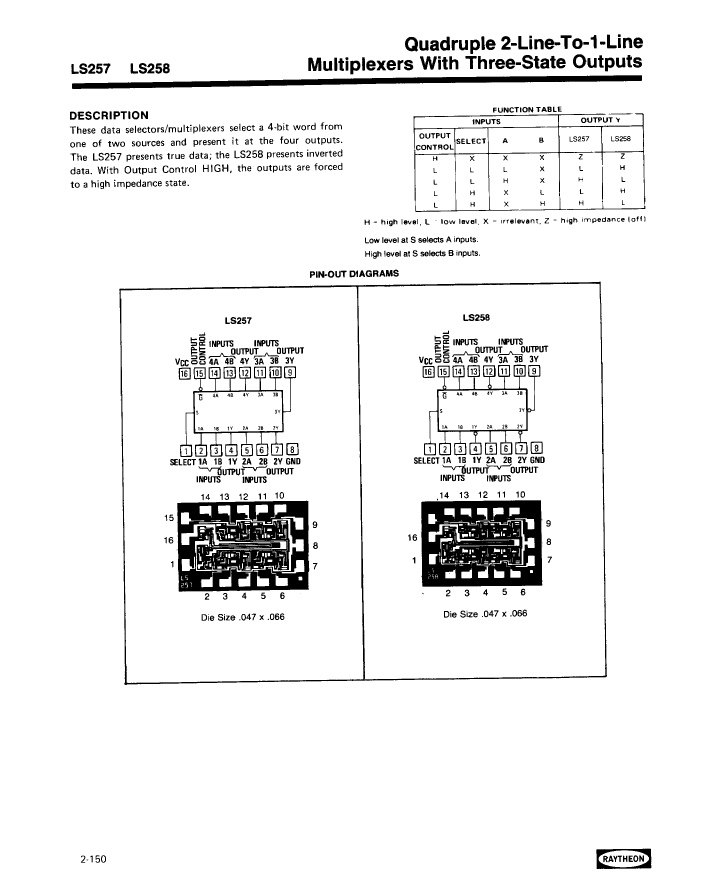

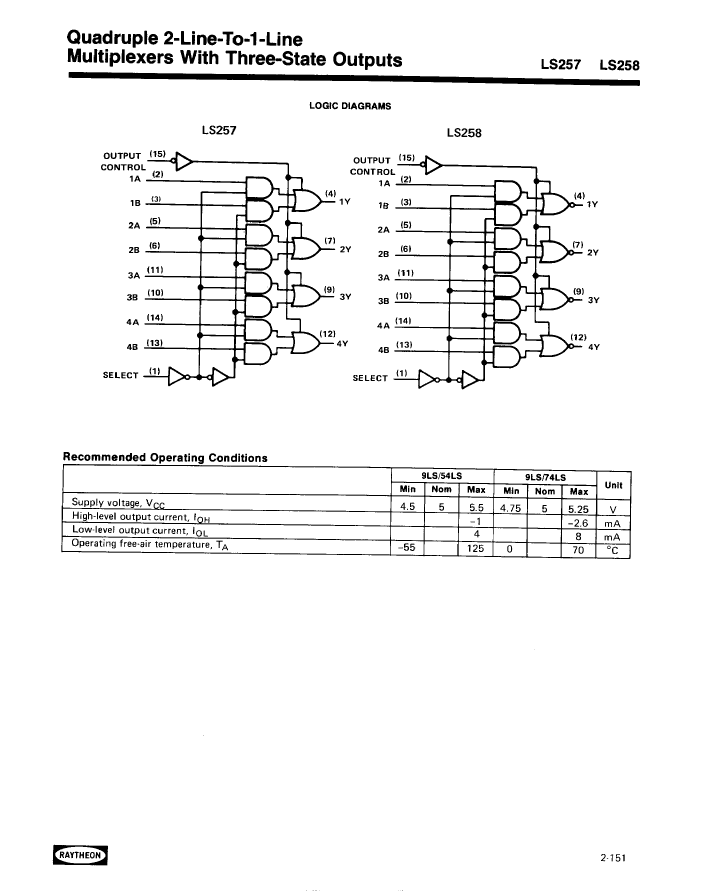

54LS258J03 Overview

Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,

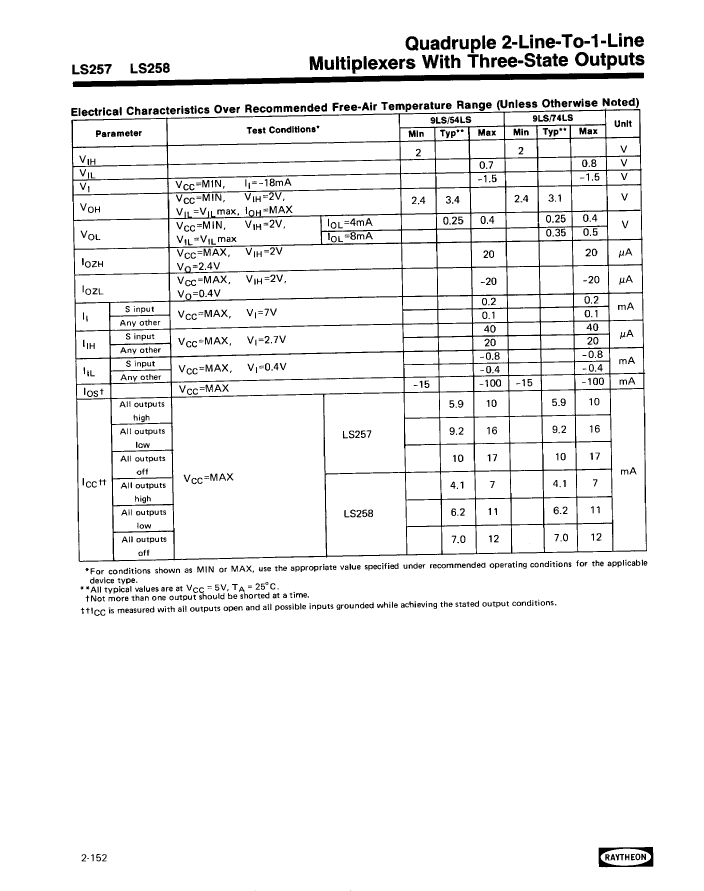

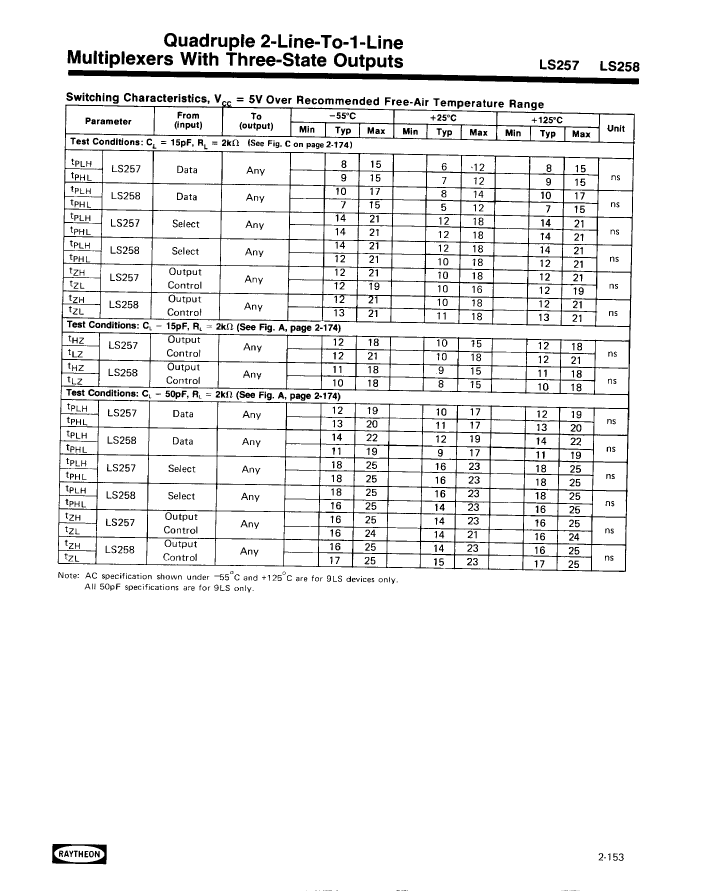

54LS258J03 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid100820256
package instructionDIP, DIP16,.3
Reach Compliance Codeunknown
YTEOL0
JESD-30 codeR-XDIP-T16
JESD-609 codee0
Logic integrated circuit typeMULTIPLEXER
MaximumI(ol)0.004 A
Number of functions4
Number of entries2
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
