337SAK063MSH datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 337SAK063MSH

Preview

337SAK063MSH: DescriptionAluminum Electrolytic Capacitor, Aluminum (wet); CategoryPassive components capacitor; File Size620KB，3 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

337SAK063MSH Overview

Aluminum Electrolytic Capacitor, Aluminum (wet)

337SAK063MSH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1320286497
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
Number of terminals	2

Preview

Download Datasheet

View All

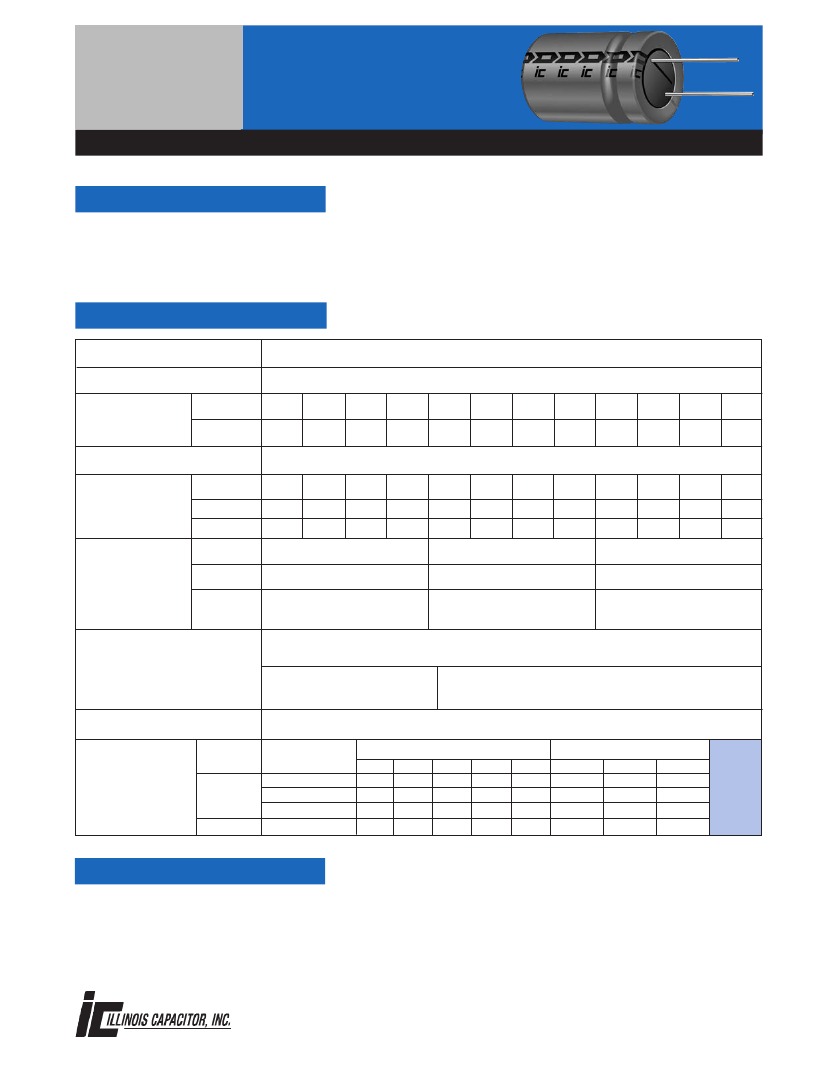

SAK

FEATURES

+85°C Low

Profile Radial

Lead Aluminum

Electrolytic Capacitors

For all general purpose applications

I

Low Profile

I

Capacitance range: 1 µF to 10,000 µF

I

Voltage range: 6.3 WVDC to 400 WVDC

SPECIFICATIONS

Capacitance Tolerance

Operating Temperature Range

Dissipation Factor

120Hz, 20°C

WVDC

tan

δ

6.3

.28

±20% at 120Hz, 20°C

-40°C to +85°C

10

.24

16

.20

25

.16

35

.14

50

.12

63

.10

100

.08

160

.20

200

.20

250

.20

400

.25

Note:

For above D.F. specifications, add .02 for every 1,000 µf above 1,000 µf

Impedance Ratio

(Max.) @120Hz

WVDC

-25/20°C

-40/20°C

WVDC

6.3

5

12

10

4

10

16

3

8

25

2

5

35

2

4

50

2

3

63

2

3

100

2

3

160

4

15

200

4

15

250

4

15

400

4

10

≤100WVDC

1 minute

.03 CV or 4 µA

Whichever is greater

≤100WVDC

2 minutes

.01 CV or 3 µA

Whichever is greater

≥

160WVDC

1 minute

.04 CV or 100 µA

Leakage Current

Time

2,000 hours at 85°C with rated WVDC

Capacitors will meet the requirements listed below

Load Life

Capacitance change

Dissipation factor

Leakage current

<20% of initial measured value

<200% of initial specified value

<Initial specified value

Shelf Life

WVDC

Ripple Multipliers

6.3 to 100

160 to 400

Capacitance (µF)

≤47

47<C≤470µF

470<C≤1,000µF

10 to 150µF

1,000 hours at 85°C with no voltage applied.

Units will meet load life specifications.

Temperature(°C)

Frequency(Hz)

60

0.75

0.8

0.85

0.8

120

1.0

300

1.35

1.23

1.1

1.25

1K

1.57

1.32

1.13

1.40

10K

2.0

1.5

1.15

1.60

+105°C

1.0

+85°C

1.3

1.4

+70°C

1.5

1.8

SPECIAL ORDER OPTIONS

•

Special tolerances: ±10% (K), -10% + 30% (Q)

(See pages 33 thru 37)

•

Tape and Reel/Ammo-Pack

•

Cut, Formed, Cut and Formed, and Snap In Leads

®

3757 W. Touhy Ave., Lincolnwood, IL 60712 • (847) 675-1760 • Fax (847) 673-2850 • www.illcap.com

37
