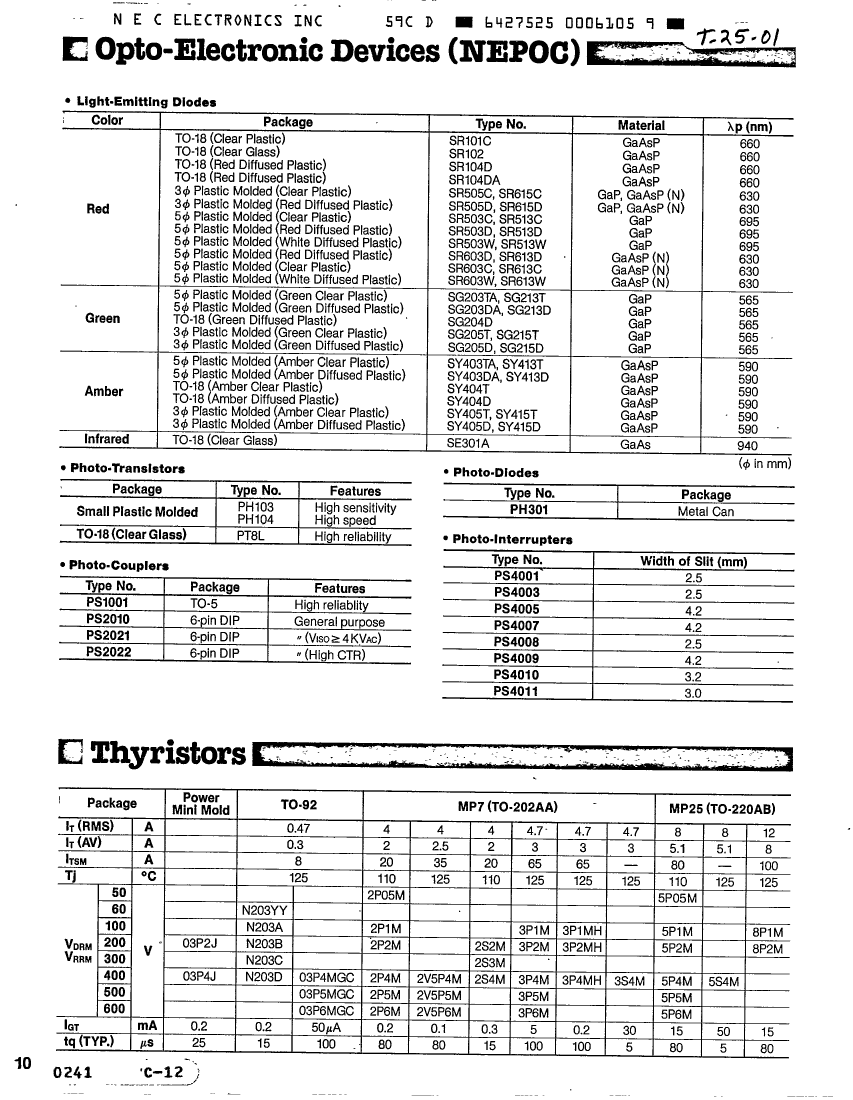

Preview

5P5M: Description8A, 500V, SCR, TO-220AB, PLASTIC PACKAGE-3; CategoryAnalog mixed-signal IC Trigger device; File Size140KB，1 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5P5M Overview

8A, 500V, SCR, TO-220AB, PLASTIC PACKAGE-3

5P5M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	50 µs
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	1.5 V
JESD-609 code	e0
Maximum leakage current	2 mA
On-state non-repetitive peak current	88 A
Maximum on-state current	5000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

5P5M Related Products

	5P5M	2S3M	3P1MH	2V5P6M	2V5P5M	03P6MGC	3P5M	3P2MH	3S4M-AZ
Description	8A, 500V, SCR, TO-220AB, PLASTIC PACKAGE-3	4A, 300V, SCR, PLASTIC PACKAGE-3	4.7A, 100V, SCR, PLASTIC PACKAGE-3	SILICON CONTROLLED RECTIFIER,600V V(DRM),2.5A I(T),TO-202	SILICON CONTROLLED RECTIFIER,500V V(DRM),2.5A I(T),TO-220	SILICON CONTROLLED RECTIFIER,600V V(DRM),800MA I(T),TO-92	4.7A, 500V, SCR, PLASTIC PACKAGE-3	4.7A, 200V, SCR, PLASTIC PACKAGE-3	3S4M-AZ
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	conform to
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC gate trigger current	10 mA	0.3 mA	0.2 mA	0.1 mA	0.1 mA	0.05 mA	5 mA	0.2 mA	30 mA
Maximum leakage current	2 mA	0.1 mA	2 mA	1 mA	1 mA	0.1 mA	2 mA	2 mA	0.1 mA
On-state non-repetitive peak current	88 A	20 A	65 A	45 A	45 A	8 A	65 A	65 A	65 A
Maximum on-state current	5000 A	2000 A	3000 A	2500 A	2500 A	800 A	3000 A	3000 A	3000 A
Maximum operating temperature	125 °C	110 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-45 °C	-40 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C	-45 °C
Off-state repetitive peak voltage	500 V	300 V	100 V	600 V	500 V	600 V	500 V	200 V	400 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Maximum DC gate trigger voltage	1.5 V	0.8 V	0.8 V	0.8 V	0.8 V	-	1.5 V	0.8 V	2 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Base Number Matches	1	1	1	1	1	1	-	-	-
Critical rise rate of minimum off-state voltage	-	10 V/us	3 V/us	10 V/us	10 V/us	10 V/us	20 V/us	3 V/us	100 V/us
