3782-2240-00 datasheet, PDF - EEWORLD Datasheet

3782-2240-00: DescriptionRF Connector Adapter, TNC-OSM, Male-Female, Plug-jack,; CategoryThe connector The connector; File Size77KB，3 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

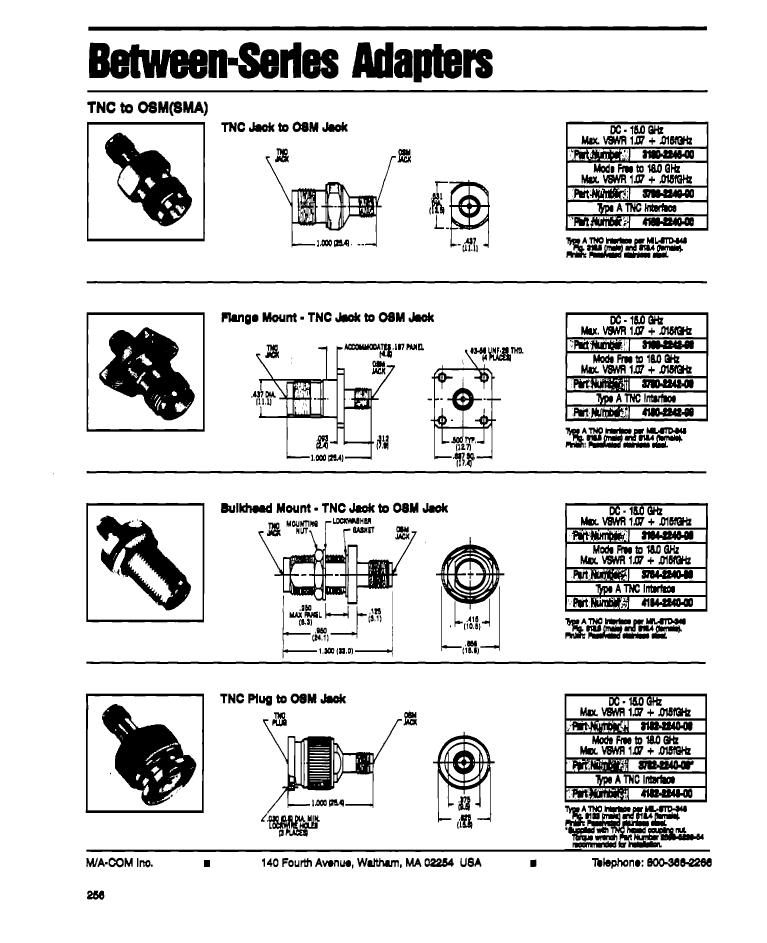

3782-2240-00 Overview

RF Connector Adapter, TNC-OSM, Male-Female, Plug-jack,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Adapter type	TNC-OSM
Body/casing type	PLUG-JACK
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	TFE
MIL compliance	NO
Manufacturer's serial number	3782
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.34
Base Number Matches	1

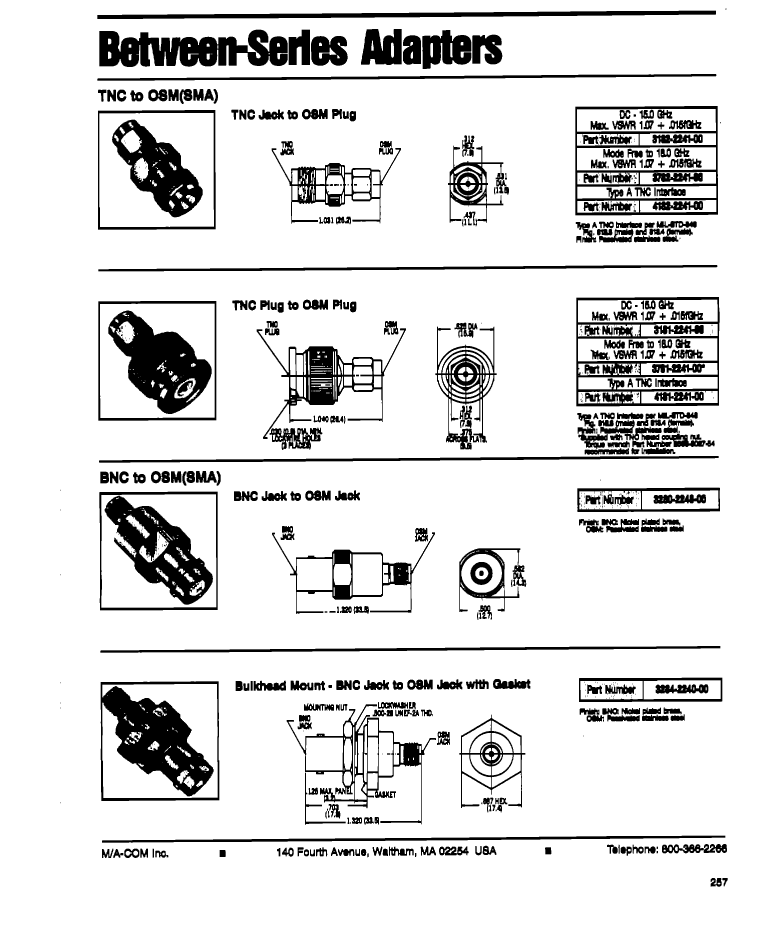

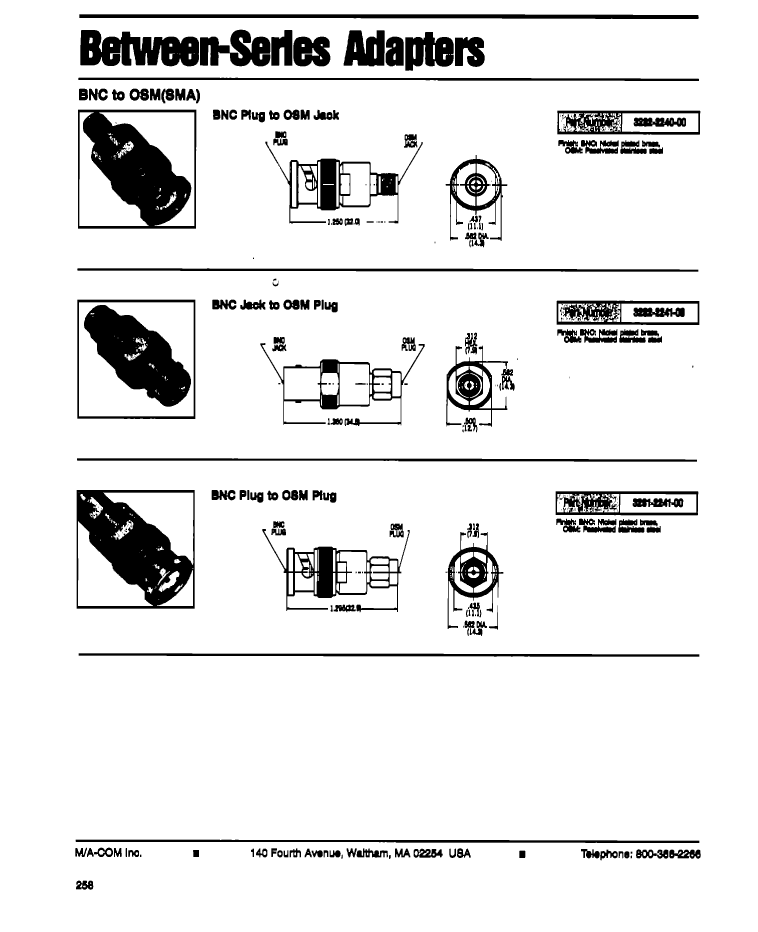

	3782-2240-00	3780-2240-00	3780-2242-00	3781-2241-00
Description	RF Connector Adapter, TNC-OSM, Male-Female, Plug-jack,	RF Connector Adapter, TNC-OSM, Female-Female, Jack-jack,	RF Connector Adapter, TNC-OSM, Panel Mount, Female-Female, Jack-jack,	RF Connector Adapter, TNC-OSM, Male-Male, Plug-plug,
Reach Compliance Code	unknown	unknown	compliant	compliant
Adapter type	TNC-OSM	TNC-OSM	TNC-OSM	TNC-OSM
Body/casing type	PLUG-JACK	JACK-JACK	JACK-JACK	PLUG-PLUG
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	MALE-MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	TFE	TFE	TFE	TFE
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	3782	3780	3780	3781
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	YES	NO
voltage standing wave ratio	1.34	1.34	1.34	1.34
Base Number Matches	1	1	1	1
