E8701-A4-CV-2-N-G datasheet, PDF

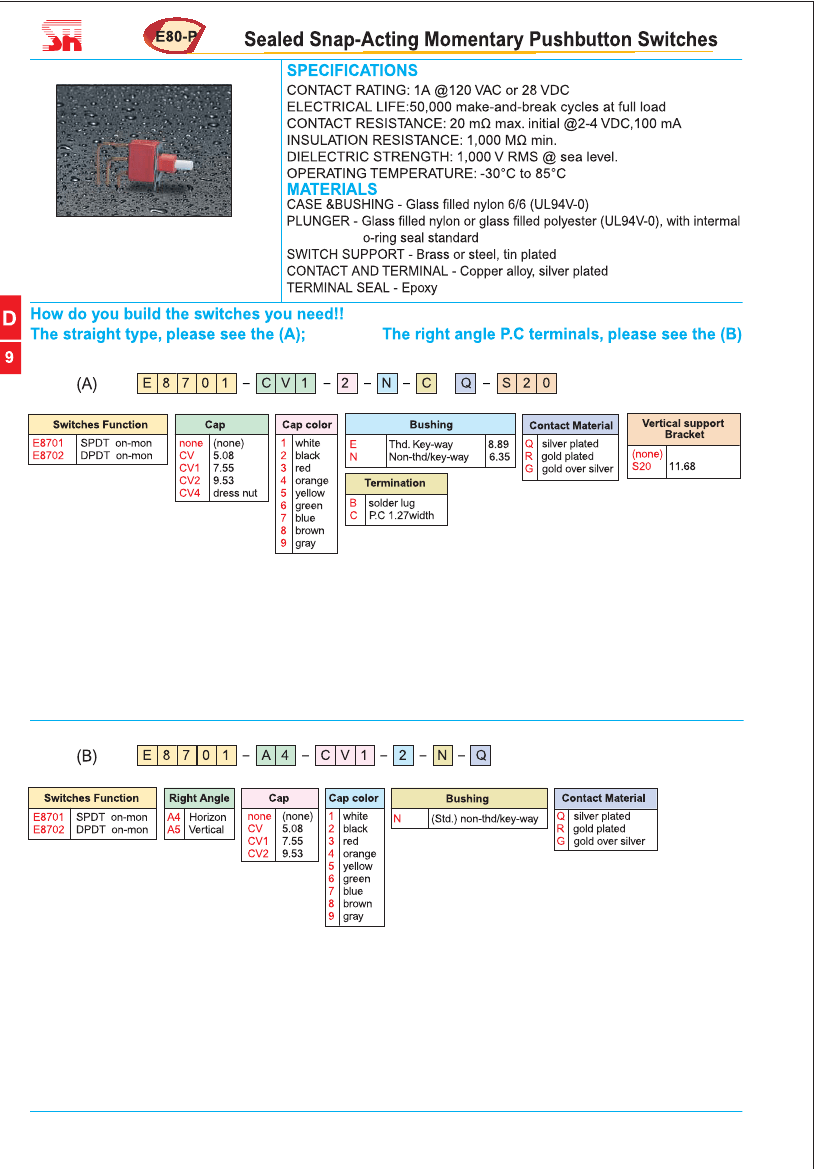

E8701-A4-CV-2-N-G: DescriptionSwitch, SPDT, Momentary, 1A, 28VDC, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size873KB，4 Pages; ManufacturerSalecom Electronics Co., Ltd.

Download Datasheet Parametric View All

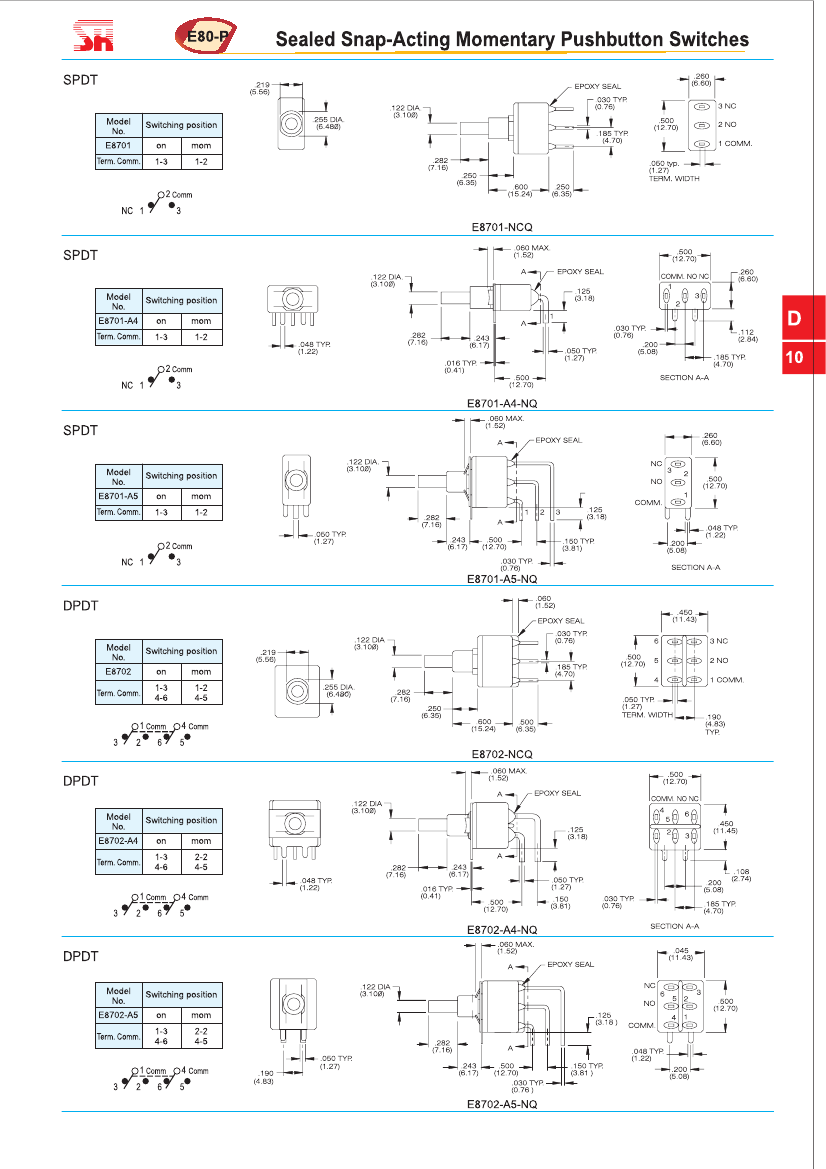

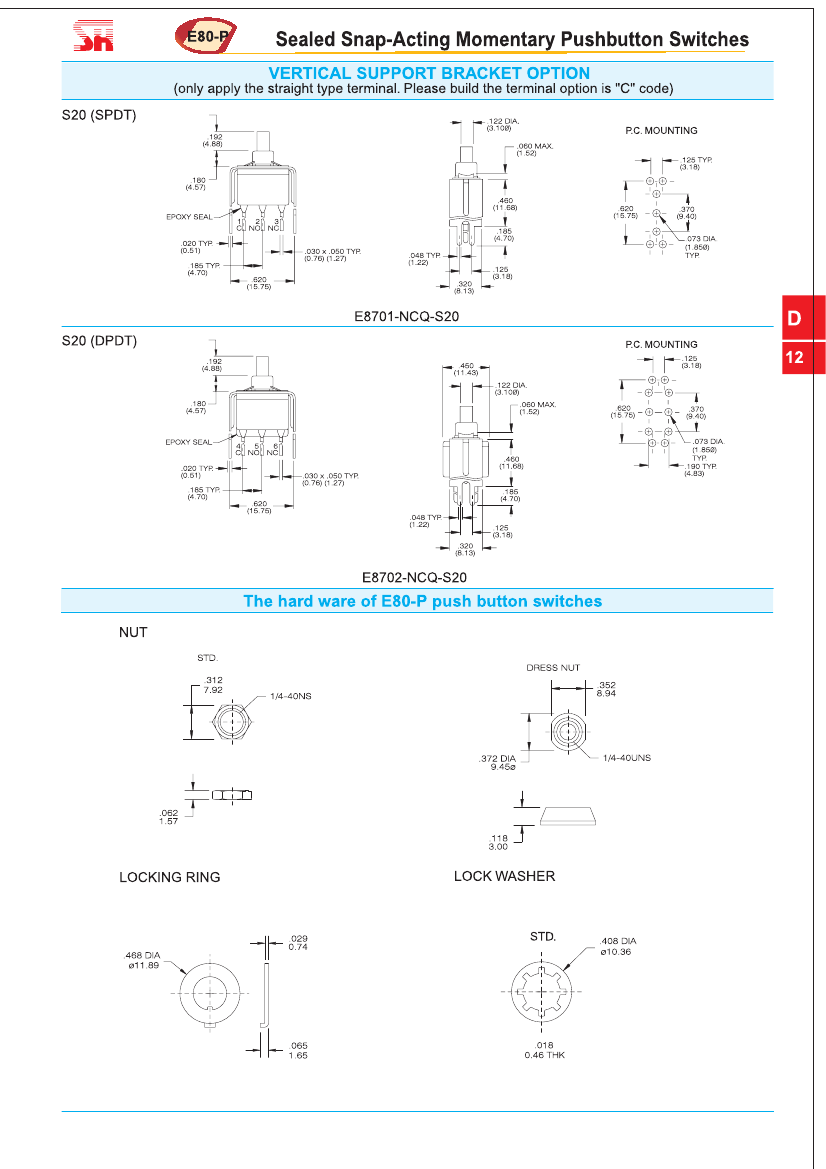

E8701-A4-CV-2-N-G Overview

Switch, SPDT, Momentary, 1A, 28VDC, Through Hole-right Angle

Parameter Name	Attribute value
Objectid	303914442
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle
Actuator color	BLACK
Actuator length	0.282 inch
Actuator type	PUSHBUTTON

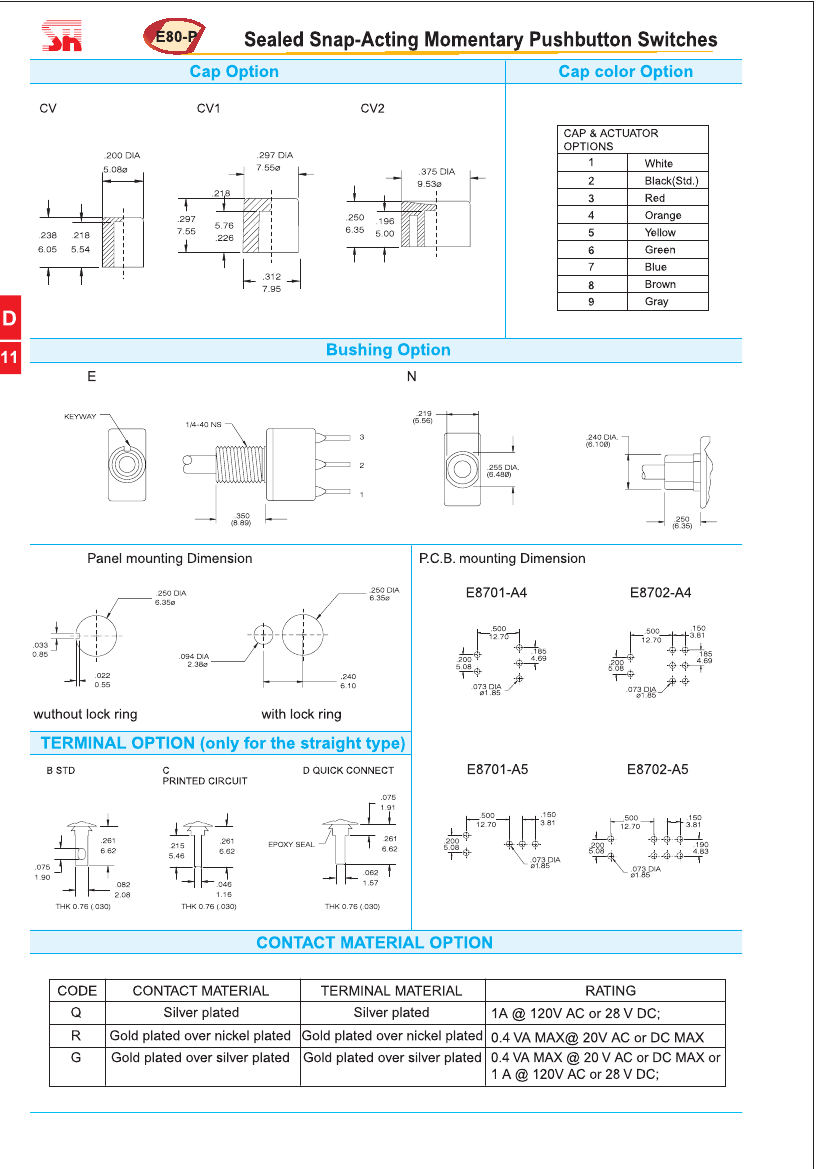

Other features	W/CAP DIA=5.08MM
body width	6.604 mm
body height	13.335 mm
Body length or diameter	12.7 mm
Casing diameter	0.255 inch
Nozzle length	0.25 inch
Casing type	UNTHREADED
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER SILVER
Contact (AC) maximum rated R load	1A@120VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated power R load	0.4VA@20VDC
Contact (DC) maximum rated R load	1A@28VDC
Contact function	ON-(ON)
Contact resistance	0.02 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VDC V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER SILVER
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	5
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Terminal surface	GOLD/NICKEL
Terminal length	0.125 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
