EB15E2H2H-1.024M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB15E2H2H-1.024M

EB15E2H2H-1.024M: DescriptionCMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD); CategoryPassive components oscillator; File Size123KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EB15E2H2H-1.024M Overview

CMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 2.5Vdc 4 Pad 2.5mm x 3.2mm Ceramic Surface Mount (SMD)

EB15E2H2H-1.024M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1286306690
Parts packaging code	SMD 2.5mm x 3.2mm
Contacts	4
Manufacturer packaging code	SMD 2.5mm x 3.2mm
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	EB15E2
Installation features	SURFACE MOUNT
Nominal operating frequency	1.024 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	5 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

EB15E2

Series

• Crystal Clock Oscillators

• LVCMOS Output

• +2.5V Supply Voltage

• Tri-State Output Function

• 4 Pad Ceramic SMD Package

• Low Stand-by Current

• RoHS Compliant (Pb-Free)

ELECTRICAL SPECIFICATIONS

Frequency Range (MHz)

EB15E2

H 0.9

L 3.2

W 2.5

OSCILLATOR

Operating Temperature Range (OTR)

Storage Temperature Range (STR)

Supply Voltage (V

)

Input Current (I

)

Frequency Tolerance/Stability

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time (T

)

Duty Cycle (SYM)

Load Drive Capability (C

LOAD

)

Tri-State Input Voltage

Standby Current

Start Up Time (T

)

RMS Phase Jitter

1.8463, 2.000, 2.048, 2.4576, 3.6864, 4.000, 4.800, 5.000, 6.000, 7.040, 7.159, 7.3728, 8.000,

8.192, 10.000, 11.0592, 12.000, 12.288, 13.000, 13.1072, 13.500, 14.3181, 14.31818, 14.7456,

15.000, 16.000, 16.384, 16.6666, 16.66667, 16.6667, 18.000, 18.432, 19.200, 19.440, 19.6608,

20.000, 22.1184, 22.400, 24.000, 24.5454, 24.576, 25.000, 26.000, 26.2144, 26.973, 27.000,

28.375, 28.63636, 28.636363, 29.4912, 29.500, 30.000, 32.000, 32.768, 33.000, 33.200, 33.330,

33.333, 33.3333, 36.000, 38.400, 40.000, 40.0908, 48.000, 49.0908, 49.152, 50.000, 54.000, or

100.000MHz

-20°C to +70°C

-40°C to +85°C

-55°C to +125°C

2.5V

±5%

1.8463MHz to 9.999MHz

3mA Maximum

10.000MHz to 19.999MHz

4mA Maximum

20.000MHz to 39.999MHz

5mA Maximum

40.000MHz to 50.000MHz

6mA Maximum

50.001MHz to 54.000MHz

7mA Maximum

100.000MHz

12mA Maximum

Inclusive of all conditions: Calibration Tolerance at 25°C,

±100ppm Maximum

Frequency Stability over the Operating Temperature Range,

±50ppm Maximum

Supply Voltage Change, Output Load Change, First Year

±25ppm Maximum

Aging at 25°C, Shock, and Vibration

90% of V

Minimum (I

= -4mA)

10% of V

Maximum (I

= +4mA)

20% to 80% of Waveform, 1.8463MHz to 24MHz

5nSeconds Maximum

20% to 80% of Waveform, 24.001MHz to 50MHz

4nSeconds Maximum

20% to 80% of Waveform, 50.001MHz to 100MHz

3nSeconds Maximum

at 50% of Waveform

50 ±5(%)

15pF Maximum

No Connection

Enables Output

: >80% of V

Enables Output

: <20% of V

Disables Output: High Impedance

Disabled Output: High Impedance

10µA Maximum

10 mSeconds Maximum

= 12kHz to 20MHz

1 pSeconds Maximum

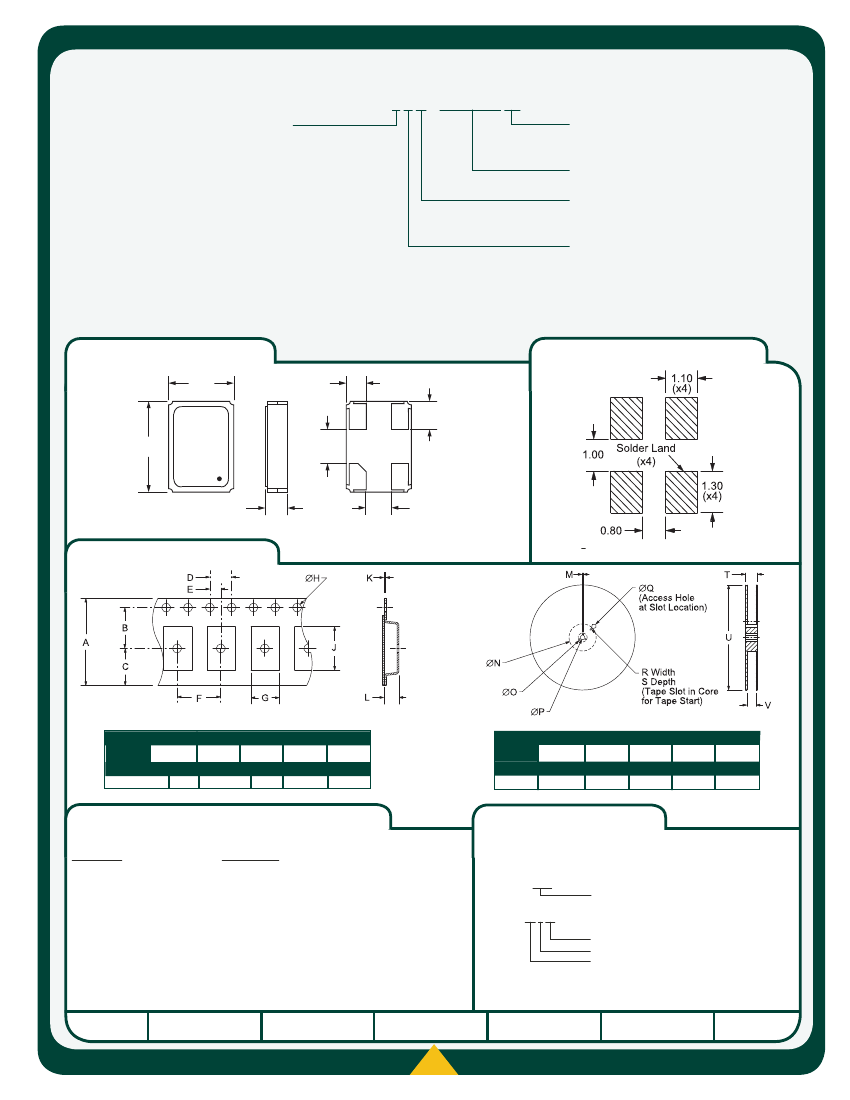

SERIES

PACKAGE

VOLTAGE

CLASS

REV

DATE

MANUFACTURER
