EH2620TTS-32.250MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EH2620TTS-32.250MTR

EH2620TTS-32.250MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT; CategoryPassive components oscillator; File Size774KB，10 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EH2620TTS-32.250MTR Overview

CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT

EH2620TTS-32.250MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7039777619
Reach Compliance Code	compliant

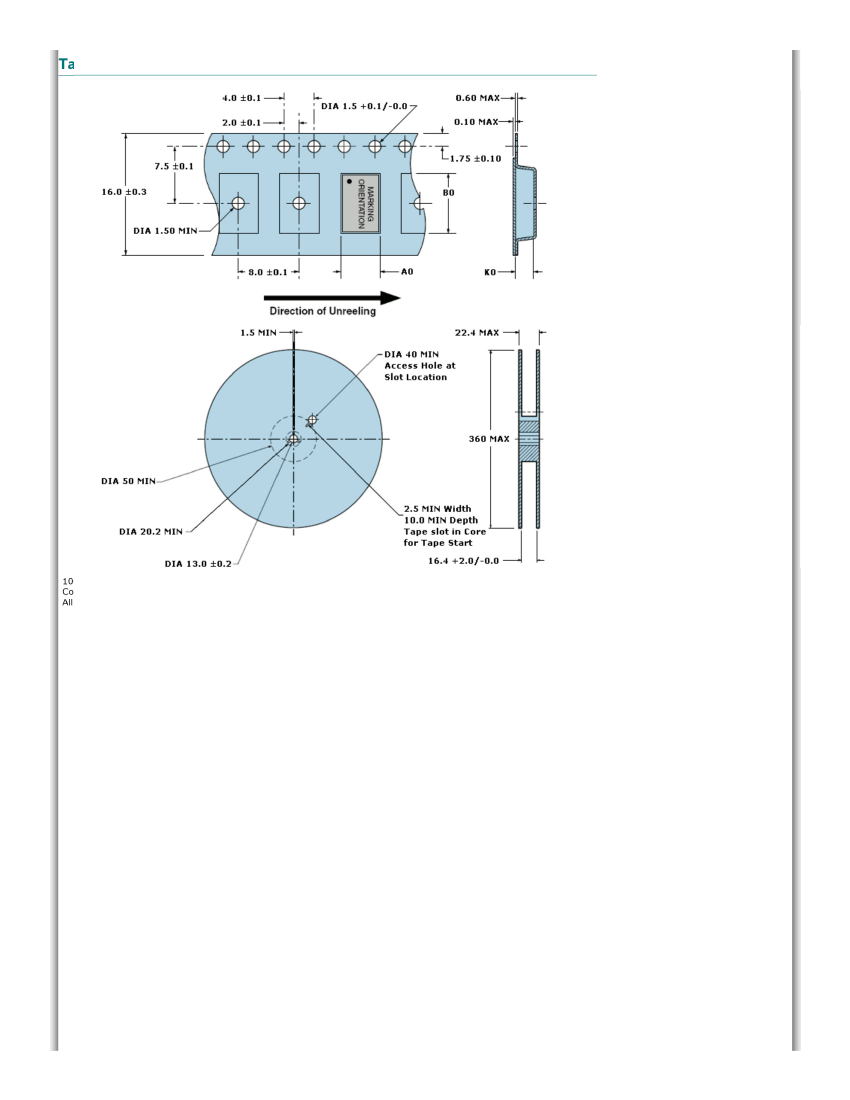

Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 14 INCH
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	32.25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	30 pF

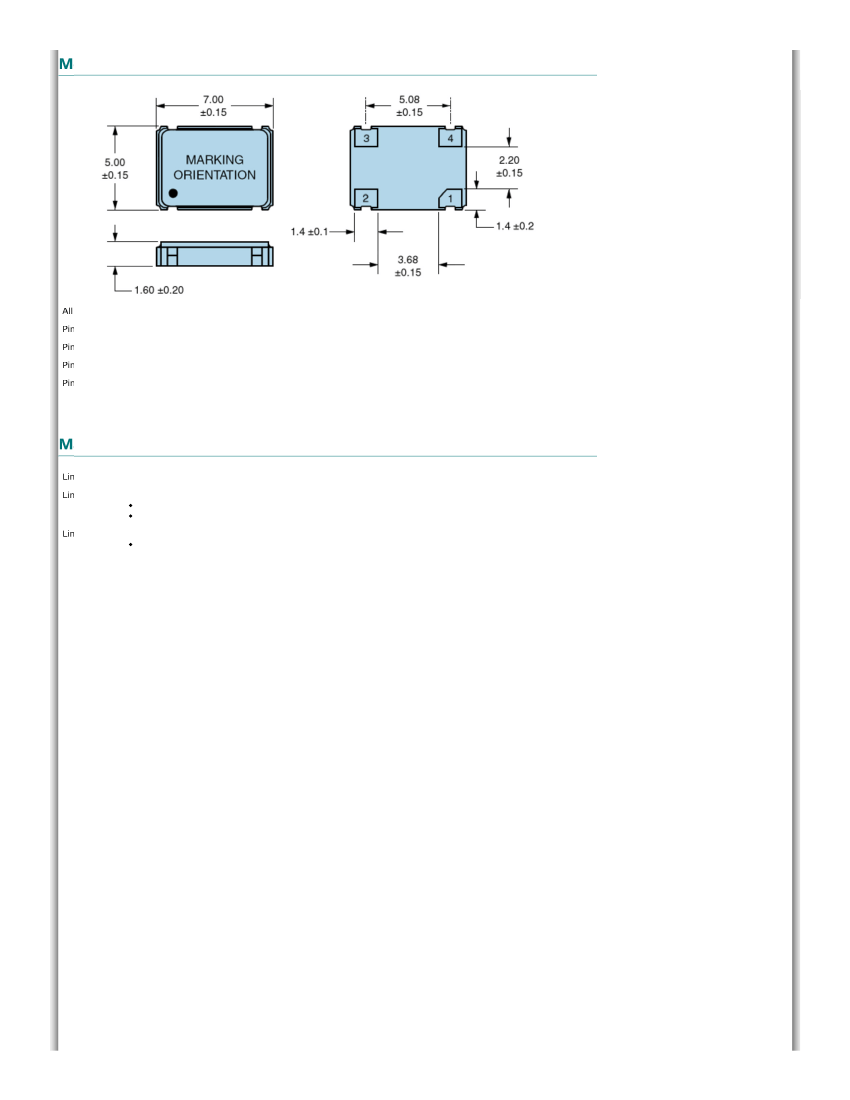

physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	6 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

Ecliptek | EH26 Series Oscillator

http://www.ecliptek.com/oscillators/EH26/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EH26 Series Oscillator

Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)

2011/65 +

2015/863

168 SVHC

Revision G 06/06/2012

Electrical Specifications

Nominal Frequency

1.000MHz to 200.000MHz

Some frequencies within this range may not be available.

Frequency Tolerance/Stability

(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency

Stability over the Operating Temperature Range, Supply Voltage

Change, Output Load Change, First Year Aging at 25°C, Shock, and

Vibration)

±100ppm Maximum

±50ppm Maximum

±25ppm Maximum

±20ppm Maximum

±5ppm/year Maximum

0°C to +70°C

-40°C to +85°C

3.3V

±0.3V

No Load

35mA Maximum

= -8mA

2.7V

Minimum

= +8mA

0.5V

Maximum

Measured at 50% of Waveform

50 ±10(%)

50 ±5(%)

Measured at 20% to 80% of Waveform

6nSec Maximum from 1MHz to 70MHz

4nSec Maximum from 70.000001MHz to 200MHz

30pF Maximum from 1MHz to 70MHz

15pF Maximum from 70.000001MHz to 200MHz

CMOS

Tri-State (High Impedance)

70% of V

Minimum to Enable Output, 20% of V

Maximum to

Disable Output, No Connect to Enable Output

±250pSec Maximum, ±100pSec Typical

±50pSec Maximum, ±40pSec Typical

10mSec Maximum

-55°C to +125°C

Aging at 25°C

Operating Temperature Range

Supply Voltage

Input Current

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Duty Cycle

Rise Time/Fall Time

Load Drive Capability

Output Logic Type

Pin 1 Connection

Tri-State Input Voltage (Vih and Vil)

Absolute Clock Jitter

One Sigma Clock Period Jitter

Start Up Time

Storage Temperature

1 of 10

28-Jan-2016 1:03 PM
