EMCL22G2J-213.000MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EMCL22G2J-213.000MTR

EMCL22G2J-213.000MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 213MHz, LVPECL OUTPUT, ROHS COMPLIANT, PLASTIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size102KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EMCL22G2J-213.000MTR Overview

CRYSTAL OSCILLATOR, CLOCK, 213MHz, LVPECL OUTPUT, ROHS COMPLIANT, PLASTIC, SMD, 6 PIN

EMCL22G2J-213.000MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1265375439
Reach Compliance Code	compliant
YTEOL	0
Other features	STANDBY; COMPLEMENTARY OUTPUT; TAPE AND REEL
maximum descent time	0.3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	213 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	5.0mm x 3.2mm x 0.75mm
longest rise time	0.3 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)

Preview

Download Datasheet

View All

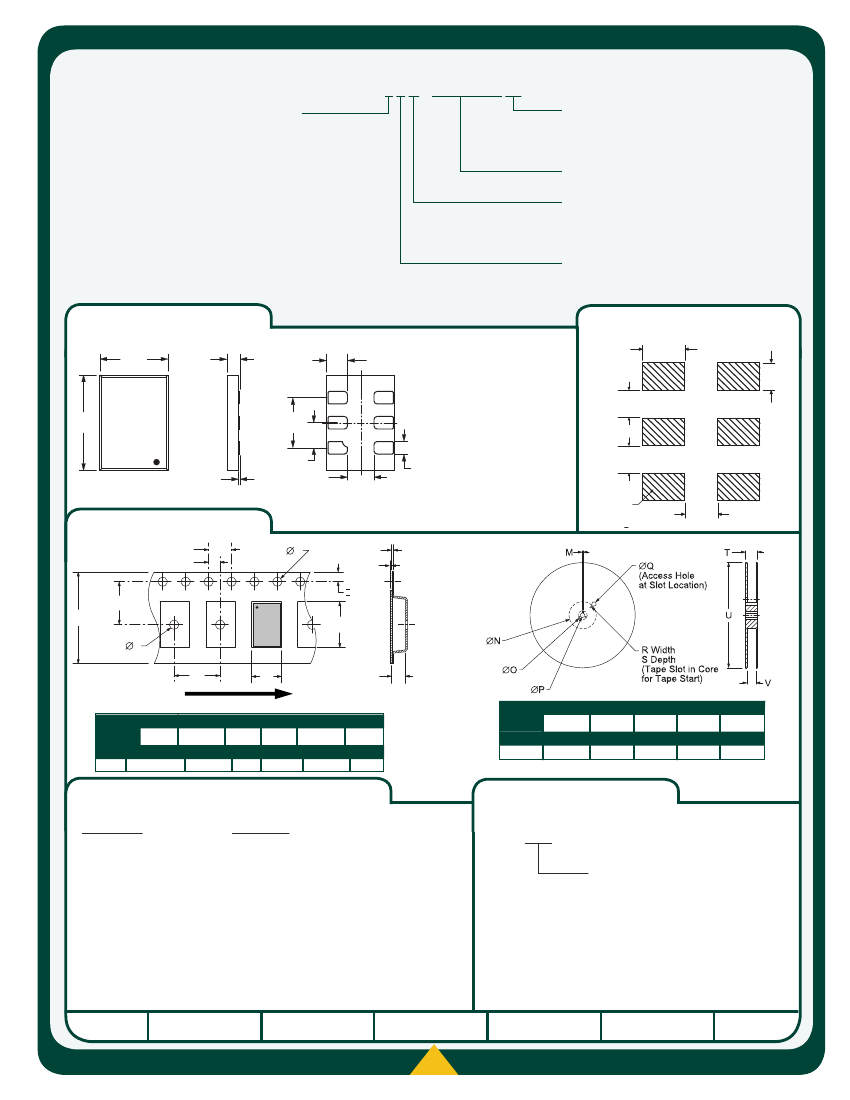

EMCL22

Series

• MEMS Clock Oscillators

• LVPECL Output

• +2.5V Supply Voltage

• Complementary Output

• Output Enable and Standby Options

• 6 Pad Plastic SMD Package

• 30,000 G Shock Resistance

• RoHS Compliant (Pb-free)

EMCL22

0.75

5.0

3.2

OSCILLATOR

ELECTRICAL SPECIFICATIONS

Nominal Frequency (MHz)

Some frequencies within this range may

not be available

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Excluding Load Termination Current

Frequency Tolerance / Stability

Inclusive of All Conditions: Calibration Tolerance at 25°C, Fre-

Some tolerance stability options

quency Stability over the Operating Temperature Range, Supply

may not be available

Voltage Change, Output Load Change, 1st Year Aging at 25°C,

Reflow, Shock, and Vibration

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

20% to 80% of waveform

Duty Cycle

at 50% of waveform

Load Drive Capability

Logic Control / Additional Output

Output Control Input Voltage

of 70% of V

Minimum

No Connection

of 30% of V

Maximum

Without Load

First Year at 25°C

Deterministic

Random

RMS

pk-pk

1.000MHz to 100.000MHz

100.001MHz to 156.250MHz

156.251MHz to 220.000MHz

1.000MHz to 100.000MHz

100.001MHz to 156.250MHz

156.251MHz to 220.000MHz

1.000MHz to 100.000MHz

100.001MHz to 156.250MHz

156.251MHz to 220.000MHz

SERIES

PACKAGE

VOLTAGE

1.000MHz to 220.000MHz

0°C to +70°C, -20°C to +70°C, or -40°C to +85°C

-55°C to +125°C

2.5V

±0.125V

75mA Maximum

±100ppm, ±50ppm, ±25ppm, or

±20ppm Maximum

Output Enable Current

Standby Current

Aging

Start Up Time

Period Jitter

RMS Phase Jitter (Random)

Fj=637kHz to 10MHz

RMS Phase Jitter (Random)

Fj=1MHz to 20MHz

RMS Phase Jitter (Random)

Fj=1.875MHz to 20MHz

1.55V

Typical, V

-1.025V

Minimum

0.80V

Typical, V

-1.62V

Maximum

150pSec Typical, 300pSec Maximum

50 ±5(%)

50 Ohms into V

-2.0V

Output Enable (OE) and Complementary Output,

or Standby and (ST) Complementary Output

Enables Outputs

Disables Outputs: High Impedance

70mA Maximum (OE)

30µA Maximum (ST)

±1ppm Maximum

10 mSeconds Maximum

0.2pSec Typical

2.0pSec Typical

1.5pSec Typical, 3.0pSec Maximum

20pSec Typical, 25pSec Maximum

1.7pSec Typical

1.6pSec Typical

1.4pSec Typical

1.0pSec Typical

0.7pSec Typical

1.1pSec Typical

0.5pSec Typical

0.4pSec Typical

CLASS

REV

DATE
