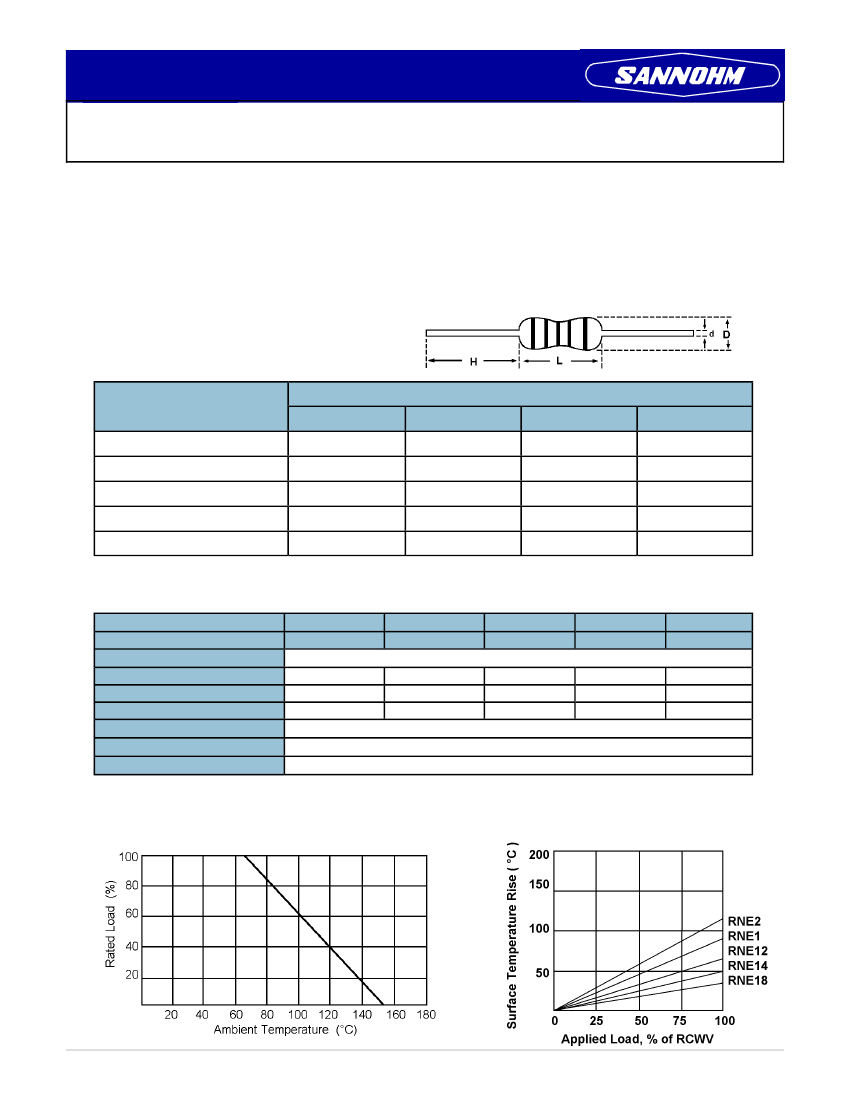

RNE
•
•
•
Metal Film Resistor
LOW NOISE
LOW T.C.R. 100ppm, 50ppm, 25ppm
HIGH PRECISION 1%, 0.5%, 0.25%, 0.1%
POWER RATING
1/8W ~ 2W
DIMENSIONS
Body Colour:
STYLE
L
RNE18
RNE14
RNE12
RNE1
RNE2
3.3 +0.7 -0.2
6.3
±
0.5
9.0
±
0.5
11.5
±
1.0
15.5.
±
1.0
Light Blue
DIMENSIONS (mm)
D
1.8
±
0.3
2.3
±
0.3
3.2
±
0.5
4.5
±
0.5
5.0
±
0.5
H
29
±
2.0
28
±
2.0
26
±
2.0
35
±
2.0
32
±
2.0
d
0.45
±
0.03
0.55
±
0.03
0.65
±
0.03
0.78
±
0.03
0.78
±
0.03
ELECTRICAL CHARACTERISTICS
Power Rating at 70°C
STYLE
Operating Temp. Range
Maximum Working Voltage
Maximum Overload Voltage
Dielectric Withstanding Volt.
Temperature Coefficient
Value Range
±1% ±0.5%*
Value Range
±0.25% ±0.1%*
0.125 w
RNE18
200v
400v
300v
0.5 w
1w
RNE12
RNE1
-55°C ~ +155°C
250v
350v
450v
500v
700v
1000v
500v
500v
1000v
±15ppm/°C, ±25ppm/°C, ±50ppm/°C, ±100ppm/°C
10Ω ~ 1MΩ
100Ω ~ 100KΩ
0.25 w
RNE14
2w
RNE2
500v
1000v
1000v
*Resistance Range for standard resistance – below or over this resistance on request.
POWER DERATING CURVE
HOT-SPOT TEMPERATURE
S-P International
PERFORMANCE CHARACTERISTICS
PERFORMANCE TEST
Short Time Overload
Temperature Coefficient (T.C.R.)
Dielectric Withstanding Voltage
Pulse Overload
Insulation Resistance
Load Life
TEST METHOD
JIS-C5202 5.5
2.5 times RCWV for 5 sec.
Resistance value at room temperature
(+100°C)
JIS-C5202 5.7
In V-Block for 60 seconds
JIS-C5202 5.8
4 x RCWV for 10,000 cycles
(1 sec on, 25 sec off)
JIS-C5202 5.6
In V-Block
JIS-C5202 7.10
70°C at RCWV for 1,000 hrs
(1.5hr on, 0.5hr off)
JIS-C5202 7.9
40
±2°C,
90~95%RH at RCWV for
1,000hrs (1.5hr on, 0.5hr off)
JIS-C5202 6.5
235
±
5°C for 2
±
0.5sec.
JIS-C5202 6.9
Trichroethane for 1 min. with ultrasound
Direct load for 10 sec. In the direction
of the terminal leads
Page 13
APPRAISE
±(0.25%+0.05Ω)
By Type
By Type
±(0.75%+0.05Ω)
>10,000MΩ
±(1.5%+0.05Ω)
±(1.5%+0.05Ω)
95% minimum coverage
No deterioration of coatings and
markings
Tensile
≥
2.5kg
Load Life in Humidity
Solderability
Resistance to Solvent
Terminal Strength
Rated continuous Working Voltage (RCWV) =
√
Power Rating x Resistance Value
PART NUMBER
RNE 14 - 22R6 F D T
Series Type
RNE
Wattage
18 = 1/8w
14 = 1/4w
12 = 1/2w
1 = 1w
2 = 2w
Resistance Value
Example
0R10
100R
10K0
1M00
Tolerance
F = 1%
D = 0.5%
C = 0.25%
B = 0.1%
T.C.R.*
F = 100ppm
E = 50ppm*
D = 25ppm
C = 15ppm
Package
B = Bulk
T = Tape
*Note that unless otherwise stipulated, the standard supplied T.C.R. on 1% tolerance resistors, 10R ~ 1M, is 50ppm. The "E" T.C.R.
code is not used when ordering the standard part. Example: RNE14-499RFT = 1/4w, 499Ω, 1%, 50ppm, Tape. The T.C.R. code is used
only when ordering a tolerance less than 1%, or when an T.C.R. other than the standard is required.
STANDARD PACKAGING
BULK
1/8w ~ 2w
200 pieces
TAPE
1/8w, 1/4w
1/2w
1w
5,000 pieces
3,000 pieces
2,000 pieces
LEAD FREE
RNE Series parts are lead free.
RoHS Compliant
Revised 2007-01-22
