XO1T/AE14.7456MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> XO1T/AE14.7456MHZ

XO1T/AE14.7456MHZ: DescriptionCMOS/LSTTL Output Clock Oscillator, 14.7456MHz Nom; CategoryPassive components oscillator; File Size54KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

XO1T/AE14.7456MHZ Overview

CMOS/LSTTL Output Clock Oscillator, 14.7456MHz Nom

XO1T/AE14.7456MHZ Parametric

Parameter Name	Attribute value
Objectid	2024397208
Reach Compliance Code	unknown
YTEOL	0
Other features	TRISTATE ENABLE/DISABLE FUNCTION
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	14.7456 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/LSTTL
Output load	10 LS TTL
physical size	20.3mm x 13.2mm x 5.1mm
longest rise time	7 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

5V Oscillator Mil Temp

Specifications

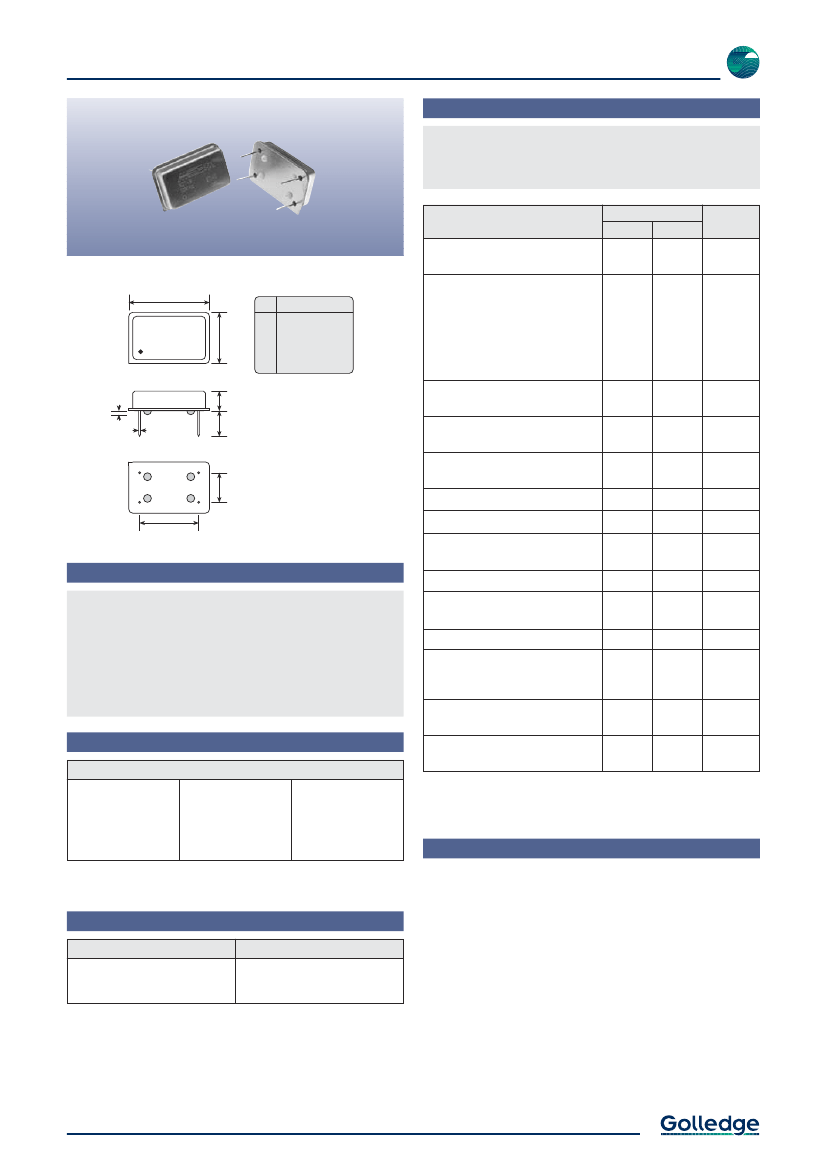

XO1 & XO1T

XO1: Standard stability option

XO1T: Tight stability option

Product

XO1

XO1T

Parameters

Frequency range:

2.0kHz ~ 20.0MHz

20.30

(max)

Option

Codes

13.20

(max)

5.10

(max)

6.40

(max)

CONNECTION

Not connected or

Enable/Disable

Ground

Output

Supply

Frequency stability* (max):

±50ppm over 0 to +70°C

±80ppm over -40 to +85°C

±100ppm over -55 to +125°C

±20ppm over 0 to +70°C

±30ppm over -40 to +85°C

±50ppm over -55 to +125°C

Operable temperature range:

-55 to +125°C

Storage temperature range:

-65 to +125°C

Supply voltage (V

+5.0V (±10%)

Supply current (max):

Driving ability:

Scale 1:1

Logic levels:

15mA

1.00

0.50Ø

7.62

15.24

CMOS / 10 LSTTL

Features

‘0’ level = 0.4V max

‘1’ level = 90% V

min

5ms max

Start up time:

Military temperature range option

Frequencies down to 2.0kHz

Excellent shock resistance

Enable / disable tristate option

Waveform symmetry:

40:60 max @ 50%V

Rise / fall times:

7ns max

Enable / disable function:

None (pin 1 NC)

Tristate (control via pin 1)

Shock resistance:

5,000G, 0.3ms, ½ sine

Vibration resistance:

10G / 10 ~ 2,000Hz

18.4320

19.2000

19.6608

20.0000

Standard.

Optional - Please specify required code(s) when ordering

Standard Frequencies

Frequencies in MHz

10.0000

10.1500

10.2300

10.2400

11.0592

12.0000

12.2880

12.8000

13.0000

14.7456

16.0000

16.3840

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change and ageing over 10 years.

Ordering Information

Product + option codes + frequency

eg:

XO1/A 10.0MHz

±50ppm 0+70°C

XO1T/CE 20.0MHz

±50ppm -55+125°C with enable / disable

Option code X (eg XO1/X) denotes a custom specification.

Binary divisions of these frequencies also available.

Other frequencies may be available on request. Please consult our sales office.

Enable / Disable Function

Input (pin 1)

Open

‘1’ level

‘0’ level

Output (pin 8)

Enabled

High Impedance

Tel:

+44 1460 256 100

19 Mar 2002

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
