302R29W151KV3E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 302R29W151KV3E

302R29W151KV3E: DescriptionCeramic Capacitor, Ceramic, 3000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.00015uF, 1808,; CategoryPassive components capacitor; File Size70KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric View All

302R29W151KV3E Overview

Ceramic Capacitor, Ceramic, 3000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.00015uF, 1808,

302R29W151KV3E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	801991101
package instruction	, 1808
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.9
capacitance	0.00015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.65 mm
JESD-609 code	e3
length	4.57 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Embossed, 7 Inch
positive tolerance	10%
Rated (DC) voltage (URdc)	3000 V
series	302(R29 ,X7R)
size code	1808
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	2.03 mm

Preview

Download Datasheet

View All

AFETY

ERTIFIED

APACITORS

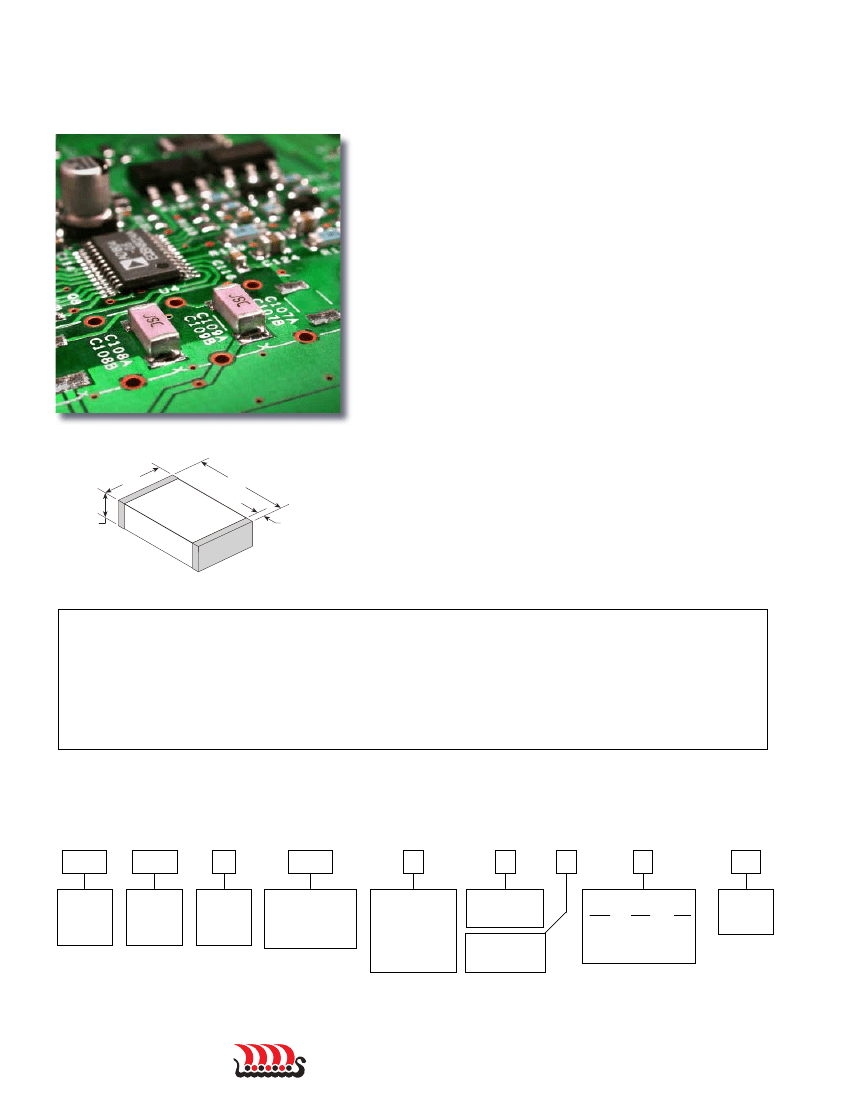

Johanson Dielectrics Type SC ceramic chip capacitors are

designed for AC voltage surge and lightning protection in

line-to-ground interface applications in computer network,

modem, facsimile and other equipment.

Johanson’s safety capacitor offering includes four different

case sizes and NPO and X7R dielectric materials.

These devices are surface mount ready with barrier

terminations and tape and reel packaging.

Additional information on capacitor safety ratings may be

found below. Specific certification details may be found

under each product listing on the facing page.

SAFETY

RATING

E/B

RATED

VAC

250

DWV

VAC

1,500

IMPULSE

VOLTAGE

5,000

N/A

4,000

2,500

X Capacitors are defined as suitable for use in situations where failure of

the capacitor would not lead to danger of electric shock.

Y Capacitors are defined as suitable for use in situations where failure of

the capacitor could lead to danger of electric shock.

SAFETY

RATING

X2/Y3

X1/Y2

VOLTAGE RATING

WVAC

3,000

5,000

250

CASE

SIZE

1808

1812

2211

2220

JOHANSON

ORDERING P/N

302R29______V_E-****-SC

302S43______V_E-****-SC

502R30______V_E-****-SC

502S47______V3E-****-SC

OW TO

RDER

AFETY

ERTIFIED

302

VOLTAGE

302 = 3000V

502 = 5000V

R29

SIZE

See Size

Chart

DIELECTRIC

N = NPO

W = X7R

101

CAPACITANCE

1st two digits are

significant; third digit

denotes number of

zeros; 101 = 100 pF

TOLERANCE

NPO: J = ± 5%

K = ± 10%

X7R: K = ± 10%

M = ± 20%

TERMINATION

V = Ni barrier w/

100% Sn Plating

MARKING

3 = Special (JSC)

4 = No marking

****

TYPE

SC = Safety

Certified

TAPE MODIFIER

Tape

Reel

Code

Embossed

Tape specifications

conform to EIA RS481

P/N written: 302R29N101KV3E-****-SC
