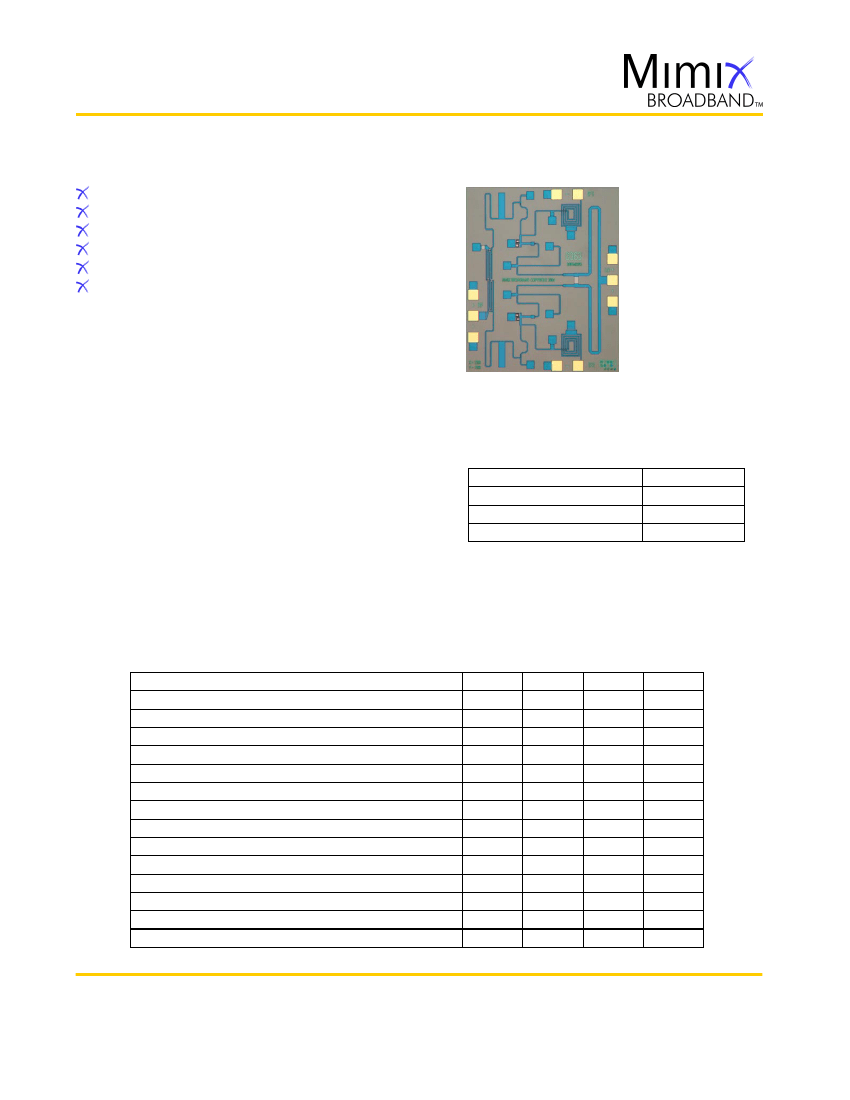

32.0-42.0 GHz GaAs MMIC

Image Reject Mixer

November 2005 - Rev 21-Nov-05

38IRM0363

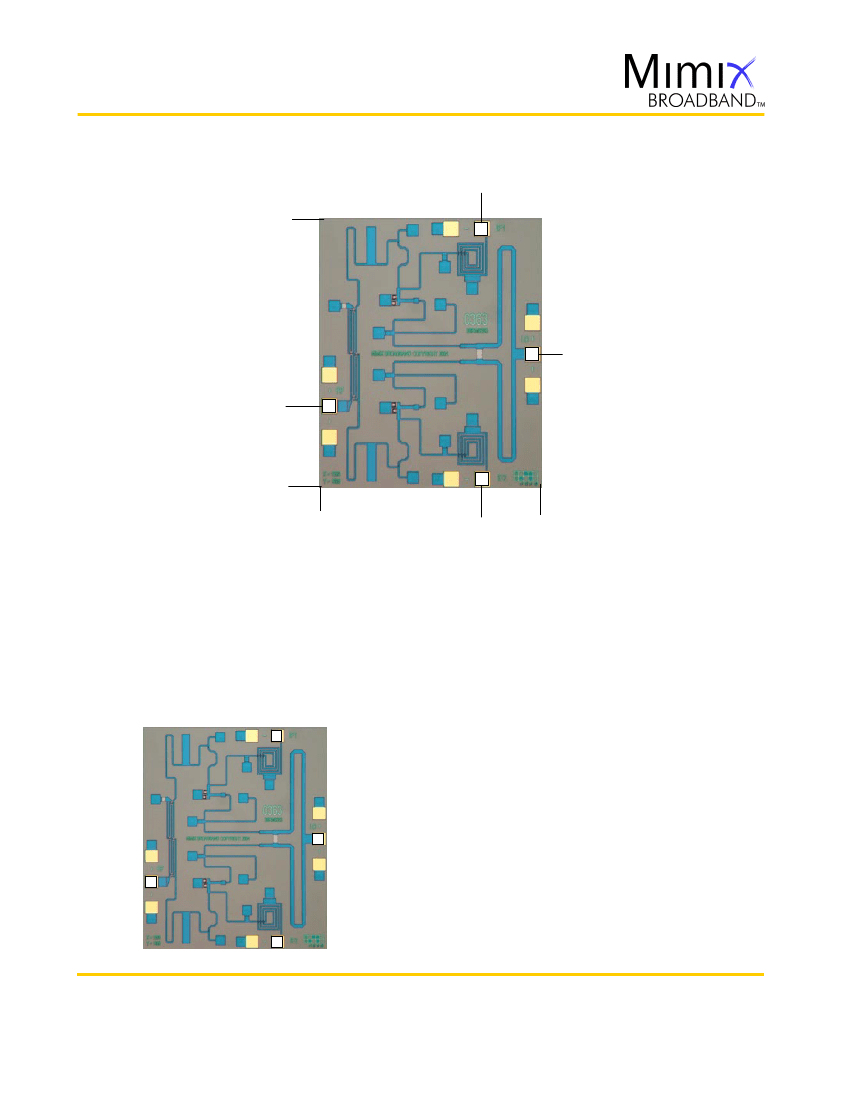

Chip Device Layout

Features

Sub-harmonic Image Reject Mixer

GaAs HBT Technology

9.0 dB Conversion Loss

18.0 dB Image Rejection

100% On-Wafer RF Testing

100% Visual Inspection to MIL-STD-883

Method 2010

General Description

Mimix Broadband’s 32.0-42.0 GHz GaAs MMIC sub-

harmonic image reject mixer can be used as an up- or

down-converter. The device has a conversion loss of 9.0

dB with 18.0 dB image rejection across the band. I and Q

mixer outputs are provided and an external 90 degree

hybrid is required to select the desired sideband. This

MMIC uses Mimix Broadband’s 2

µm

GaAs HBT device

model technology, and is based upon electron beam

lithography to ensure high repeatability and uniformity.

The chip has surface passivation to protect and provide a

rugged part with backside via holes and gold

metallization to allow either a conductive epoxy or

eutectic solder die attach process. This device is well

suited for Millimeter-wave Point-to-Point Radio, LMDS,

SATCOM and VSAT applications.

Absolute Maximum Ratings

Units

GHz

dBm

dBc

dBm

Input Power (RF Pin)

Input Power (IF Pin)

Storage Temperature (Tstg)

Operating Temperature (Ta)

Typ.

10.0

TBD

9.0

+12.0

18.0

-40.0

TBD

+14.0

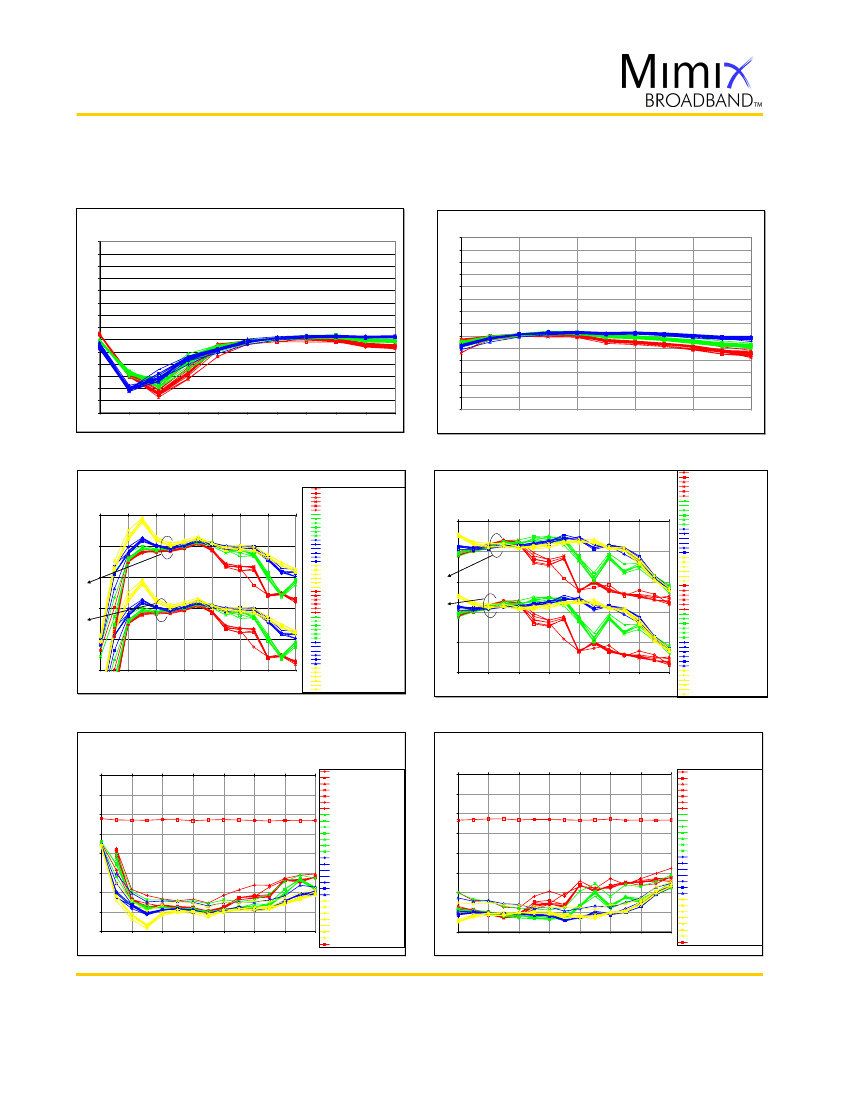

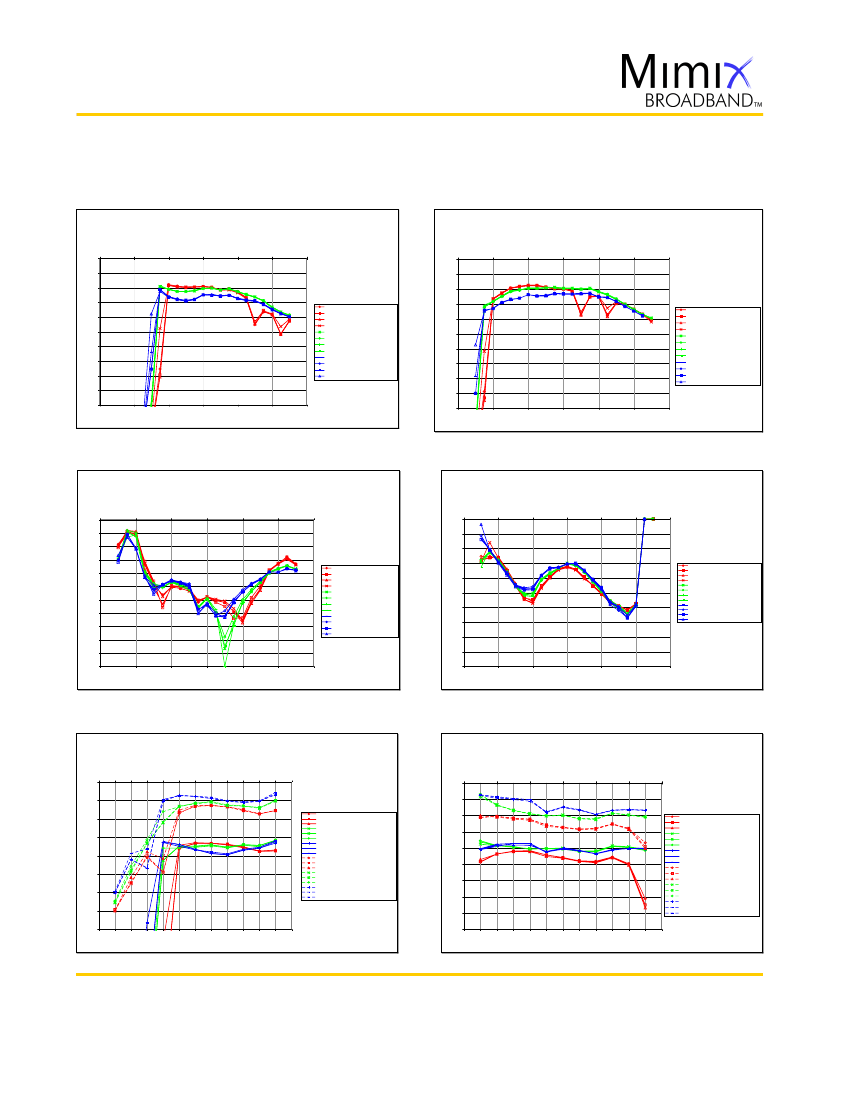

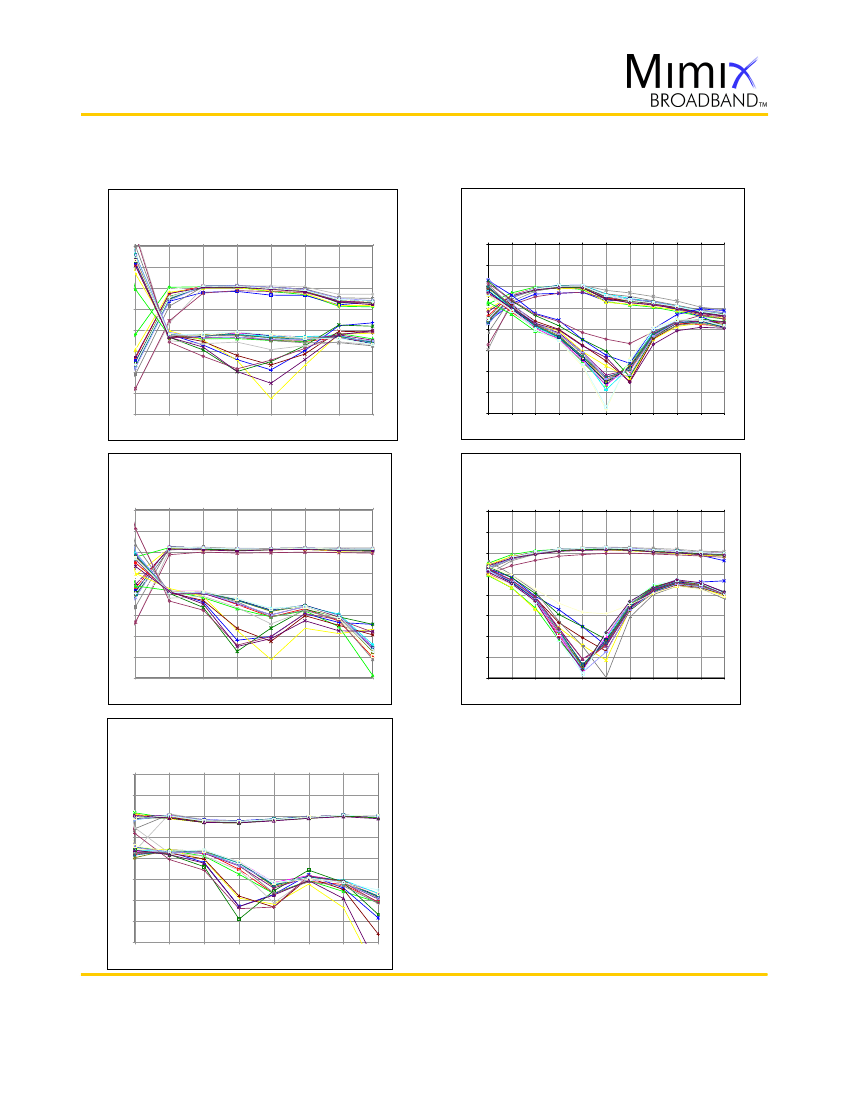

Electrical Characteristics (Ambient Temperature T = 25

Parameter

Frequency Range (RF) Upper Side Band

Frequency Range (RF) Lower Side Band

Frequency Range (LO)

Frequency Range (IF)

RF Return Loss (S11)

IF1/IF2 Return Loss (S22)

LO Return Loss (S33)

Conversion Loss (S21)

LO Input Drive (P

)

Image Rejection

Isolation LO/RF

Isolation LO/IF

Isolation RF/IF

Input Third Order Intercept (IIP3)

Min.

34.0

32.0

15.0

Max.

42.0

23.0

4.0

Page 1 of 7

Characteristic Data and Specifications are subject to change without notice.

Mimix Broadband, Inc.

Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept

their obligation to be compliant with U.S. Export Laws.

Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099

Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com

+20 dBm

-65 to +165

-55 to +125

38IRM0363 Related Products

	38IRM0363
Description	Image Rejection Mixer, 32000MHz Min, 42000MHz Max, DIE-4
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	5 dBm
JESD-609 code	e3
Maximum operating frequency	42000 MHz
Minimum operating frequency	32000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	IMAGE REJECTION
Terminal surface	Matte Tin (Sn)
Base Number Matches	1
