For U.S. installations, sensor case ground (green wire) must be bonded to
ground according to Article 501 & 505 of the NEC.
SENSOR SOLUTIONS
/// AST46HA
04/2018
Page 3
EXPLOSION-PROOF

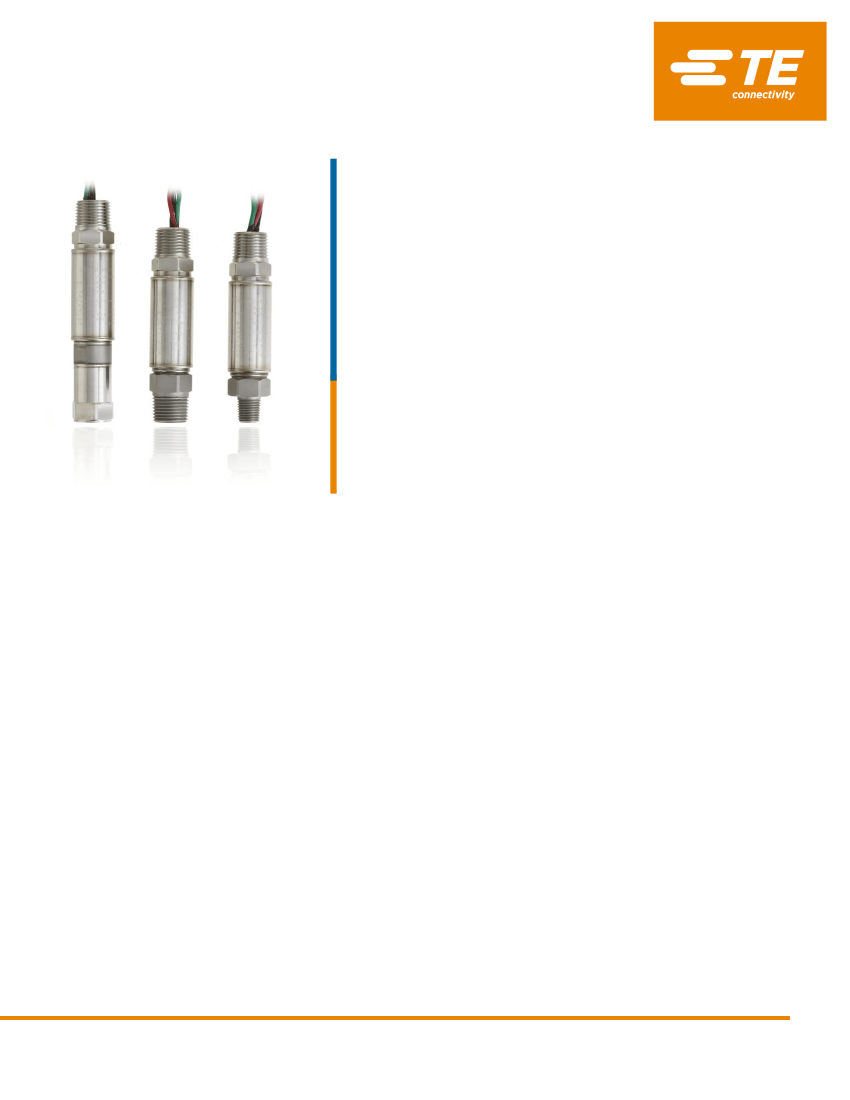

AST46HA High Accuracy 0.1% Pressure Transducer
ORDERING INFORMATION
AST46HA – A 1 0000 P 3 T 1 H 000 -Z
Process Connection*
Code
Connection
A
1/4” NPT Male (≤10k psi)
I
1/4” NPT Female (≤15k psi)
P
1/2” NPT Male (≤15k psi)
W
F250C Female Autoclave (10k-20k psi)
Pressure Range [psi]
Code
Range
(gauge)
G 0001
0-1
G 0069
0-2.5
G 0005
0-5
G 0208
0-7.5
G 0010
0-10
G 0015
0-15
G 0025
0-25
G 0050
0-50
G 0100
0-100
G 0200
0-200
G 0500
0-500
0-1000
G 1000
G=Gauge Pressure **
0=Sealed Gauge
(<10k psi)
Approval
CRN Registered to ANSI/ASME B31.3.
-Z
Contact Factory for material pressure and
process connection options
Options
000
No Options
Code
0 0100
0 0200
0 0500
0 1000
0 1500
0 2500
0 3000
0 5000
0 7500
1 000
1 5000
2 000
Range
(Vent)
0-100
0-200
0-500
0-1000
0-1500
0-2500
0-3000
0-5000
0-7500
0-10,000
0-15,000
0-20,000
Failure State
H
L
N
High
Low
None
Wetted Materials
0
17-4PH
1
316L
2
Inconel 718
4
Hastelloy C276
Electrical
T
U
W
2ft. 18AWG wires
4ft. 18AWG wires
2meter 18AWG wires
V=Gauge (Vacuum Calibrated)**
1=Sealed Gauge
2=Sealed Gauge
(10k - <20k psi)
(20k psi)
Pressure Units
B
K
P
bar
kg/cm
2
psi
*For other ports, contact factory, “W” not available in 316L
** Not suitable for Class II
Outputs
1
0.5–4.5V
2
0 5V
3
1–5V
4
4–20mA
5
0-10V (3-wire)
6
1-6V (3-wire+case connection)
G
1-10V
NORTH AMERICA
American Sensor Technologies, Inc. (AST),
a TE Connectivity Company
Tel: +1 800-522-6752
Email:
customercare.molive@te.com
ASIA
Hong Kong Sensor Technologies (HKST),
a TE Connectivity Company
Tel: +86 0400-820-6015
Email:
customercare.shzn@te.com
TE.com/sensorsolutions
Measurement Specialties, Inc., a TE Connectivity company.
Measurement Specialties, TE Connectivity, TE Connectivity (logo) and EVERY CONNECTION COUNTS are trademarks. All other logos, products and/or company names referred to herein
might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE Connectivity makes
no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE Connectivity‘s Standard
Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse
of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
