3GDW-F-30N-FREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3GDW-F-30N-FREQ

3GDW-F-30N-FREQ: DescriptionLVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max, DIP-8/4; CategoryPassive components oscillator; File Size84KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/

Download Datasheet Parametric View All

3GDW-F-30N-FREQ Overview

LVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max, DIP-8/4

3GDW-F-30N-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Euroquartz
Reach Compliance Code	compliant
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	30 ppm
frequency stability	100%
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	0.75 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Output load	50 OHM
physical size	12.8mm x 12.8mm x 5.08mm
longest rise time	0.7 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

Frequency range 38MHz to 640MHz

LVDS Output

Supply Voltage 3.3 VDC

Phase jitter 0.4ps typical

Pull range from ±30ppm to ±150ppm

GDW8 LVDS

VCXO

8 pin Dual-in-Line VCXO

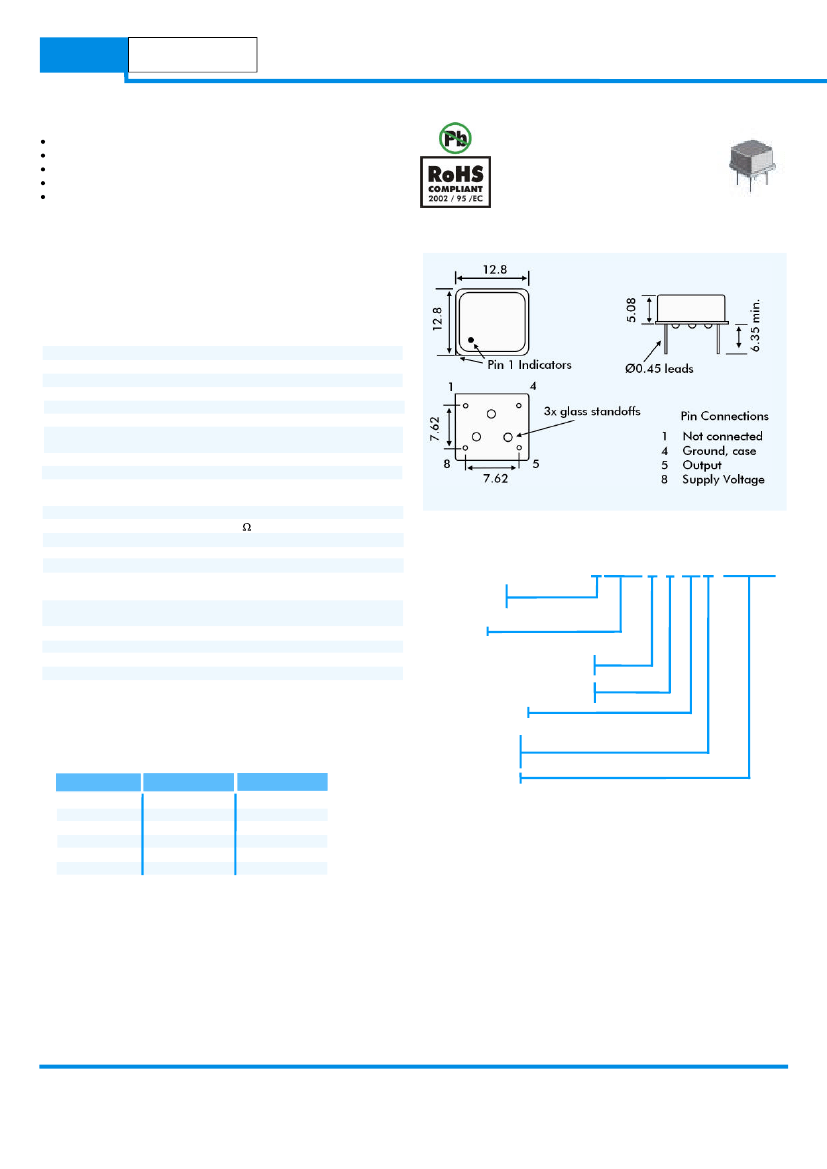

DESCRIPTION

GDW8VCXOs are packaged in an industry-standard, 8pin dual-in-line

package. Typical phase jitter for GDW series VCXOs is 2.35ps. Output

is LVDS. Applications include phase lock loop, SONET/ATM, set-top

boxes, MPEG , audio/video modulation, video game consoles and

HDTV.

SPECIFICATION

Frequency Range:

Supply Voltage:

Output Logic:

RMS Period Jitter:

Peak to Peak Jitter:

Phase Jitter:

Initial Frequency Accuracy:

Output Voltage HIGH (1):

Output Voltage LOW (0):

Pulling Range:

Control Voltage Range:

Temperature Stability:

Output Load:

Rise/Fall Times:

Duty Cycle:

Start-up Time:

Current Consumption:

Static Discharge Protection:

Storage Temperature:

Ageing:

Enable/Disable:

RoHS Status:

OUTLINE & DIMENSIONS

750kHz to 800.0MHz

3.3 VDC ±5%

LVDS

4.3ps typical

27.0ps typical

2.35ps typical

Tune to the nominal frequency

with Vc= 1.65 ±0.2VDC

1.4 Volts typical

1.1 Volts typical

From ±30ppm to ±150ppm

1.65 ±1.35 Volts

See table

50 into Vdd or Thevenin equiv.

0.5ns typ., 0.7ns max.

20% Vdd to 80% Vdd

50% ±5%

(Measured at Vdd-1.3V)

10ms maximum, 5ms typical

55mA typical, 60mA maximum

(At 202.50MHz)

2kV maximum

-55° to +150°C

±2ppm per year maximum

Not implemented - 4 pin package

Fully compliant or non compliant

PART NUMBERING

Example:

Supply Voltage

3 = +3.3V

Series Designator

GDW

RoHS Status

G = RoHs compliant

Blank = RoHS non-compliant

Stability over temperature range

(See table)

Pullability in ±ppm

Pullability determinator

N = minimum

M = maximum

T = Typical

Frequency in MHz

3GDWG-B-80N-60.000

FREQUENCY STABILITY

Stability Code Stability ±ppm Temp. Range

0°~+70°C

100

0°~+70°C

-40°~+85°C

100

-40°~+85°C

If non-standard frequency stability is required

Use ‘I’ followed by stability, i.e. I20 for ±20ppm

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
