FEATURES AND SPECIFICATIONS
Features and Benefits
s
Positive housing locks to mate with Mini-Fit, Jr. receptacle
s
Fully isolated terminals to protect contacts from damage
s
Drain hole option available
Reference Information
Product Specification: PS-5556-0001
Packaging: Tray or bag
UL File No.: E29179
CSA File No.: LR19980
TUV License No.: R75142
Mates With:
5557
dual row receptacle
Designed In: Millimeters
Electrical
Voltage: 600V
Current: (Used with 16 AWG)
Circuits
Amperes-Jr.
2–3
9
4–6
8
7–10
7
12–24
6
Electrical (cont’d)
Contact Resistance: 10m
Ω
max.
Dielectric Withstanding Voltage: 1500V AC
Insulation Resistance: 1000 M
Ω
min.
Mechanical
Contact Insertion Force: 1.5kg max.
Contact Retention to Housing: 3.0kg min.
Wire Pull-Out Force: 9.0kg min.
Insertion Force to PCB: 5.0kg max.
Mating Force: 0.7kg (1.54 lb) max.
Unmating Force: 0.35kg (0.7 lb) min.
Normal Force: 200g min.
Durability: 30 cycles
Physical
Housing: 6/6 nylon, UL 94V-2 or 94V-0
Contact: Brass or Phosphor Bronze
Plating: Tin, select Gold or overall Gold
Operating Temperature: -40 to +105˚C
4.20mm (.165") Pitch
Mini-Fit, Jr.
™
Header
5566
Vertical, Dual Row
Without Pegs
F
Power Connectors

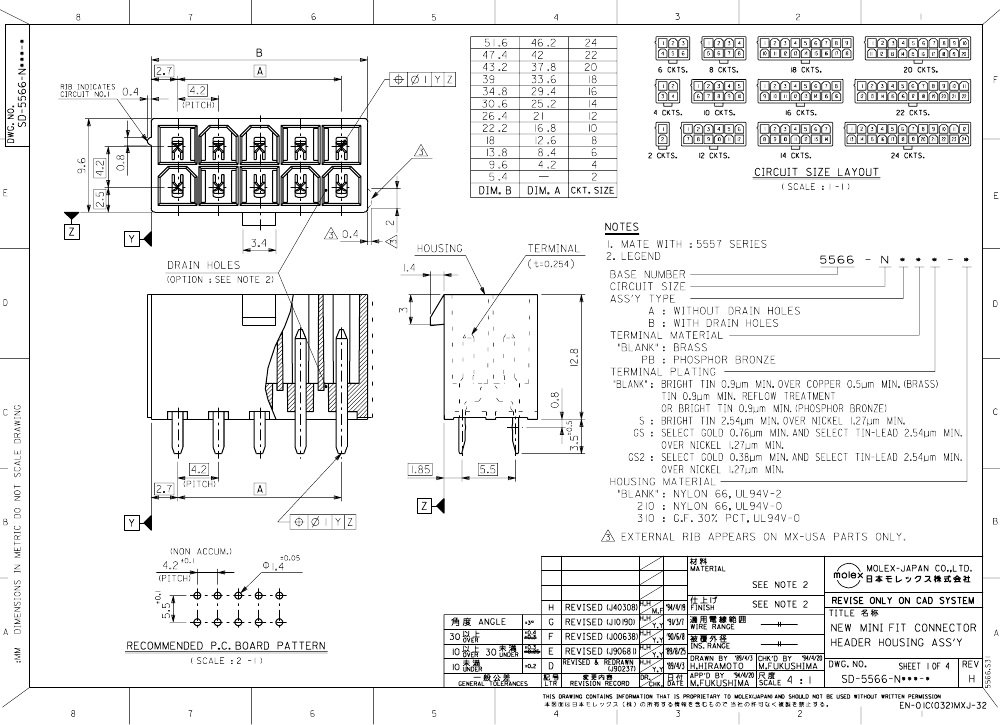

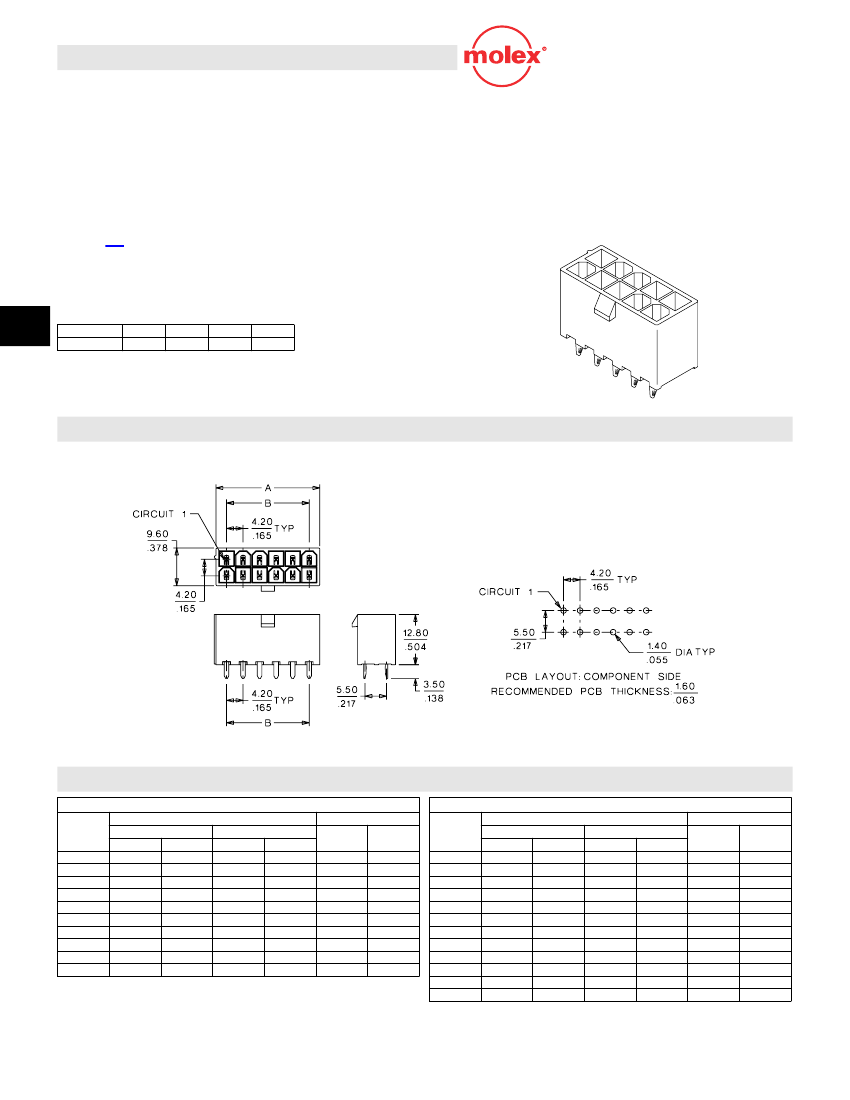

CATALOG DRAWING (FOR REFERENCE ONLY)

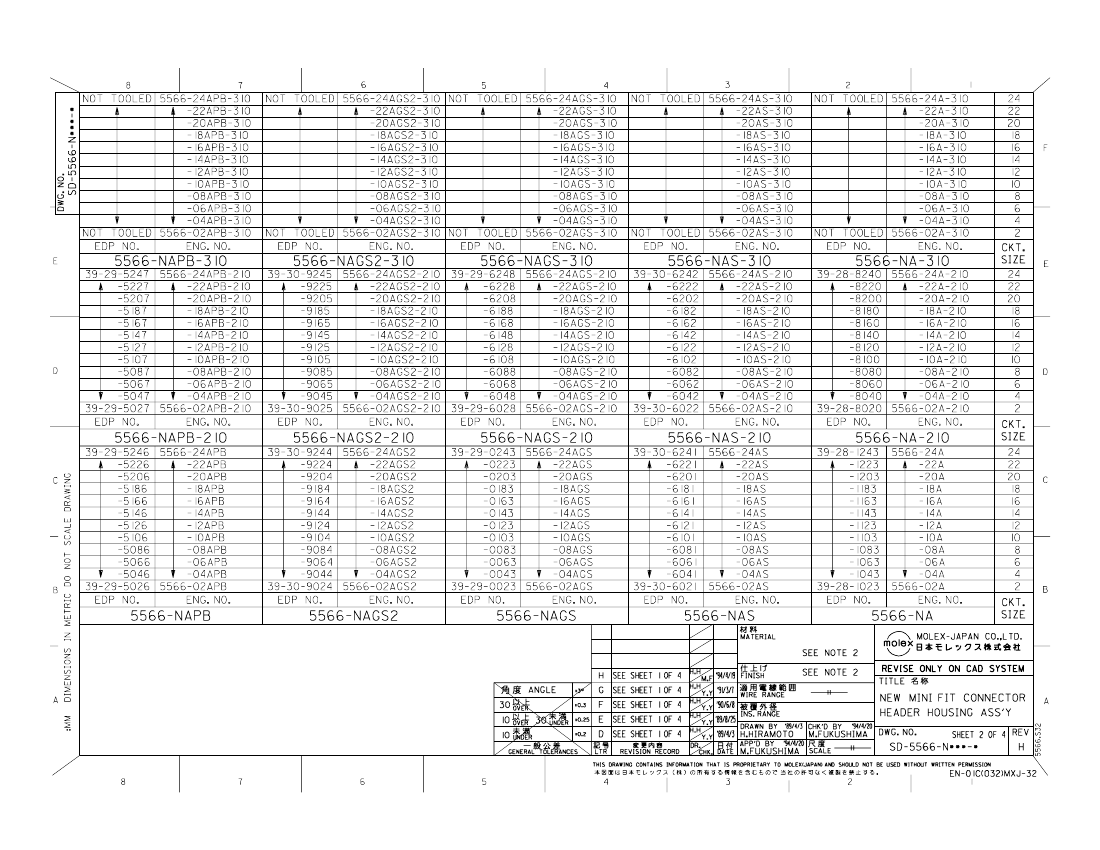

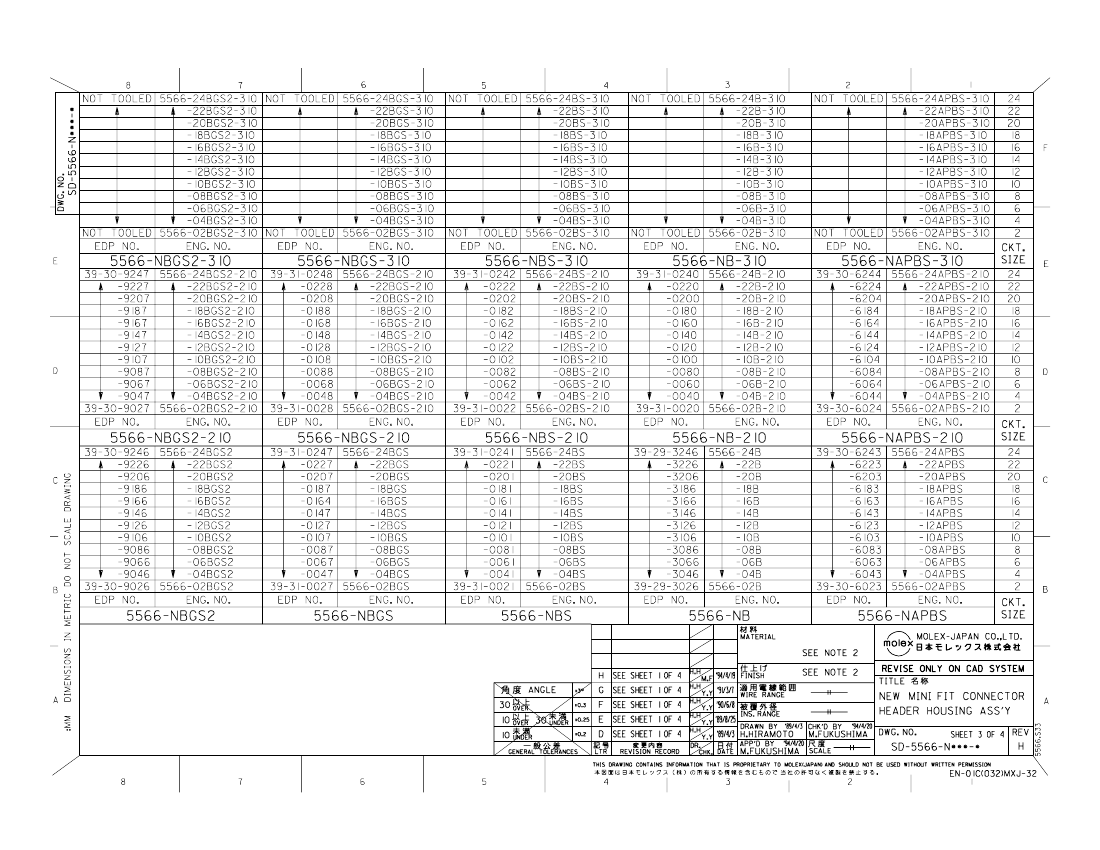

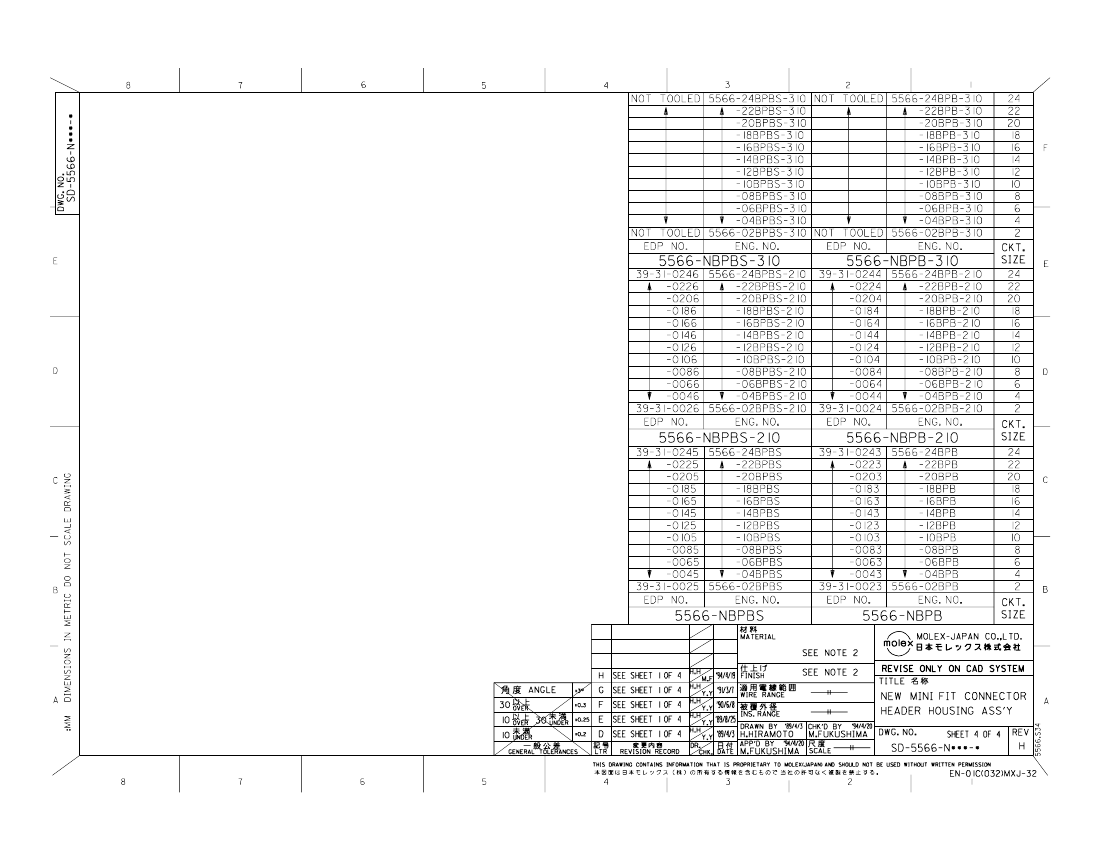

ORDERING INFORMATION AND DIMENSIONS
With Drain Holes
Order No.
Circuits
2
4
6
8
10
12
14
16
20
22
Tin Plated
94V-2
94V-0
•39-29-3026
•39-31-0020
•39-29-3046
•39-31-0040
•39-29-3066
•39-31-0060
•39-29-3086
•39-31-0080
•39-29-3106
•39-31-0100
•39-29-3126
•39-31-0120
•39-29-3146
•39-31-0140
•39-29-3166
•39-31-0160
•39-29-3206
•39-29-3226
Gold Plated (30
µ
")
94V-2
94V-0
•39-31-0027
•39-31-0028
•39-31-0047
•39-31-0048
•39-31-0067
•39-31-0068
•39-31-0087
•39-31-0088
•39-31-0107
•39-31-0108
•39-31-0127
•39-31-0128
•39-31-0147
•39-31-0148
•39-31-0167
•39-31-0168
•39-31-0207
•39-31-0227
A
5.40
9.60
13.80
18.00
22.20
26.40
30.60
34.80
43.20
47.40
(.210)
(.380)
(.540)
(.710)
(.870)
(1.040)
(1.200)
(1.370)
(1.700)
(1.870)
4.20
8.40
12.60
16.80
21.00
25.20
29.40
37.80
42.00
Dimension
B
(.170)
(.330)
(.500)
(.660)
(.830)
(.990)
(1.160)
(1.490)
(1.650)
Circuits
2
4
6
8
10
12
14
16
18
20
22
24
Without Drain Holes
Order
Tin Plated
94V-2
94V-0
•39-28-1023
•39-28-8020
•39-28-1043
•39-28-8040
•39-28-1063
•39-28-8060
•39-28-1083
•39-28-8080
•39-28-1103
•39-28-8100
•39-28-1123
•39-28-8120
•39-28-1143
•39-28-8140
•39-28-1163
•39-28-8160
•39-28-1183
•39-28-8180
•39-28-1203
•39-28-8200
•39-28-1223
•39-28-8220
•39-28-1243
•39-28-8240
No.
Gold Plated (30
µ
")
94V-2
94V-0
•39-29-0023
•39-29-6028
•39-29-0043
•39-29-6048
•39-29-0063
•39-29-6068
•39-29-0083
•39-29-6088
•39-29-0103
•39-29-6108
•39-29-0123
•39-29-6128
•39-29-0143
•39-29-6148
•39-29-0163
•39-29-6168
•39-29-0183
•39-29-6188
•39-29-0203
•39-29-6208
•39-29-0223
•39-29-6228
•39-29-0243
•39-29-6248
A
5.40
9.60
13.80
18.00
22.20
26.40
30.60
34.80
39.00
43.20
47.40
51.60
(.210)
(.380)
(.540)
(.710)
(.870)
(1.040)
(1.200)
(1.370)
(1.540)
(1.700)
(1.870)
(2.030)
4.20
8.40
12.60
16.80
21.00
25.20
29.40
33.60
37.80
42.00
46.20
Dimension
B
(.170)
(.330)
(.500)
(.660)
(.830)
(.990)
(1.160)
(1.320)
(1.490)
(1.650)
(1.820)
• US Standard Product, available through Molex franchised distributors
F-48
MX01
Power technology
