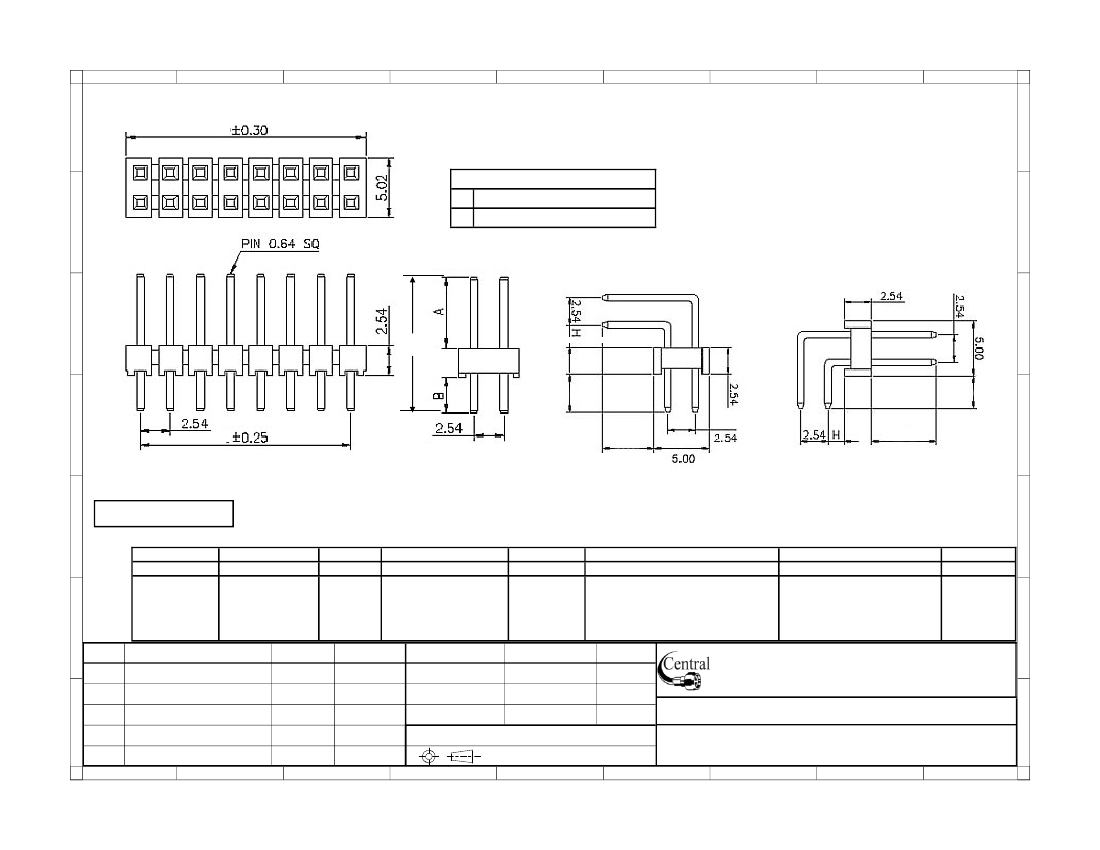

Dimensional Information [In (mm)]
C 0.100” (2.54mm) x No. of positions
D 0.100” (2.54mm) x No. of spaces
B
SPECIFICATIONS
Operating voltage:
Current rating:
Contact material:
Contact plating:
Insulator material:
Contact resistance:
Insulator resistance:
Withstanding:
Operating temperature:
250VAC
5 amps
Phosphor bronze
Tin, gold or duplex
PBT, glass reinforced, UL94V-0
10 milliohms max.
5,000 megohms min
1,000VAC for 1 min.
-55˚C to +125˚C
A
B
C
C
E
B
D
A
D
B
A
D
Straight
E
Reverse Right Angle
Right Angle
E
RoHS compliant
Series
APH
Male unshrouded
pin header
Insulator
No. of Rows
X
X
Blank=.100” (2.54mm) 1,2,3
C=.059” (1.5mm)
D=.134” (3.4mm)
E=.067” (1.7mm)
F=.200” (5.08mm)
Positions
XX
Single Row 1-40 Positions
Double Row 2-100 Positions
Triple Row 6-120 Positions
Type
XX
Blank=Straight
RA=Right Angle
RRA=Reverse
Right Angle
Contact Length (inches)
XXX
SDA=Standard Contact A (A=.240”, B=.120”)
SDB=Standard Contact B (A=.318”, B=.120”)
CSL=Customer specified length: (XXX/XXX)
(mating length(A)/overall length(E))
Shortest Pin
Plating
XX
TN=Tin contact plating
SGXX=Selective gold contact plating
GDXX=Gold contact plating
XX=Flash if blank, 5,10,15,30u”
HT=High Temp
Option
XX
Blank=None
HT=High Temp
F
F
G
Rev.
A PNT
B PNT
C PNT
Description
Date
Approved
5/14/08 Greg
3/18/10 Greg
04/07/12 Greg
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
APH-X-2-XX-XX-XXX-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Male unshrouded pin header, .100” pitch
