NCP300HSN48T1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> NCP300HSN48T1

NCP300HSN48T1: Description1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO5; CategoryPower/power management The power supply circuit; File Size164KB，22 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Related ProductsFound20parts with similar functions to NCP300HSN48T1

Download Datasheet Parametric View All

NCP300HSN48T1 Overview

1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO5

NCP300HSN48T1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	TSOP
package instruction	PLASTIC, SC-59, SOT-23, TSOP-5
Contacts	5
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	DETECTION THRESHOLD VOLTAGE IS 4.8V
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
length	3 mm
Number of channels	1
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	0.8/10 V
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply current (Isup)	0.0014 mA
Maximum supply voltage (Vsup)	10 V
Minimum supply voltage (Vsup)	0.8 V
Nominal supply voltage (Vsup)	1.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Threshold voltage nominal	+4.8V
Maximum time at peak reflow temperature	NOT SPECIFIED
width	1.5 mm

Preview

Download Datasheet

View All

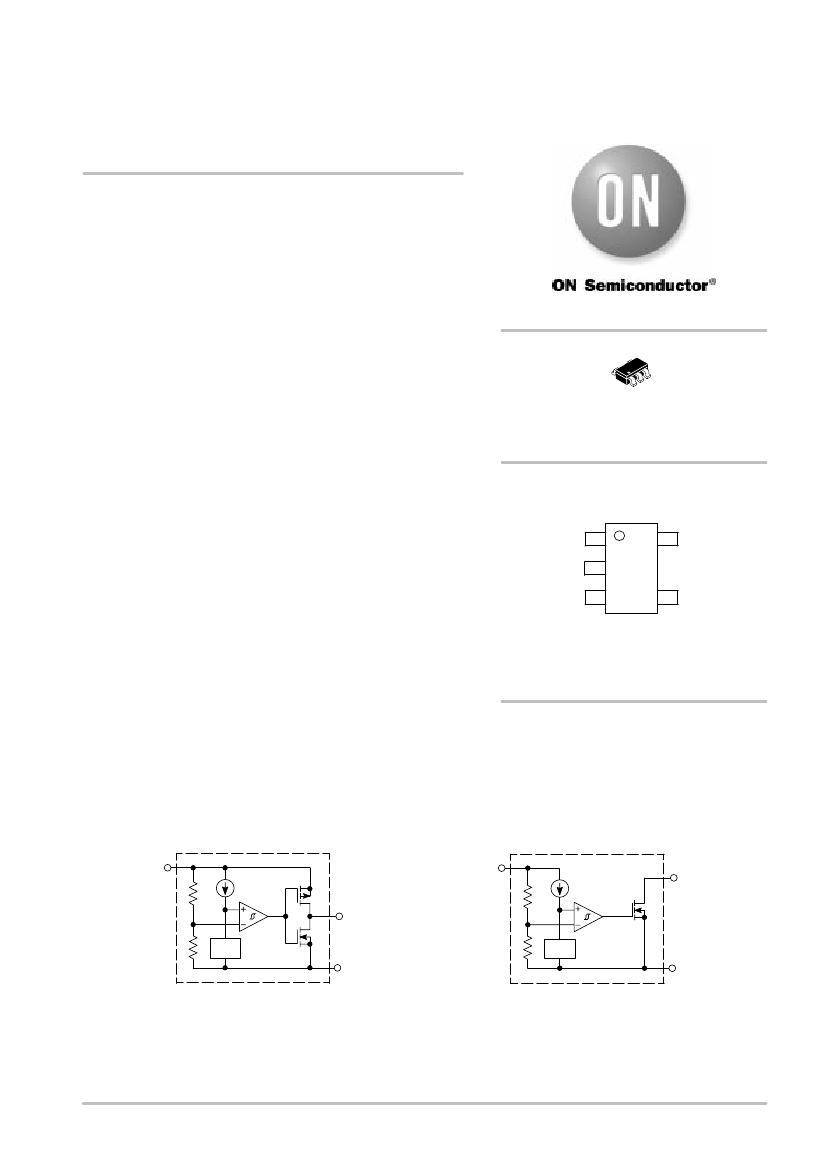

NCP300, NCP301

Voltage Detector Series

The NCP300 and NCP301 series are second generation ultra−low

current voltage detectors. These devices are specifically designed for

use as reset controllers in portable microprocessor based systems

where extended battery life is paramount.

Each series features a highly accurate undervoltage detector with

hysteresis which prevents erratic system reset operation as the

comparator threshold is crossed.

The NCP300 series consists of complementary output devices that

are available with either an active high or active low reset output. The

NCP301 series has an open drain N−Channel output with either an

active high or active low reset output.

The NCP300 and NCP301 device series are available in the

Thin TSOP−5 package with standard undervoltage thresholds.

Additional thresholds that range from 0.9 V to 4.9 V in 100 mV steps

can be manufactured.

Features

http://onsemi.com

THIN SOT23−5/TSOP−5/SC59−5

SN SUFFIX

CASE 483

PIN CONNECTIONS AND

MARKING DIAGRAM

Reset

Output

Input

GND

xxxYW

(Top View)

xxx = Specific Device Code

= Year

W = Work Week

N.C.

•

Quiescent Current of 0.5

Typical

High Accuracy Undervoltage Threshold of 2.0%

Wide Operating Voltage Range of 0.8 V to 10 V

Complementary or Open Drain Reset Output

Active Low or Active High Reset Output

Pb−Free Packages are Available

N.C.

Typical Applications

Microprocessor Reset Controller

Low Battery Detection

Power Fail Indicator

Battery Backup Detection

ORDERING INFORMATION

See detailed ordering and shipping information in the ordering

information section on page 20 of this data sheet.

NCP300xSNxxT1

Complementary Output Configuration

Input

NCP301xSNxxT1

Open Drain Output Configuration

Reset Output

ref

Reset Output

ref

GND

* The representative block diagrams depict active low reset output ‘L’ suffix devices. The comparator

inputs are interchanged for the active high output ‘H’ suffix devices.

This device contains 25 active transistors.

Figure 1. Representative Block Diagrams

Semiconductor Components Industries, LLC, 2004

October, 2004 − Rev. 14

Publication Order Number:

NCP300/D
