BG161-021-A-C-N-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG161-021-A-C-N-D

BG161-021-A-C-N-D: DescriptionBoard Connector, 21 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size142KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG161-021-A-C-N-D Overview

Board Connector, 21 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking,

BG161-021-A-C-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	316106335
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	9.1
body width	0.291 inch
subject depth	0.535 inch
body length	0.72 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	100 Cycles
Filter function	NO
maximum insertion force	3 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE6T
JESD-609 code	e4
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.191 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	21
UL Flammability Code	94V-0
Evacuation force-minimum value	0.3 N

Preview

Download Datasheet

View All

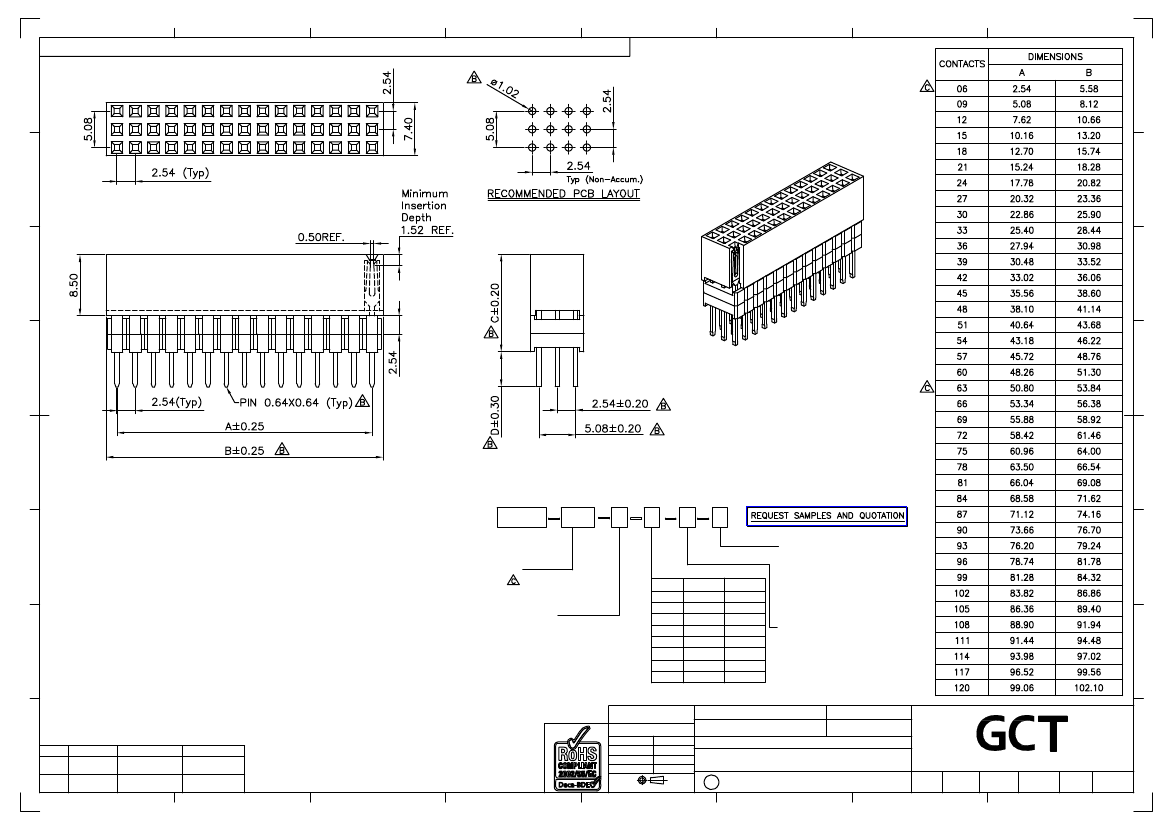

Global Connector Technology Ltd. - BG161: 2.54mm PITCH ELEVATED SOCKET, TRIPLE ROW, THROUGH-HOLE, VERTICAL

Ordering Grid

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

DIELECTRIC WITHSTANDING

耐电压

: AC 600 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG042

BG043

BG161

No. of Contacts

06 to 120

e.g. 06 = 006, 117 = 117

XXX

Packing

D = Tube (Standard)

F = Tube with Film

G = Plastic Box

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

DIM C

11.05

13.59

16.13

11.05

13.59

16.12

18.67

DIM D

2.50

7.35

4.85

2.30

12.2

9.65

7.10

4.70

Insulator Material

N = Nylon 6T (Standard)

L = LCP

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

X.X ± 0.25

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BG161

Description:-

08 APR 07

DETAIL

REV

DATE

DRAWING

RELEASE

08/04/07

PIN, PCB, & TOLERANCE

DIMENSION UPDATE

NO. OF CONTACTS

CHANGED

www.globalconnectortechnology.com

Scale

NTS

2.54mm PITCH ELEVATED SOCKET, TRIPLE ROW,

THROUGH-HOLE, VERTICAL

02/09/10

19/12/12

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Drawn by

E & OE

Sheet No.

1/1
