51006-03041-001 datasheet, PDF

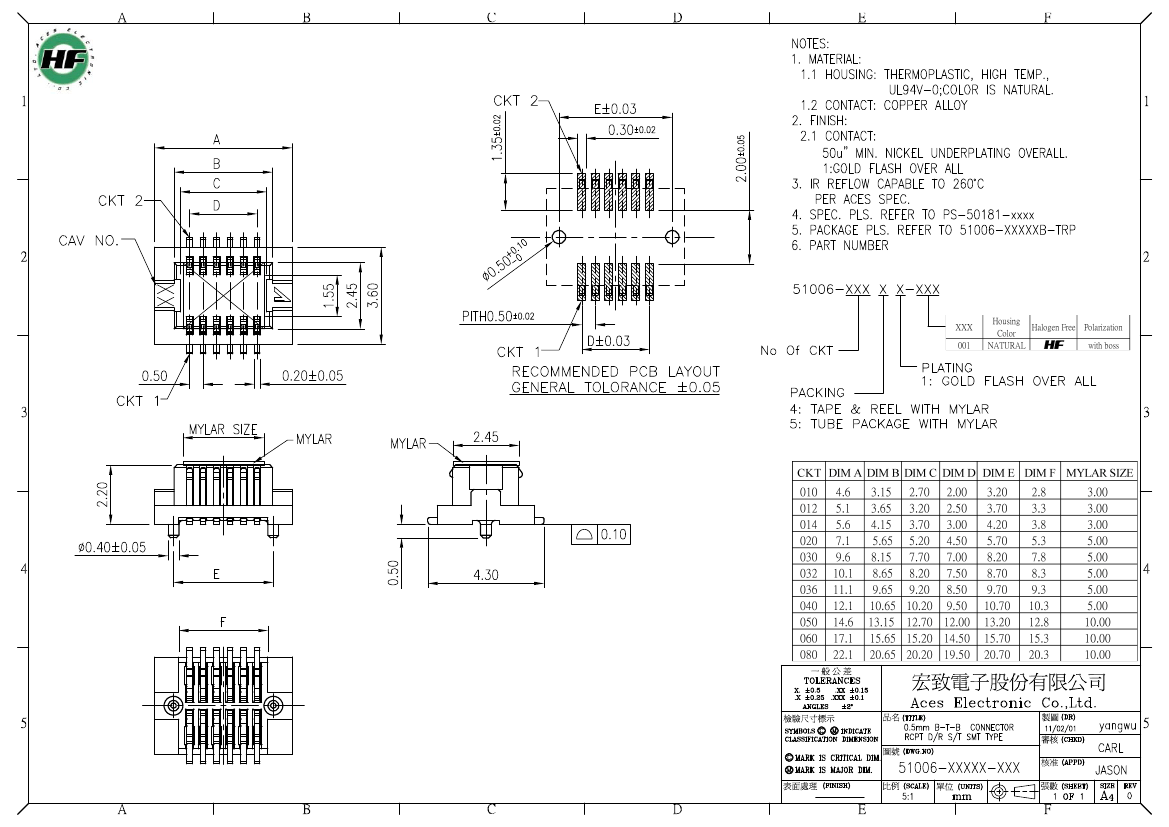

51006-03041-001: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size139KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

51006-03041-001 Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305582961
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.142 inch
subject depth	0.087 inch
body length	0.381 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	55 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	150VAC V
Durability	50 Cycles
maximum insertion force	.695 N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.3782 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
Evacuation force-minimum value	.0973 N
