KT2016A16369AGU18N

Description
TCXO, Sine, TCXO, CLIPPED SINE OUTPUT
CategoryPassive components    oscillator
File Size216KB,1 Pages
ManufacturerKyocera
Download Datasheet Parametric View All

KT2016A16369AGU18N Overview

TCXO, Sine, TCXO, CLIPPED SINE OUTPUT

KT2016A16369AGU18N Parametric

Parameter NameAttribute value
Objectid1251325937
Reach Compliance Codeunknown
YTEOL0
Oscillator typeCLIPPED SINE

KT2016A16369AGU18N Preview

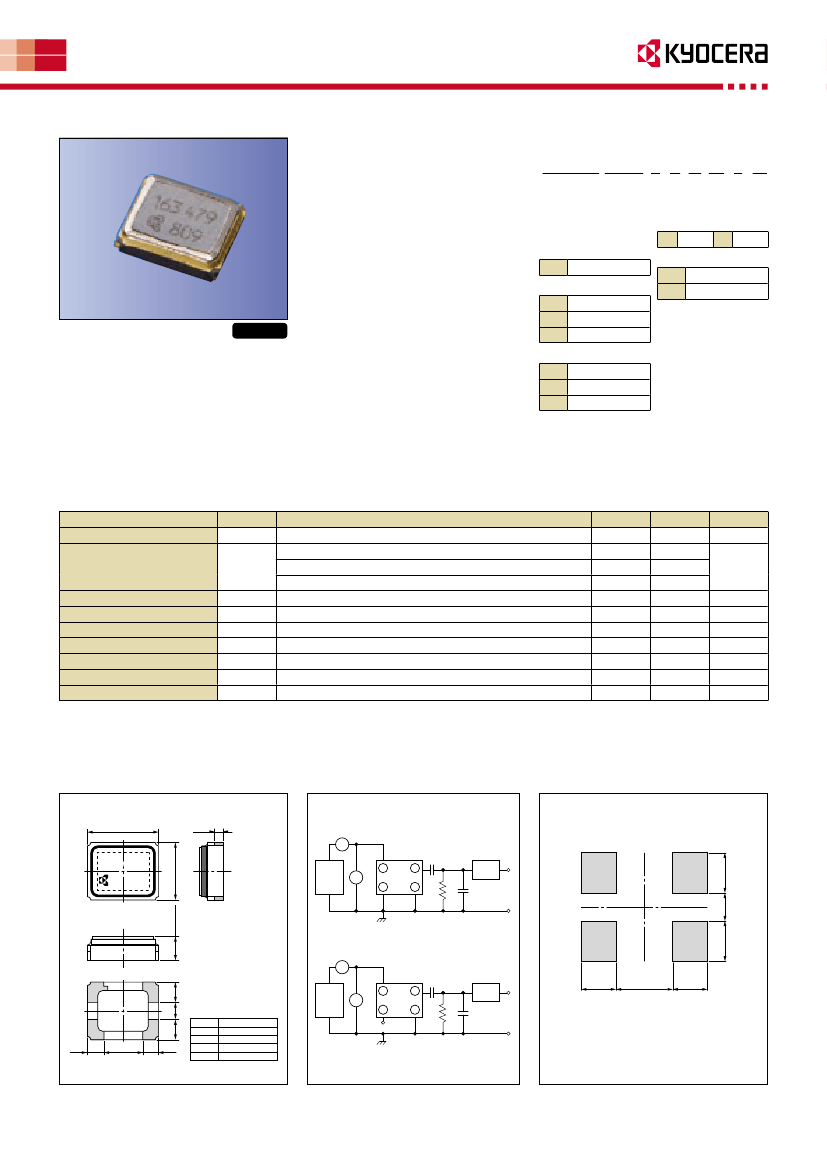

Temperature Compensated Crystal Oscillators (TCXO)
Surface Mount Type TCXO (LSI Type) KT2016 Series for GPS
2.0×1.6mm
Features
• Miniature SMD type
(2.0×1.6×0.8mm)
• Freq. temp. characteristics.
:
±0.5×10
-
6
/
-30
to
+85°C
• 1.68 to 3.45V drive available
• Reflow compatible
• Disable Function (Option)
How to Order
KT2016A 26000 A C W 18 T xx
③ ④ ⑤ ⑥ ⑦ ⑧
Supply Voltage
18
1.8V
28
2.8V
Series
Output Frequency
Freq. Temp. Chrst.
A
C
E
G
W
V
U
±0.5×10
-
6
-30°C
-20°C
-10°C
+85°C
+80°C
+75°C
Voltage Control Range
T
N
TCXO
Disable Function
Applications
• GPS Unit
Lower Operating Temp.
Option Code
RoHS Compliant
Upper Operating Temp.

Packaging (Tape & Reel 4000 pcs./ reel)

Specifications
Item
Output Frequency Range
Frequency Tolerance
Frequency Aging
Storage Temperature Range
Operating Temperature Range
Supply Voltage
Output Level
Current Consumption
Harmonics
Symbol
fo
f
_tol
f
_age
T
_stg
T
_use
V
CC
Vpp
I
CC
Conditions
Standard Frequency: 16.368, 16.369, 19.2, 26, 27.456, 33.6, 38.4, 52
vs Temperature
vs Load
vs Voltage
Per Year
Min.
13
-0.5
-0.1
-0.2
-1
-40
-30
1.68
0.8
Max.
52
+0.5
+0.1
+0.2
+1
+85
+85
3.45
2
-5
Units
MHz
×10
-
6
×10
-
6
°C
°C
V
Vp-p
mA
dBc
Clipped Sine
*
, Load: 10k ohm / / 10pF
*
: A DC-cut capacitor is not embedded in this crystal oscillator. Connect a DC-cut capacitor (
1nF) to the line-out terminal of the oscillator.
Dimensions
2.0±0.15
0.27
(Unit: mm)
Test Circuit
Test circuit 1
Non Enable/ Disable Function
A
Co
Spectrum Analyzer &
Counter, Oscilloscope
FET
PROBE
Recommended Land Pattern
(Unit: mm)
#4
#3
1.6±0.15
Marking Area
POWER
SUPPLY
Vcc
V
1
TCXO
2
RL
CL
0.8 max.
Test circuit 2
With Enable/ Disable Function
A
POWER
SUPPLY
Vcc
#1
#2
0.6
0.4
V
4
1
TCXO
E/ D
3
2
Co
Spectrum Analyzer &
Counter, Oscilloscope
FET
PROBE
0.6
1.2
0.6
0.4
#4
1.20
#3
0.4
#1pin
#2pin
#3pin
#4pin
Pin Configuration
GND/ E/ D function
GND
OUTPUT
+Vcc
RL
CL
0.6
Enable/ Disable Function
Please inquire details.
RL=10kΩ±10% CL=10pF±10%
CL include Probe Capacitance
Co: DC Cut Capacitance
Note: A capacitor of value 0.01µF between V
CC
and GND is recommended.
0.8
0.4
#1
#2
0.8
4
3
