ABM12-80.000MHZ-7U: DescriptionParallel - Fundamental Quartz Crystal, 80MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size1MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM12-80.000MHZ-7U Overview

Parallel - Fundamental Quartz Crystal, 80MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN

ABM12-80.000MHZ-7U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1291195638
package instruction	ROHS COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Country Of Origin	Taiwan
YTEOL	7.32
Other features	BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.001%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	80 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
physical size	L1.6XB1.2XH0.4 (mm)/L0.063XB0.047XH0.016 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

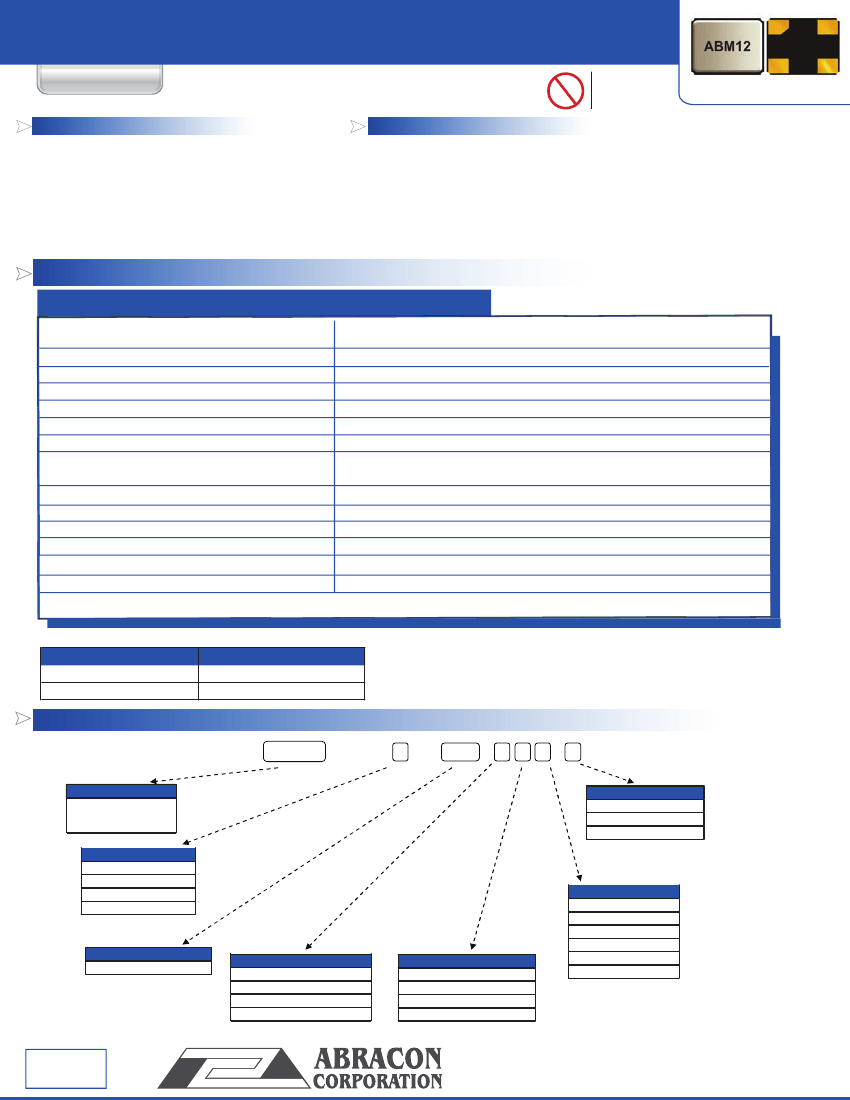

ULTRA MINIATURE CERAMIC SMD CRYSTAL

ABM12

FEATURES:

• Suitable for RoHS reflow profile

• Available tight tolerance and stability

• Electron beam sealed ceramic package assures

high precision and reliability

• Smallest package size in industry1.6 x 1.2 x 0.46mm

Pb

RoHS

Compliant

APPLICATIONS:

• Blue-tooth, Wireless applications

• Computers, Modems, Microprocessors

• Communication, Test equipment

• High density applications

• PCMCIA

• Portable radios and MP3 players

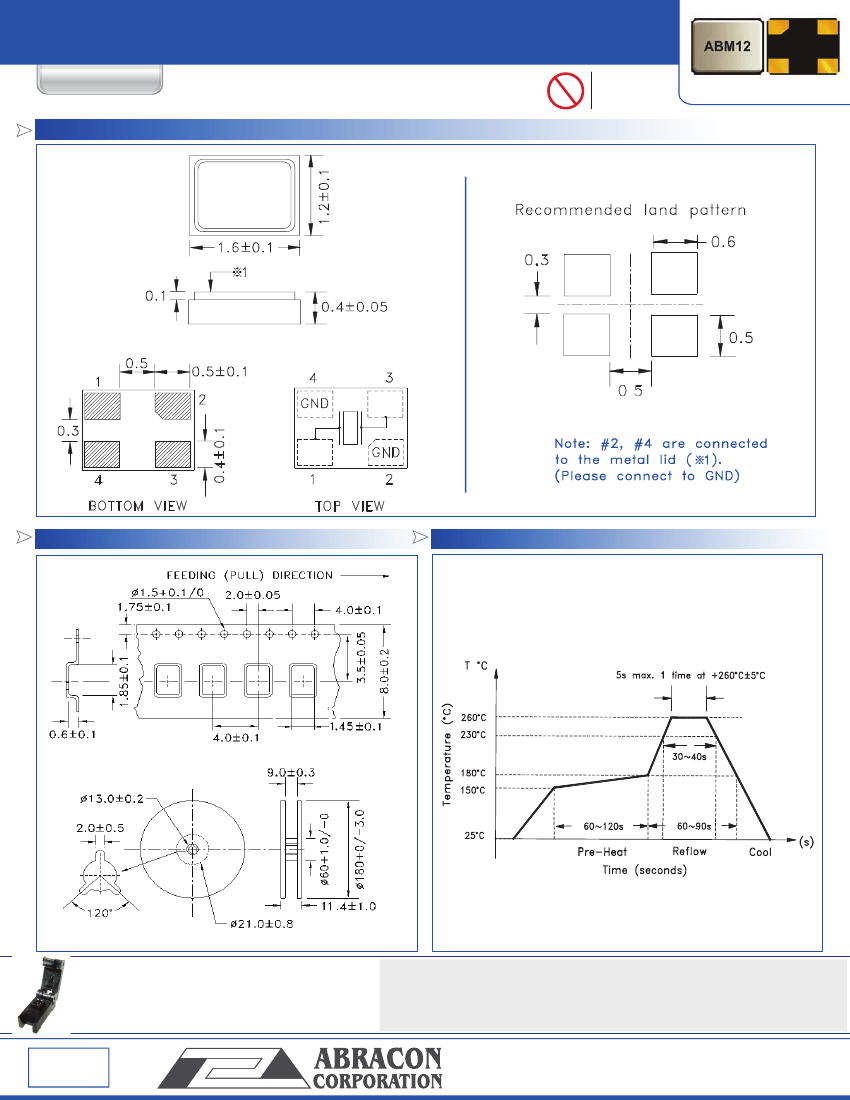

1.6 x 1.2 x 0.4mm

| | | | | | | | | | | | | |

|

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency range:

Standard Frequencies:

Operation mode:

Operating temperature:

Storage temperature:

Frequency tolerance*:

Frequency stability over

the operating temperature (Ref to +25° C)*:

Equivalent series resistance:

Shunt capacitance C0:

Load capacitance CL:

Drive level:

Aging @ 25° C per year:

Insulation resistance:

ABM12 Series

26.000 MHz to 80.000 MHz

26.000, 32.000, and 36.000 MHz

Fundamental

- 10 °C to + 50 °C (see options)

- 40 °C to + 85 °C

± 50 ppm max. (see options)

(Contact Abracon for other frequencies)

± 50 ppm max. (see options)

see Table 1

5 pF max.

8 pF (see options)

100 µW max.

± 5 ppm max.

500 MΩ min. with 100Vdc ± 15Vdc

(Note)*: Tolerance and Temp stability do not include Mechanical, Environmental, and Aging frequency shift.

TABLE 1- Standard ESR

ESR(xxxΩ

max)

Frequency (MHz )

26.00000 - 30.00000

150

100

30.00001 - 80.00000

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

Fre quency in MHz

e.g.

24.576MHz

14.31818MHz

26.000MHz

Load Capaci tance

Blank

: 8pF

5:

5pF

6: 6pF

7:

7pF

ABM12

-

MHz

-

-R

-

Packaging

Blank:Bulk

T:

1000pcs

/reel**

T3: 3000pcs /ree l*

* T3 is standard for volume production orders.

**T is available with an extra charge.

Conta ct

Abra

con for othe r

va lue s

.

ESR of other than STD

S e e table

1

Operating Te mp .

Blank

: -10°C

~

+50° C

A:

-10° C

~

+60° C

B:

-20° C

~

+70° C

D: -40° C

~

+85° C

Freq. Tole rance

Blank: ± 50

ppm

7: ± 15

ppm

2: ±

20 ppm

4: ±

30 ppm

Fre q. S tability

Blan

k:

±

50 ppm

(*)

U: ±

10 ppm

(*)

G:

± 15

pp m(**)

X: ±

20 ppm(**

*)

Y: ±

30 ppm

Q:

±

100 ppm

(*) 0° to +50°C only

(**) -10º to +60ºC and -0º

to +50ºC

(***) -20º to +70ºC, -10º to

+60ºC, and -0º to +50ºC

ABRACON IS

ISO9001:2008

CE RTIFIED

Revised: 01.24.12

30332 Esperanza, Rancho Santa

Margarita,

California 92688

tel 949-546-8000

|

fax 949-546-8001

|

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
