20CI321611310 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 20CI321611310

20CI321611310: DescriptionPassive Filter; CategoryAnalog mixed-signal IC filter; File Size163KB，2 Pages; ManufacturerEasy Magnet Corp.

Download Datasheet Parametric View All

20CI321611310 Overview

Passive Filter

20CI321611310 Parametric

Parameter Name	Attribute value
Objectid	913382601
package instruction	1206
Reach Compliance Code	unknown
shell code	1206
Maximum DC resistance	0.01 Ω
maximum frequency	100 MHz
minimum frequency	100 MHz
high	1.1 mm
length	3.2 mm
Rated current	6 A
width	1.6 mm

Preview

Download Datasheet

View All

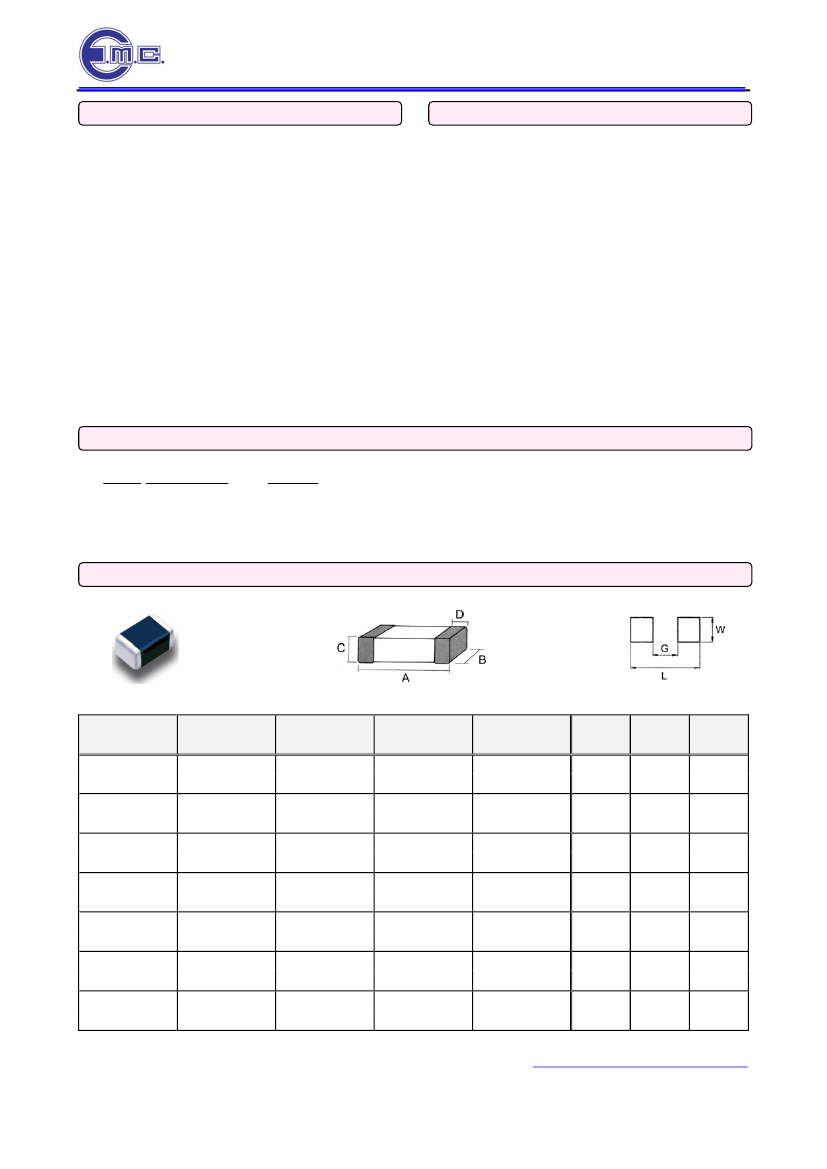

Multilayer Ferrite Chip Beads

CI Series (Large Current)

Features

High density packaging with a pitch of 2.54 mm

（0.1

inch）max. is possible. This series requires less

space and has greater EMI suppression effects.

Different types with the same shape are available.

Excellent in physical properties, such as terminal

strength, flexure strength, soldering resistance and

solderability.

Applicable to both flow and reflow soldering.

High impedance cover wide frequency ranges.

CI series can be used in high current circuits due to

its low DC resistance.

Applications

Computers

and

peripheral

devices,

personal

computers, VCR and cameras.

Noise suppression in digital equipments, car stereo,

car

engines

controllers

and

electronic

instruments.

Communication equipment.

Product Identifications

(1)(2)

(1) Material Code

(3)

(4)

(2) Product Symbol: Multilayer Chip Beads

(3) Dimensions: Length (A)

Width (B)

Thickness (C)

(4) Impedance

Shapes and Dimensions / Recommended PC Board Pattern

Dimensions in mm (inch)

TYPE

100505

160808

201209

321611

322513

451616

453215

1.0±0.1

(0.040±0.004)

1.6±0.2

(0.063±0.008)

2.0±0.2

(0.079±0.008)

3.2±0.2

(0.126±0.008)

3.2±0.2

(0.126±0.008)

4.5±0.2

(0.177±0.008)

4.5±0.2

(0.177±0.008)

0.5±0.1

(0.020±0.004)

0.8±0.2

(0.031±0.008)

1.2±0.2

(0.047±0.008)

1.6±0.2

(0.063±0.008)

2.5±0.2

(0.098±0.008)

1.6±0.2

(0.063±0.008)

3.2±0.2

(0.126±0.008)

0.5±0.1

(0.020±0.004)

0.8±0.2

(0.031±0.008)

0.9±0.2

(0.035±0.008)

1.1±0.2

(0.043±0.008)

1.3±0.2

(0.051±0.008)

1.6±0.2

(0.063±0.008)

1.5±0.2

(0.059±0.008)

0.1 (MIN.)

(0.004)

0.3±0.2

(0.012±0.008)

0.5±0.3

(0.020±0.012)

0.5±0.3

(0.020±0.012)

0.5±0.3

(0.020±0.012)

0.5±0.3

(0.020±0.012)

0.5±0.3

(0.020±0.012)

2.20

(0.086)

2.80

(0.110)

3.20

(0.126)

4.40

(0.173)

4.40

(0.173)

5.80

(0.228)

5.80

(0.228)

0.70

(0.028)

1.00

(0.039)

1.50

(0.059)

1.80

(0.071)

2.70

(0.106)

1.80

(0.071)

3.40

(0.134)

0.40

(0.016)

0.60

(0.024)

0.60

(0.024)

1.20

(0.047)

1.20

(0.047)

2.00

(0.079)

2.00

(0.079)

Http://www.easymagnet.com.tw

-1-
