ASVTX-H08-A-12.800MHZ-D10 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASVTX-H08-A-12.800MHZ-D10

ASVTX-H08-A-12.800MHZ-D10: DescriptionCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size1013KB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASVTX-H08-A-12.800MHZ-D10 Overview

CMOS Output Clock Oscillator

ASVTX-H08-A-12.800MHZ-D10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1340260557
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	1 PPM/FIRST YEAR
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	1%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	12.8 MHz
Maximum operating temperature	55 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 2.3mm
longest rise time	3 ns
Maximum supply voltage	2.94 V
Minimum supply voltage	2.66 V
Nominal supply voltage	2.8 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

VOLTAGE CONTROLLED SMD TEMPERATURE COMPENSATED

CRYSTAL OSCILLATOR

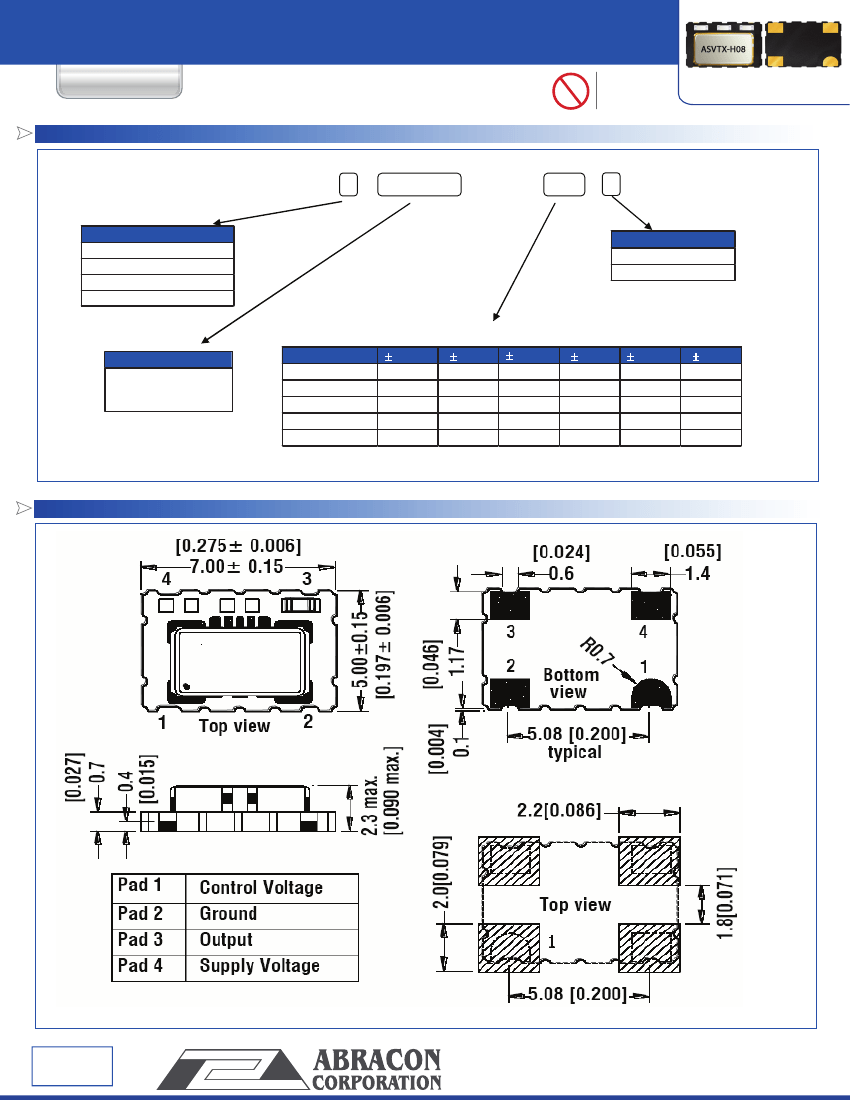

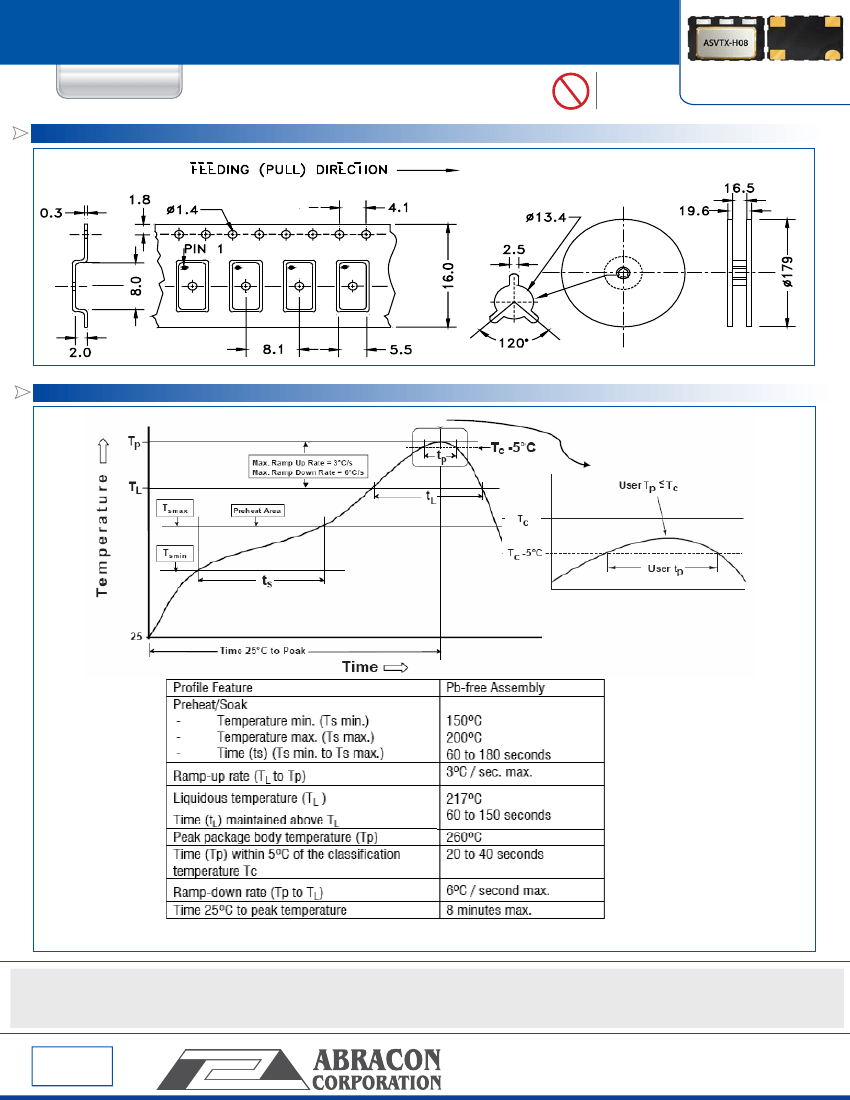

ASVTX-H08

FEATURES:

• Compact and low height with low phase noise

• Suitable for RoHS reflow profile

• Low current consumption

APPLICATIONS:

• Cellular and cordless phones

• Standard OSC

for

exact equipment

• Mobile communication equipment

•

Portable

radio equipment and music player

RoHS

Compliant

7.0 X 5.0 X 2.5mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency:

ASVTX-H08 Series

1.000MHz to 156.000MHz (Vdd=2.8, 3.0, and 3.3V), 1.000MHz to 160.000MHz (Vdd=5.0V)

Standard Frequencies

Operating Temperature

Storage Temperature

Frequency Stability:

vs +25°C

vs Operating Temp.

vs Aging

vs Supply Voltage

vs Load

vs Reflow

Supply Voltage (Vdd):

Current Consumption:

Output Type:

Output Logic Level:

Output Load:

10, 12.8, 13, 14.4, 16.0, 16.384, 19.2, 19.44, 19.68, 20, 25, 27, 38.88, 77.76, 155.52MHz

- 30° C to + 85° C (See Table 3 for options)

- 55° C to + 120° C

± 2ppm

±2.5ppm standard (See Table 3 for options)

± 1ppm/1st year max. at +25°C

± 0.2ppm (± 5% change input voltage change)

± 0.2ppm (± 10%loading conditionchange)

±1ppm max.,1 reflow and measured 24 hours afterwards.

3.0V ±5% Standard (See options)

See Table 1

Square Wave

Logic "1": 0.9*Vdd min., Logic "0": 0.1*Vdd max.

15pF

Phase Noise (Reference only):

See Table 2

Rise and Fall Time:

1.0 to 3.0 ns max. (frequency depandent) measured at 20% « 80% of the waveform

Duty Cycle (Symmetry) @ 50% VDD:

50%±10%

Start-up time:

10ms max.

Table 1: Current Consumption

2.8V

3.3V

8.192MHz

2mA

5mA

Current Consumption (typical)

10MHz

24.576MHz

60MHz

3mA

5mA

11mA

4mA

6mA

14mA

4mA

6mA

14mA

7mA

10mA

24mA

150MHz

19mA

23mA

36mA

Table 2: Phase Noise and RMS Jitter (typical values at +25°C)

Freq.

(MHz)

10 (3.3V)

10 (5V)

40 (3.3V)

64 (3.3V)

150 (3.3V)

155.52 (3.3V)

Freq.

(MHz)

10 (3.3V)

10 (5V)

40 (3.3V)

64 (3.3V)

150 (3.3V)

155.52 (3.3V)

100kHz

-143 dBC/Hz

-145 dBC/Hz

-116 dBC/Hz

-117 dBC/Hz

-112 dBC/Hz

-108 dBC/Hz

10Hz

-96 dBC/Hz

-93 dBC/Hz

-71 dBC/Hz

-68 dBC/Hz

-63 dBC/Hz

-54 dBC/Hz

100Hz

-120dBC/Hz

-120 dBC/Hz

-109 dBC/Hz

-99 dBC/Hz

-91 dBC/Hz

Offset

1MHz

-149 dBC/Hz

-152 dBC/Hz

-108 dBC/Hz

-109 dBC/Hz

-105 dBC/Hz

5MHz

-150 dBC/Hz

-152 dBC/Hz

-116 dBC/Hz

-120 dBC/Hz

-122 dBC/Hz

Offset

1kHz

-135 dBC/Hz

-137 dBC/Hz

-118 dBC/Hz

-108 dBC/Hz

-110 dBC/Hz

10kHz

-142 dBC/Hz

-144 dBC/Hz

-119 dBC/Hz

-121 dBC/Hz

-116 dBC/Hz

RMS Jitter

2.5ps

1.8ps

30.0ps

18.0ps

10.0ps

11.4ps

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 08.26.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
