EN25B16T-100QIP datasheet, PDF

Datasheet> All Categories > storage> storage> EN25B16T-100QIP

EN25B16T-100QIP: DescriptionFlash Memory,; Categorystorage storage; File Size474KB，37 Pages; ManufacturerEon; Websitehttp://www.essi.com.tw/

Download Datasheet Parametric View All

EN25B16T-100QIP Overview

Flash Memory,

EN25B16T-100QIP Parametric

Parameter Name	Attribute value
Objectid	108695690
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

EN25B16

16 Mbit Serial Flash Memory with Boot and Parameter Sectors

FEATURES

•

Single power supply operation

- Full voltage range: 2.7-3.6 volt

•

16 M-bit Serial Flash

- 16 M-bit/2048 K-byte/8192 pages

- 256 bytes per programmable page

•

High performance

- 100MHz clock rate

•

Low power consumption

- 5 mA typical active current

- 1

μA

typical power down current

•

Flexible Sector Architecture:

- Two 4-Kbyte, one 8-Kbyte, one 16-Kbyte,one

32-Kbyte, and thirty one 64-Kbyte sectors

•

Software and Hardware Write Protection:

- Write Protect all or portion of memory via

software

- Enable/Disable protection with WP# pin

•

High performance program/erase speed

Byte program time: 7µs typical

Page program time: 1.5ms typical

Sector erase time: 300 to 800ms typical

Chip erase time: 18 Seconds typical

•

Minimum 100K endurance cycle

•

Package Options

- 8 pins SOP 200mil body width

- 8 contact VDFN

- 8 pins PDIP

- 16 pin SOP 300mil body width

- All Pb-free packages are RoHS compliant

•

Commercial and industrial temperature

Range

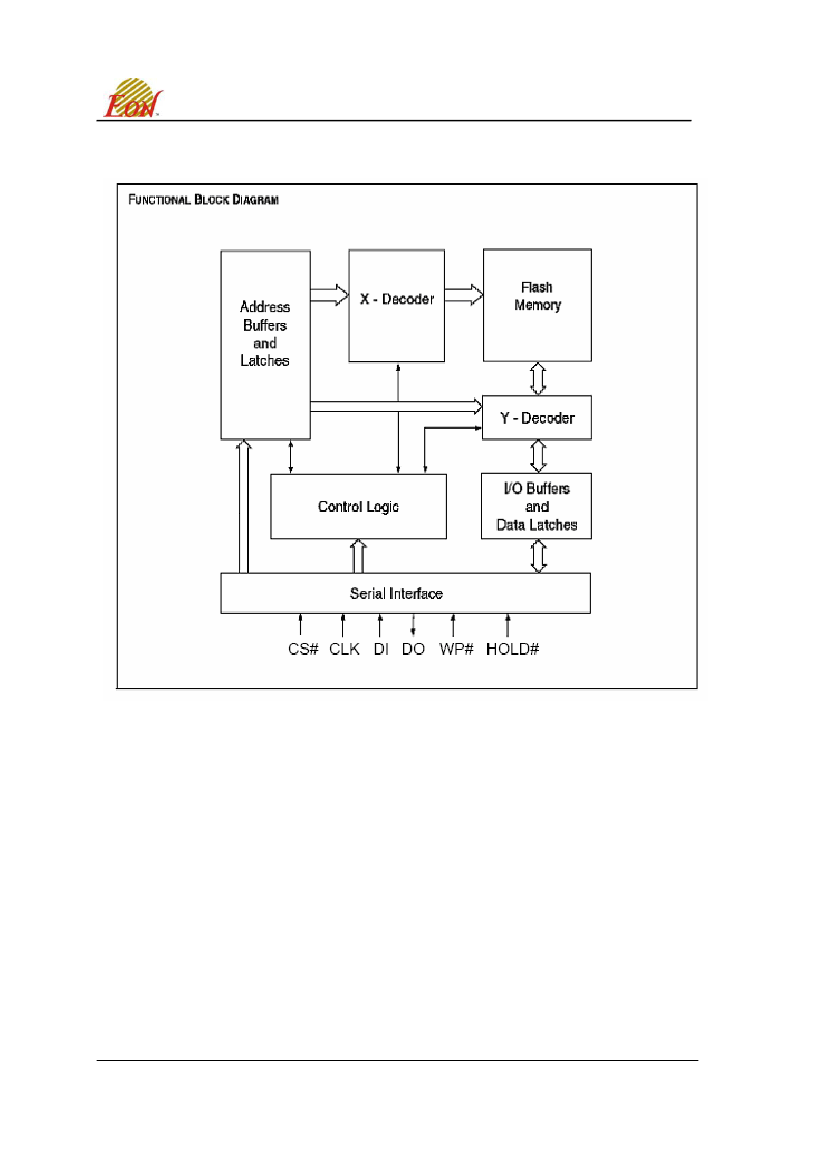

GENERAL DESCRIPTION

The EN25B16 is a 16M-bit (2048K-byte) Serial Flash memory, with advanced write protection

mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to

256 bytes at a time, using the Page Program instruction.

The EN25B16 has thirty six sectors including thirty one sectors of 64KB, one sector of 32KB, one sector

of 16KB, one sector of 8KB and two sectors of 4KB. This device is designed to allow either single Sector

at a time or full chip erase operation. The EN25B16 can protect boot code stored in the small sectors for

either bottom or top boot configurations. The device can sustain a minimum of 100K program/erase cycles

on each sector.

This Data Sheet may be revised by subsequent versions

or modifications due to changes in technical specifications.

Rev. E, Issue Date: 2007/06/07

EN25B16

SIGNAL DESCRIPTION

Serial Data Input (DI)

The SPI Serial Data Input (DI) pin provides a means for instructions, addresses and data to be

serially written to (shifted into) the device. Data is latched on the rising edge of the Serial Clock (CLK)

input pin.

Serial Data Output (DO)

The SPI Serial Data Output (DO) pin provides a means for data and status to be serially read from (shifted

out of) the device. Data is shifted out on the falling edge of the Serial Clock (CLK) input pin.

Serial Clock (CLK)

The SPI Serial Clock Input (CLK) pin provides the timing for serial input and output operations. ("See SPI

Mode")

Chip Select (CS#)

The SPI Chip Select (CS#) pin enables and disables device operation. When CS# is high the device is

deselected and the Serial Data Output (DO) pin is at high impedance. When deselected, the devices

power consumption will be at standby levels unless an internal erase, program or status register cycle is

in progress. When CS# is brought low the device will be selected, power consumption will increase to

active levels and instructions can be written to and data read from the device. After power-up, CS# must

transition from high to low before a new instruction will be accepted.

Hold (HOLD#)

The HOLD pin allows the device to be paused while it is actively selected. When HOLD is brought low,

while CS# is low, the DO pin will be at high impedance and signals on the DI and CLK pins will be ignored

(don’t care). The hold function can be useful when multiple devices are sharing the same SPI signals.

Write Protect (WP#)

The Write Protect (WP#) pin can be used to prevent the Status Register from being written. Used in

conjunction with the Status Register’s Block Protect (BP0, BP1and BP2) bits and Status Register Protect

(SRP) bits, a portion or the entire memory array can be hardware protected.

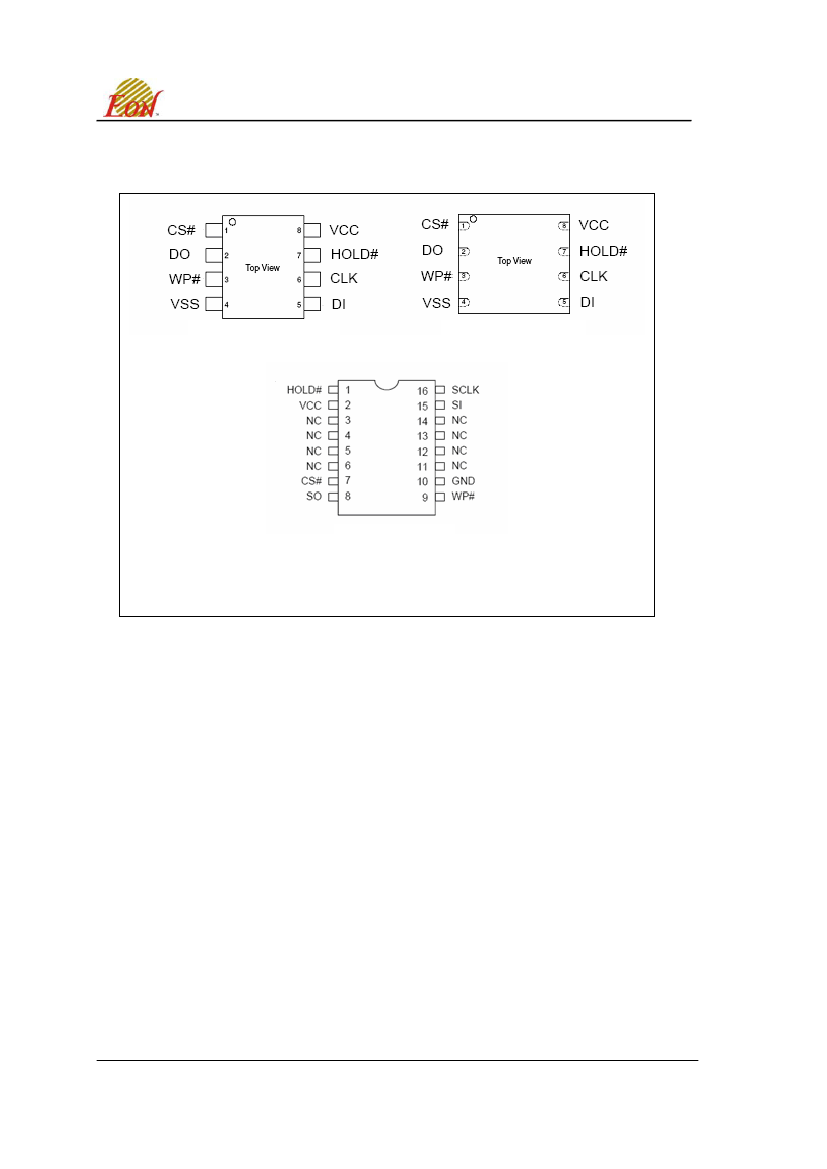

Table 1. PIN Names

Symbol

CLK

CS#

WP#

HOLD#

Vcc

Vss

Pin Name

Serial Clock Input

Serial Data Input

Serial Data Output

Chip Enable

Write Protect

Hold Input

Supply Voltage (2.7-3.6V)

Ground

This Data Sheet may be revised by subsequent versions

or modifications due to changes in technical specifications.

Rev. E, Issue Date: 2007/06/07
