214815: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

214815 Overview

D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, Receptacle,

214815 Parametric

Parameter Name	Attribute value
Objectid	2093838963
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Other features	PKG 75PCS/REEL
body width	0.496 inch
subject depth	0.248 inch
body length	1.547 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.108 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	7.5 A
Guideline	UL,VDE,CSA
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.209 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

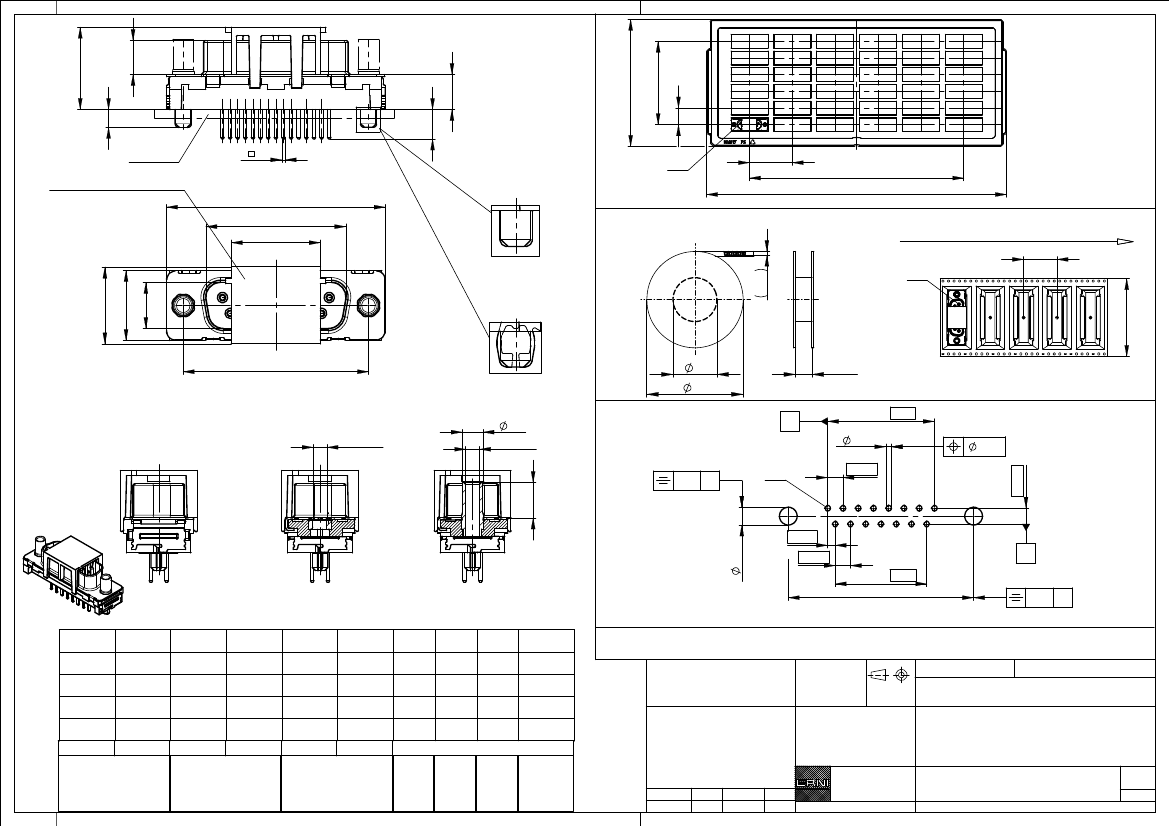

Verpackt in Tray

Verpackungseinheit 36 St.

14,8

5,8

5 x 18 = 90

max. 138

tray packaging

packaging unit 36 pcs

+0,3

6,3

3,2

5,3

Leiterplatte

0,6

Variante 1

18

pcb

version 1

hood only on version 1

Ansaughaube nur bei Version 1

Bestückung kraftlos

+0,2

39,3

-0,4

+0,2

Pin 1

46,2

5 x 46,2 = 231

powerless assembly

25,1

16

Variante 2

12,6

±0,3

+0,2

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

Abspulrichtung -

Reel

version 2

13,8

Bestückung mit Kraft

8,25

33,3

±0,1

150

56,5

ohne /

without

max. Einschraubtiefe 3,7 mm

Mutter /

nut

Bolzen /

bolt

330

thread depth max. 3,7 mm

max. Einschraubtiefe 5,5 mm

thread depth max. 5,5 mm

3,7

Layoutvorschlag:

Gewinde

/ thread

M3

/ #4-40

recommended layout:

0,05

B

Pin 1

A

7 x 2,74 = 19,18

1

-0,06

2,74

+0,09

(15x)

0,05

2,84

Gewinde

/ thread

M3

/ #4-40

M 1:1

3,2

±0,1

1,37

2,74

6 x 2,74 = 16,44

Beschriftung nach Bedruckungsvorschrift 174538

33,3

±0,05

Sonstige Angaben siehe Zeichnung 204625 /

Additional indications according to drawing 204625

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

#4-40

M3

#4-40

M3

137

Ident-Nr.

237

ohne

Mutter

Bolzen Bemerkung

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

6,4

B

Part marking according to specification 174538

Anschlussbereich verzinnt

0,05

A

terminal area tin plating

174987

194070

194071

194072

223450 194073

137

Ident-Nr.

237

137

Ident-Nr.

237

X

214815

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

part-no. tape &reel

Variante 1

version 1

part-no. tray

Variante 1

version 1

part-no. tray

Variante 2

version 2

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

D

Index

26.11.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 15-THR-5,3-6,3-BA8

TMC-P 15-THR-5,3-6,3-type 8

without

thread

bolt

remark

www.ERNI.com

Class

144901

TMCP

56

I

assembly with force

ht

nic le

eit lab

r Z vai

zu t a

no

21,2

f

lie

ba

er

r

off Direction

24

Pin 1

A3
