54LS132DM datasheet, PDF - EEWORLD Datasheet

54LS132DM: DescriptionNAND Gate, TTL, CDIP14,; Categorylogic logic; File Size194KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

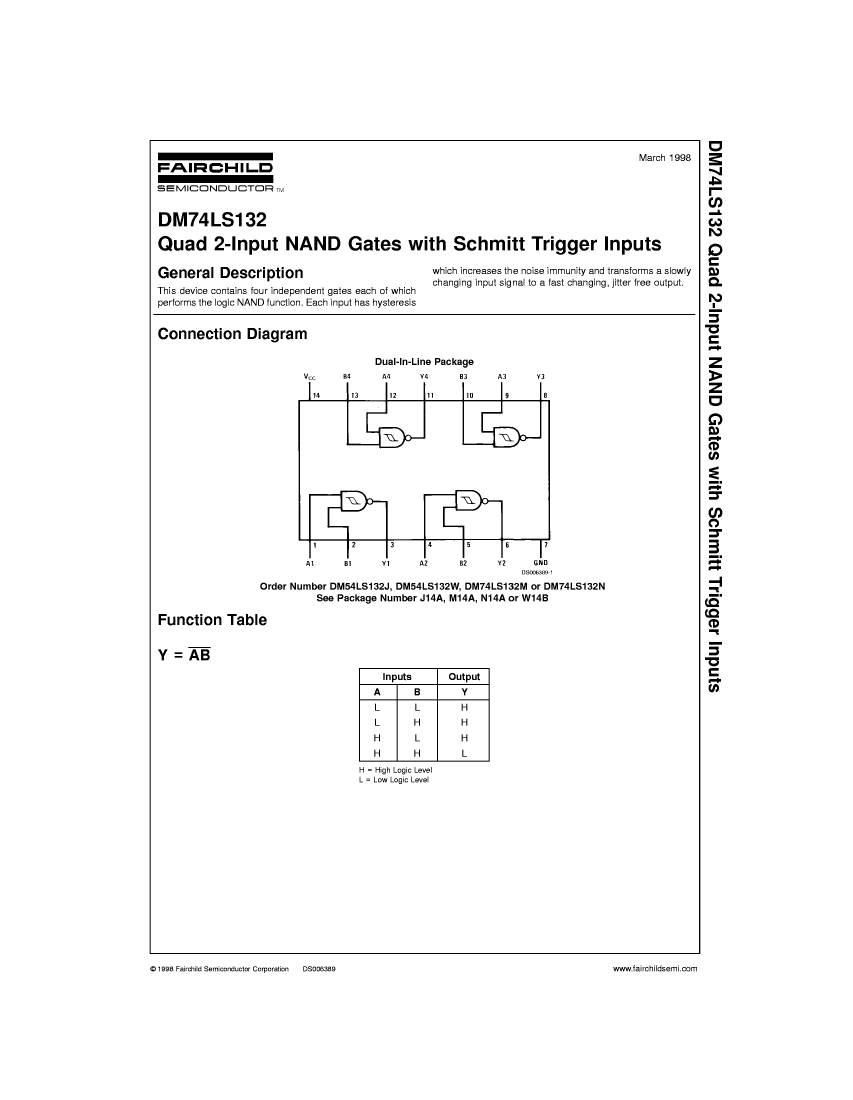

54LS132DM Overview

NAND Gate, TTL, CDIP14,

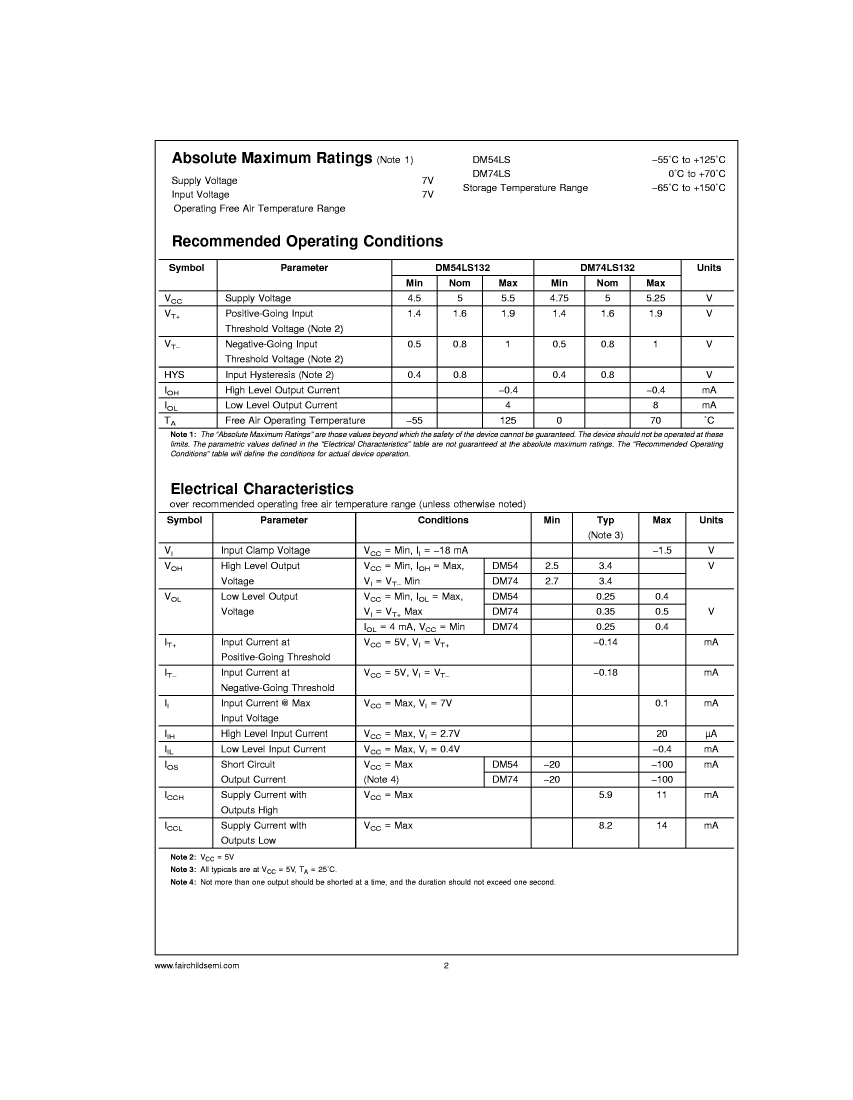

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1436003272

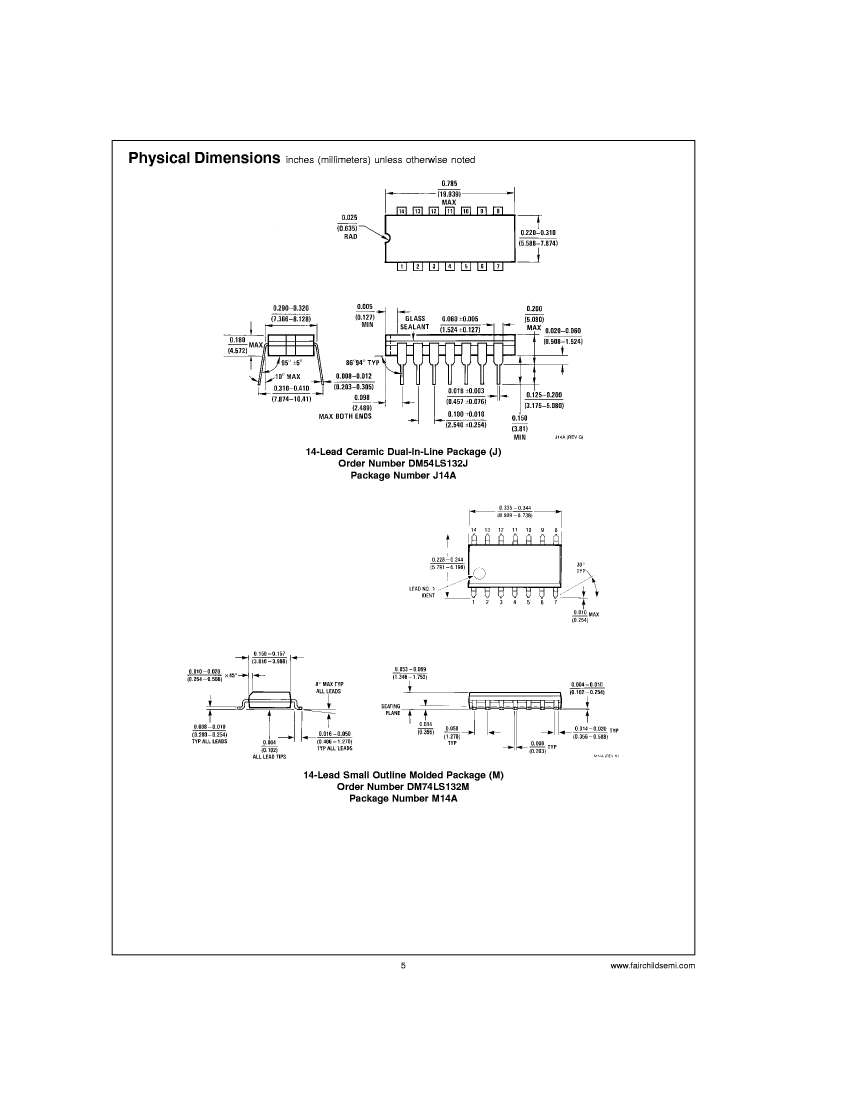

package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
YTEOL	0
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	NAND GATE
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Schmitt trigger	YES
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
