300HC2V08C

Description
Board Connector, 8 Contact(s), 2 Row(s), 0.118 inch Pitch, Locking, Black Insulator
CategoryThe connector    The connector
File Size84KB,1 Pages
ManufacturerOn-Shore Technology ( OST )
Websitehttp://www.on-shore.com

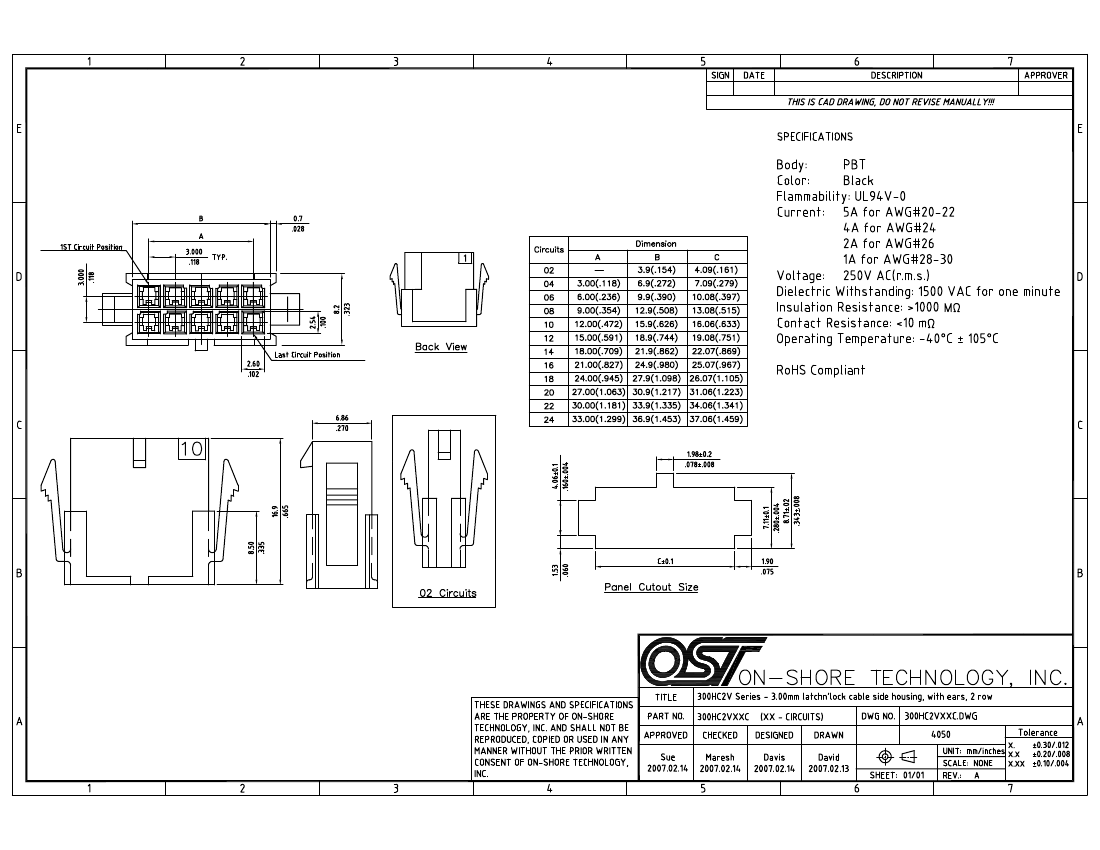

Download Datasheet Parametric View All

300HC2V08C Overview

Board Connector, 8 Contact(s), 2 Row(s), 0.118 inch Pitch, Locking, Black Insulator

300HC2V08C Parametric

Parameter NameAttribute value
Objectid304410742
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
subject depth0.665 inch
body length0.563 inch
Connector typeBOARD CONNECTOR
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
Plug contact pitch0.118 inch
Match contact row spacing0.118 inch
Installation option 1LOCKING
Installation option 2MOUNTING FLANGE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)5 A
GuidelineUL
Total number of contacts8
Maximum wire diameter20 AWG
Minimum wire diameter22 AWG
