Part Number

Search

3-2057756-5

Description

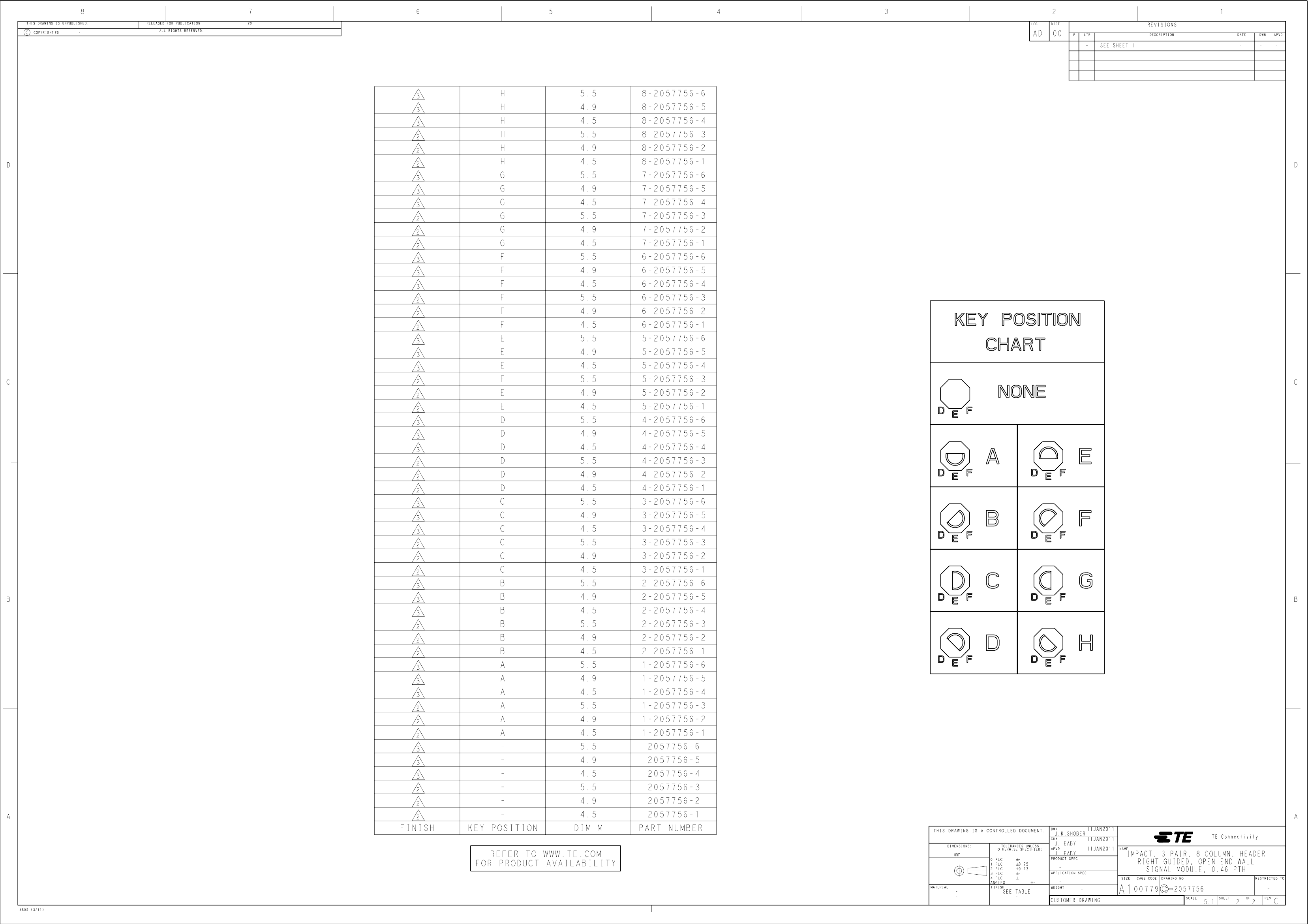

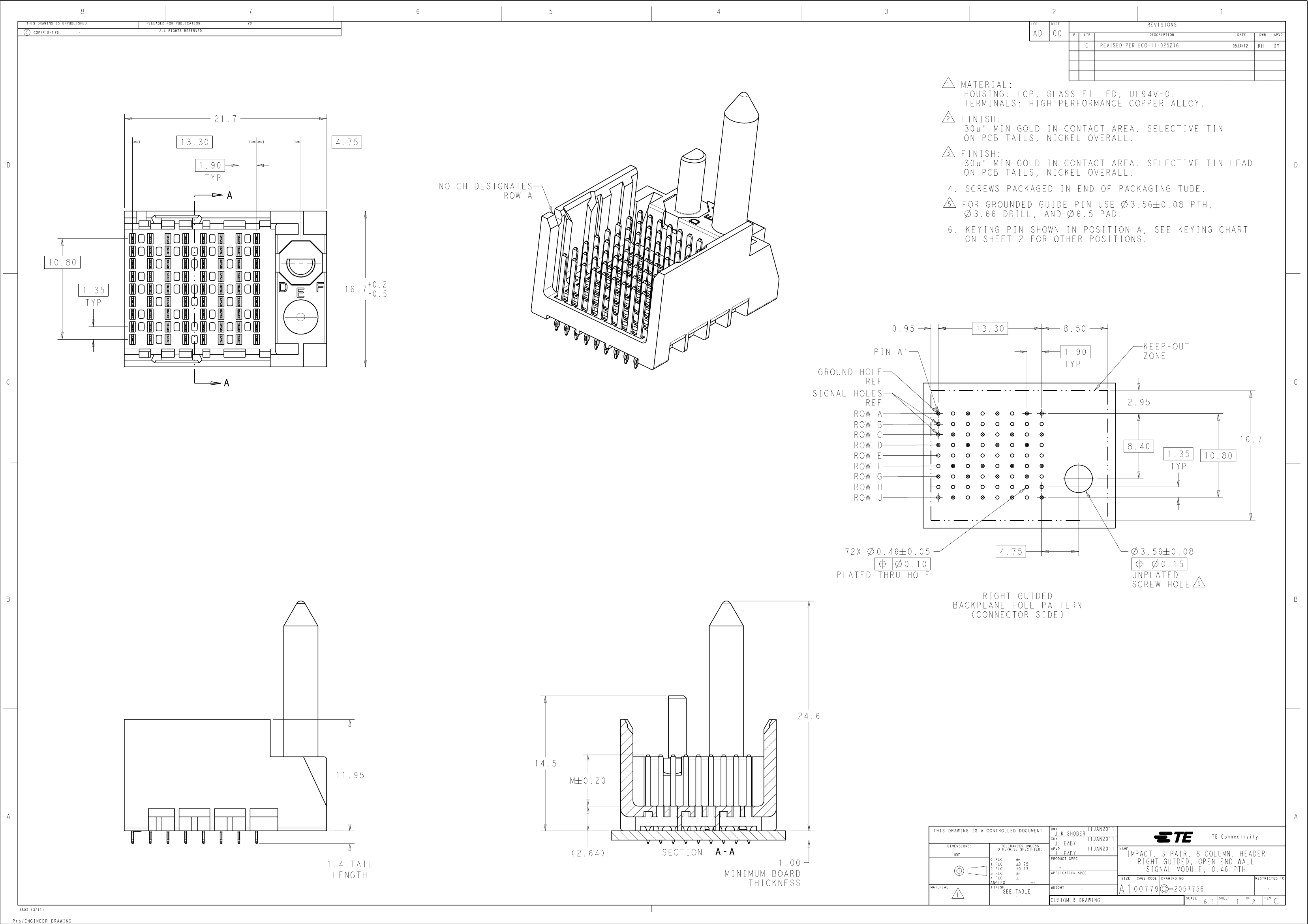

HEADER CONNECTOR,PCB MNT,72 CONTACTS,PIN,0.075 PITCH,COMPLIANT FIT TERMINAL,GUIDE PIN,BLACK
CategoryThe connector    The connector
File Size233KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-2057756-5 Overview

HEADER CONNECTOR,PCB MNT,72 CONTACTS,PIN,0.075 PITCH,COMPLIANT FIT TERMINAL,GUIDE PIN,BLACK

3-2057756-5 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Objectid308722667
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
body width0.657 inch
subject depth0.47 inch
body length0.854 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch0.075 inch
Match contact row spacing0.053 inch
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number9
Number of rows loaded9
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing1.3462 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineUL, CSA
Terminal length0.055 inch
Terminal pitch1.905 mm
Termination typePRESS FIT
Total number of contacts72
