Film capacitors – AC capacitors
Motor run capacitors

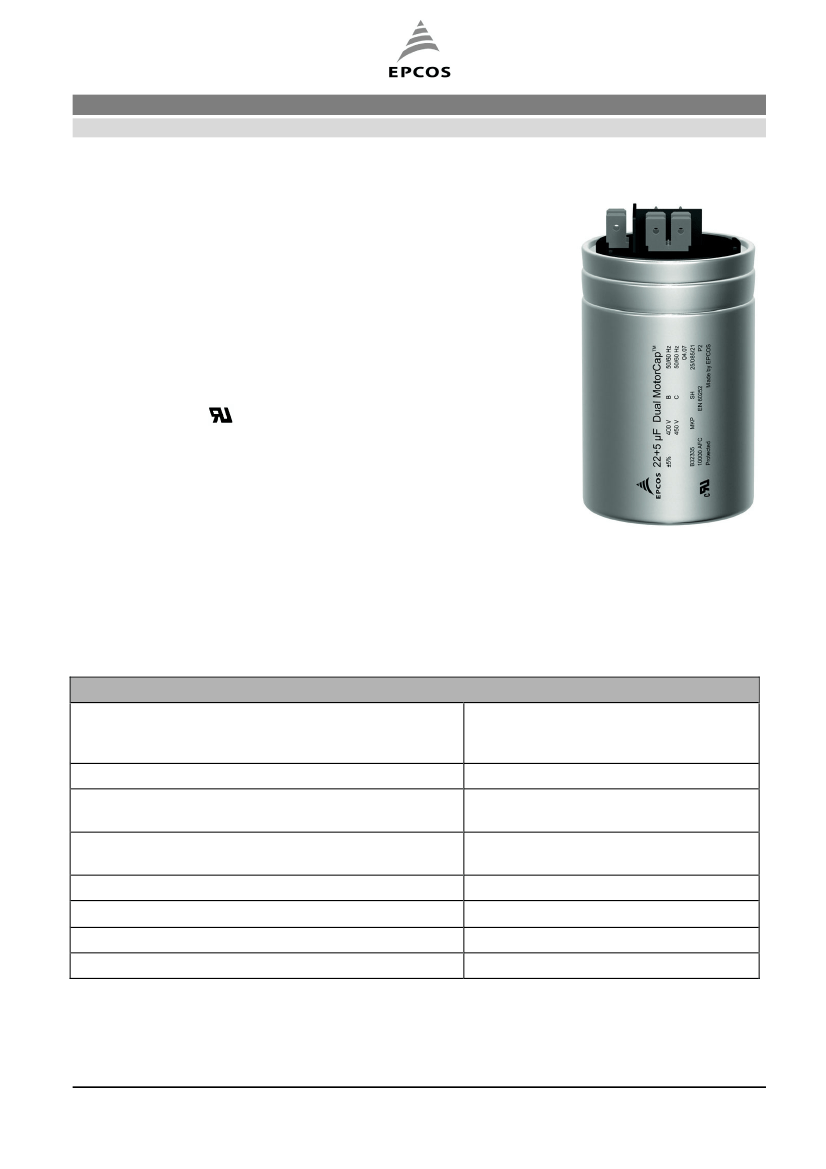

Construction
Dielectric: polypropylene film
Aluminum can
Soft polyurethane resin
Features
Self-healing properties
Low dissipation factor
Overpressure disconnection device
Highest safety level P2 to IEC 60252-1 2001-02
High insulation resistance
Capacitor
C
UL files E106388
Typical applications
For general sine wave applications,
mainly as motor run capacitor
Terminals
B32335 – Dual MotorCap™
Single fast-on terminals: 6.3 × 0.8 mm, double fast-on terminals: 6.3 × 0.8 mm and quadruple
fast-on terminals: 6.3 × 0.8 mm
Mounting parts
Threaded stud at bottom of can (max. torque = 5 Nm of M8) as an option.
Technical data and specifications
Reference standards
IEC 60252-1 2001-02,
EN 60252 2001,
UL 810
P2
420 V:
450 V:
10000 h (class B)
3000 h (class C)
Safety class to IEC 60252-1 2001-02
Life expectancy to IEC 60252 2001
UL 810 file E 106388
for Nashik and Gravatai plant
Rated capacitance C
R
Tolerance
Rated voltage V
R
Rated frequency f
R
Approved Component 10000 AFC
protected
15+2 ... 50+8
±5%
420 V AC, 450 V AC
50 / 60 Hz
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 2 of 7
January 2008
Film capacitors – AC capacitors
Motor run capacitors
B32335 – Dual MotorCap™
Maximum ratings
Maximum permissible voltage V
max
Maximum permissible current I
max
Test data
AC test voltage terminal to terminal V
TT
Insulation voltage terminals to case
Insulation resistance R
ins
or time constant
τ
at 20 °C; rel. humidity
≤
65%
(minimum as-delivered values)
Dissipation factor tan
δ
at 20 °C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Ball pressure test to IEC 60309-1 sec. 27.3
UL 94 V2 compatible
Glow wire test to
IEC 60695-2-11
Test temp 550 °C for I
R
≤
0.5 A
Test temp 850 °C for I
R
> 0.5 A
Tracking test to IEC 60112 solution A
Compatibility to RoHS
Compliance to directive 2002/95/EC
Self-extinguishing within 30 seconds of
withdrawing glow wire
> 250 V
25/070/21 to IEC 60068-1
–25 °C
+70 °C
21 days
20 N at 125 °C
2 · V
R
, 60 s (type test)
2 · V
R
, 2 s (routine test)
2000 V AC, 60 s (type test)
2000 V AC, 2 s (routine test)
3000 s
1.1 · V
R
1.3 · I
R
(V
R
= Rated voltage)
(I
R
= Rated current)
≤
1.0 · 10
-3
(120 Hz)
10 V/μs
Mechanical and thermal properties of terminal top disk material
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 3 of 7
January 2008
Film capacitors – AC capacitors
Motor run capacitors
Dimensional drawings
B32335 – Dual MotorCap™
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 4 of 7
January 2008
Film capacitors – AC capacitors
Motor run capacitors
Ordering codes and packing units
V
R
V AC
420 / 450
C
R
μF
15+2
15+2.5
15+3
15+4
15+5
17.5+2.5
17.5+4
17.5+5
20+2
20+2.5
20+3
20+4
20+5
22+5
25+2
25+2.5
25+3
25+4
25+5
25+7.5
25+8
25+9.5
25+10
25+15
30+2
30+3
30+4
30+5
30+7.5
30+10
Max. dimensions
d ×l
mm
53 × 70
53 × 70
53 × 70
53 × 70
53 × 70
53 × 70
53 × 70
53 × 70
53 × 70
53 × 70
53 × 70
53 × 70
53 × 70
53 × 80
63.5 × 70
53 × 80
53 × 80
53 × 80
53 × 80
53 × 80
53 × 80
53 × 80
53 × 80
53 × 105
53 × 80
53 × 80
53 × 80
53 × 80
53 × 80
53 × 105
B32335 – Dual MotorCap™
Ordering code
B32335I5020J0*0
B32335I5076J0*0
B32335I5021J0*0
B32335I5022J0*0
B32335I5023J0*0
B32335I5077J0*0
B32335I5024J0*0
B32335I5025J0*0
B32335I5027J0*0
B32335I5057J0*0
B32335I5028J0*0
B32335I5050J0*0
B32335I5029J0*0
B32335I5030J0*0
B32335I5031J0*0
B32335I5054J0*0
B32335I5032J0*0
B32335I5033J0*0
B32335I5034J0*0
B32335I5019J0*0
B32335I5051J0*0
B32335I5053J0*0
B32335I5056J0*0
B32335I5098J0*0
B32335I5035J0*0
B32335I5073J0*0
B32335I5036J0*0
B32335I5037J0*0
B32335I5066J0*0
B32335I5038J0*0
Packing units
pcs.
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
