8690330000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 8690330000

8690330000: DescriptionPower/Signal Relay, DPDT, Momentary, 2300mW (Coil), AC Input, AC Output, Panel Mount, CADMIUM FREE; CategoryMechanical and electronic products relay; File Size239KB，5 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8690330000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8690330000	-	-	View	Buy Now

8690330000 Overview

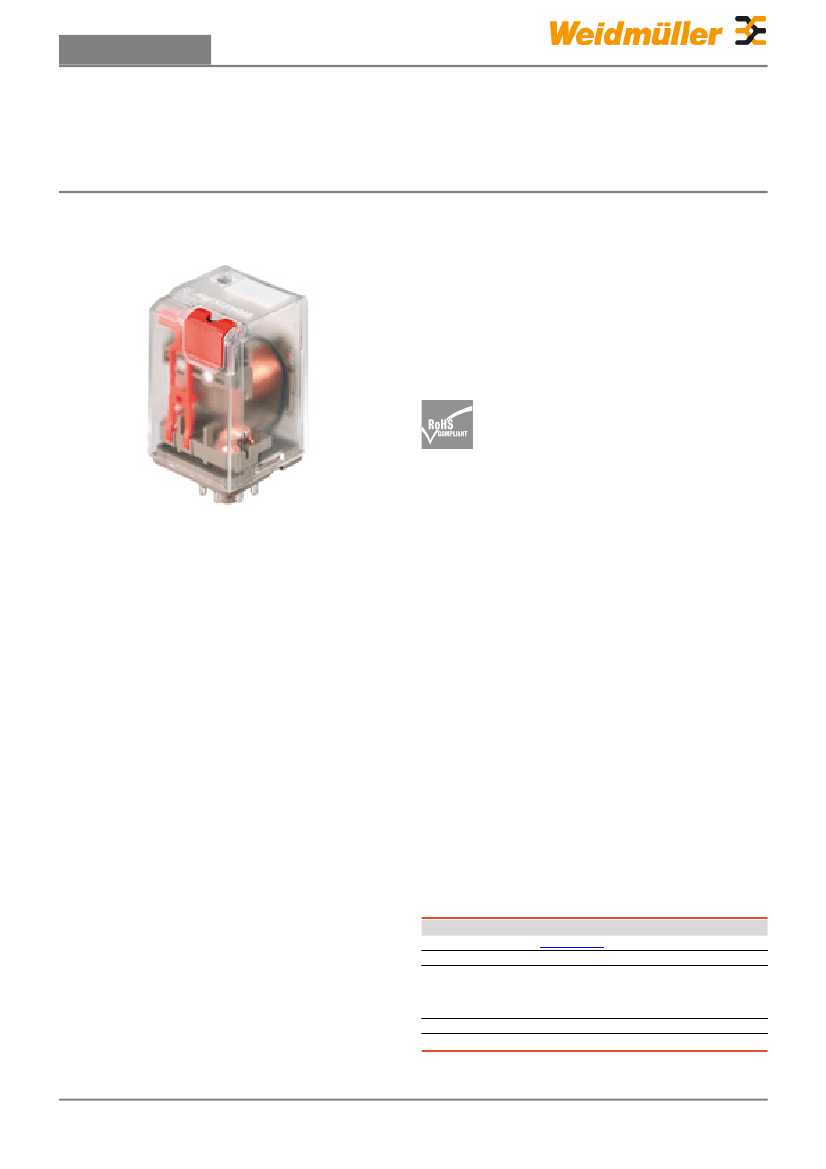

Power/Signal Relay, DPDT, Momentary, 2300mW (Coil), AC Input, AC Output, Panel Mount, CADMIUM FREE

8690330000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
package instruction	CADMIUM FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Other features	COIL OPERATE VOLTAGE(AC): 184 V; COIL RELEASE VOLTAGE(AC): 92 V
body width	35.5 mm
body height	57 mm
Body length or diameter	35.5 mm
Coil current (AC) maximum value	0.01 A
Coil power	2300 mW
Coil resistance	8300 Ω
Maximum coil voltage (AC)	230 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Manufacturer's serial number	8690330000
Installation features	PANEL MOUNT
operating hours	12 ms
Maximum operating temperature	50 °C
Minimum operating temperature	-45 °C
method of packing	BULK
physical size	35.5mm X 35.5mm X 57mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	5 ms
seal	IP20
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

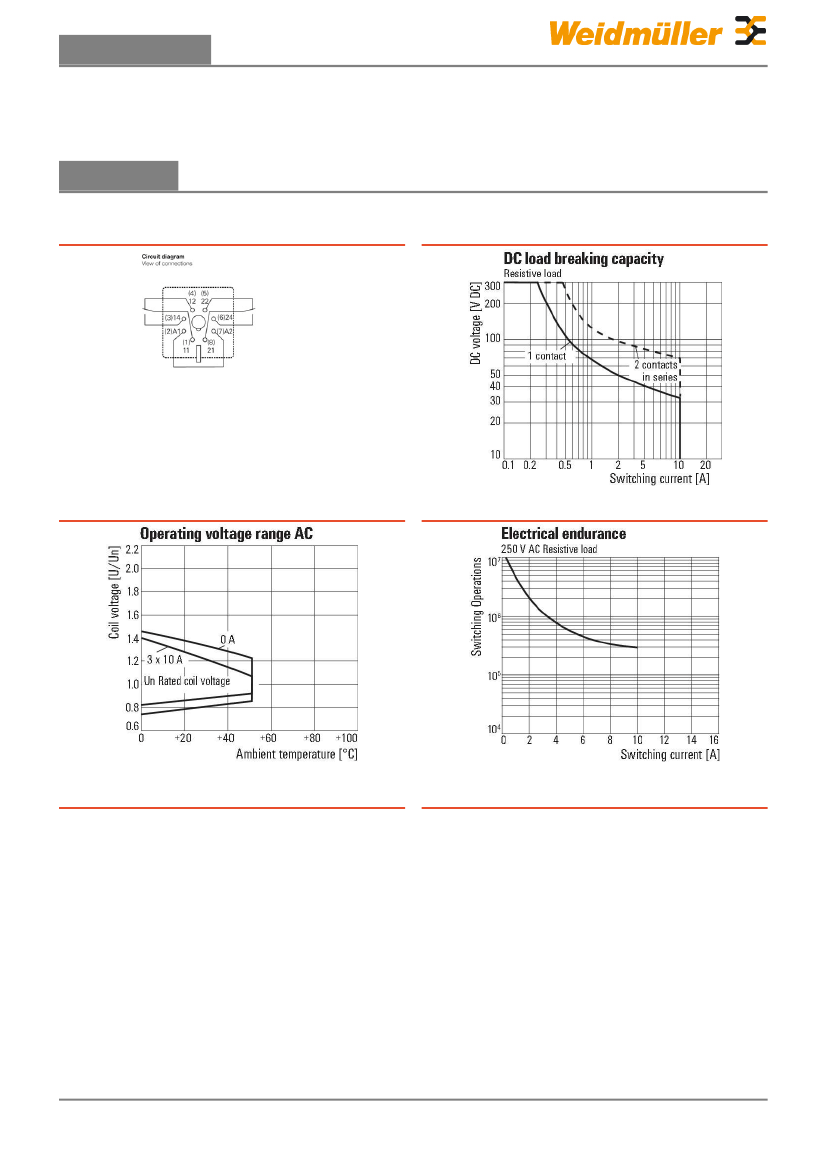

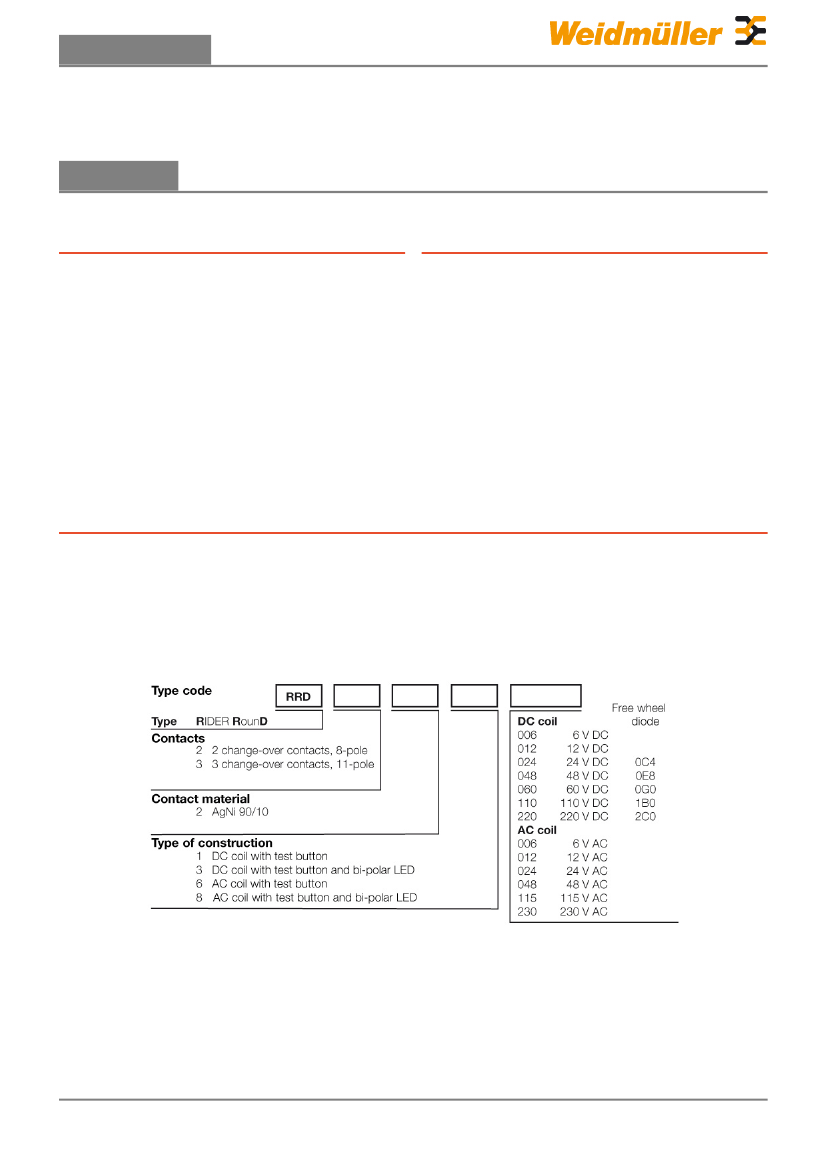

Data sheet...

RIDERSERIES

RRD226230

Weidmüller Interface GmbH & Co. KG

Klingenbergstraße 16

D-32758 Detmold

Germany

Fon: +49 5231 14-0

Fax: +49 5231 14-292083

www.weidmueller.com

The ideal relay version for the separation of input and

output signals in industrial automation.

High powers can be safely switched with the

RIDERSERIES.

Conventional relays and LED indicators are simply

plugged in, retaining and disassembly clips provide a

secure fixing.

General ordering data

Order No.

Type

Version

GTIN (EAN)

Qty.

8690330000

RRD226230

RIDERSERIES, Relais, No. of contacts: 2, CO

contact with test button, AgNi 90/10, Rated

control voltage: 230 V AC, Continuous current: 10

A, Plug-in connection

4032248360956

25 pc(s).

Creation date March 11, 2013 7:26:15 PM CET

Catalogue status 20.12.2012 / We reserve the right to make technical changes.
