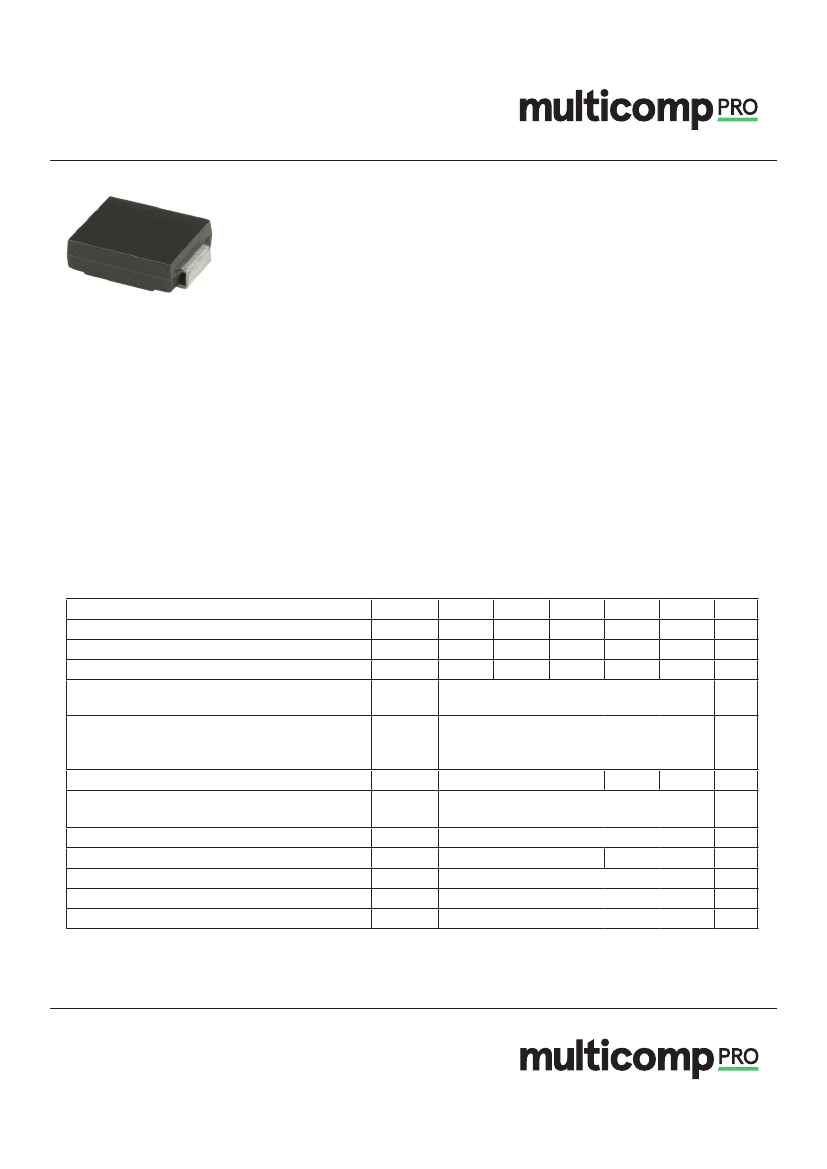

Surface Mount Super Fast
Glass Passivated Rectifer
Features
•
•
•
•
Super fast switching time for high efficiency
Low forward voltage drop and high current capability
Low reverse leakage current
Plastic material has UL flammability classification 94V-0
Mechanical Data
Case
Polarity
Weight
Mounting Position
Reverse Voltage
Forward Current
: Molded Plastic
: Colour band denotes cathode
: 0.003 ounces, 0.093 grams
: Any
: 50 to 600 Volts
: 2 Amperes
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Characteristics
Max. Recurrent Peak Reverse Voltage
Max. RMS Voltage
Max. DC Blocking Voltage
Max. Average Forward
Rectified Current @T
a
= 50°C
Peak Forward Surge Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load(JEDEC Method)
Peak Forward Voltage at 2A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@T
j
= 25°C
@T
j
= 100°C
Symbol
V
rrm
V
rms
V
dc
I
(AV)
I
fsm
V
f
I
r
T
rr
c
j
r
θ
jl
T
j
T
sTg
ES2A+
50
35
50
ES2B+
100
70
100
ES2D+
200
140
200
2
50
ES2G+
400
280
400
ES2J+
600
420
600
Unit
V
V
V
A
A
0.95
5
100
35
40
25
-55 to +150
-55 to +150
1.3
1.7
V
μA
nS
Maximum Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance (Note 3)
Operating Temperature Range
Storage Temperature Range
30
pF
°C/W
°C
°C
Notes
: 1. Measured with I
f
= 0.5A, I
r
= 1A, I
rr
= 0.25A
2. Measured at 1MHz and applied reverse voltage of 4V DC
3. Thermal resistance junction to lead
4. The typical data above is for reference only
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <1>
11/09/19
V1.0

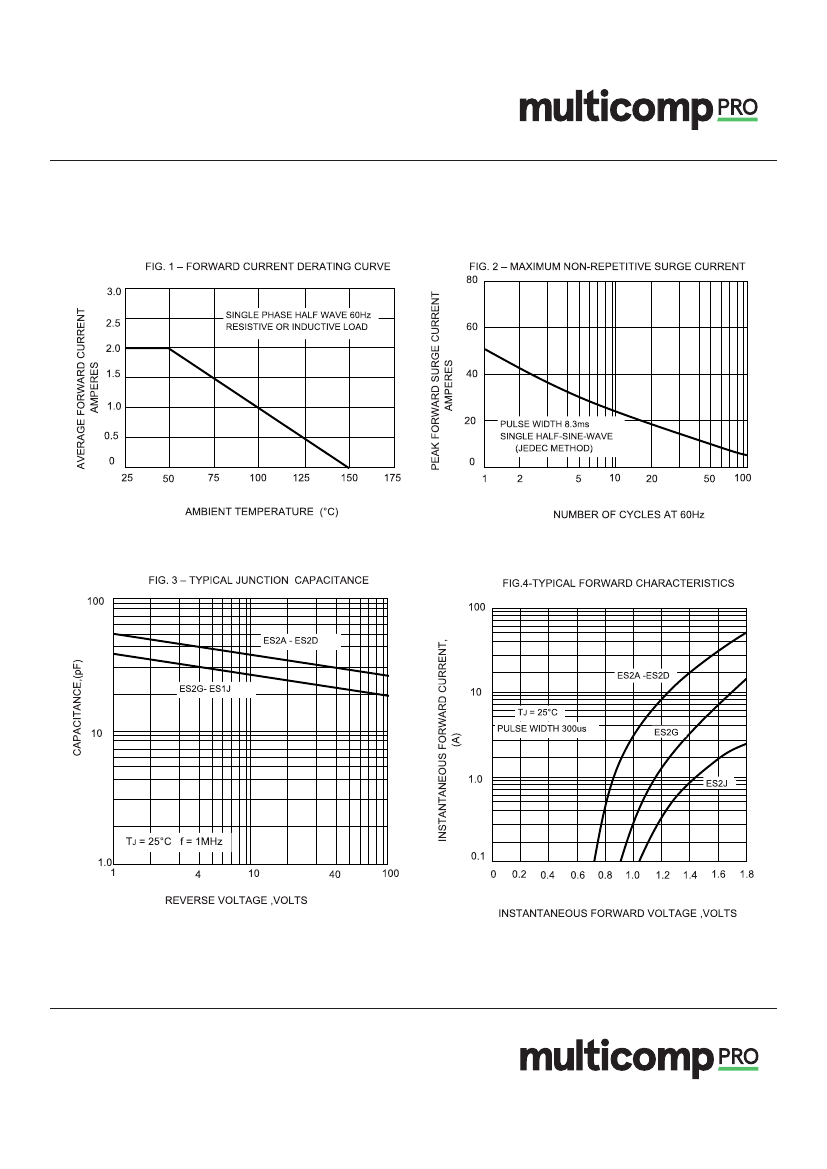

Surface Mount Super Fast
Glass Passivated Rectifer

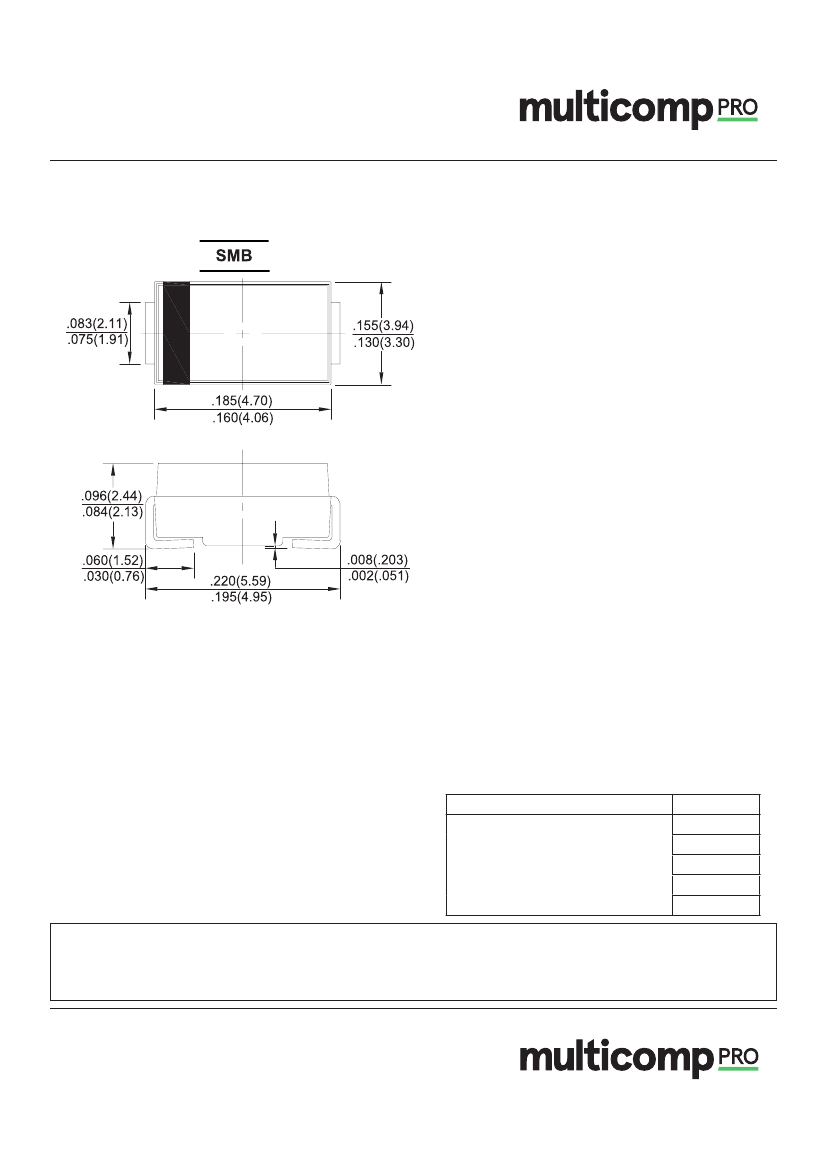

Dimensions:
Dimensions : Inches (Millimetres)
Part Number Table
Description
Part Number
ES2A+
Surface Mount Super Fast
Glass Passivated Rectifers
ES2B+
ES2D+
ES2G+
ES2J+
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for
the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness,
any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make
any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or
where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its
negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <3>
11/09/19
V1.0
