2213S-52T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2213S-52T

2213S-52T: DescriptionBoard Connector, 52 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerNeltron Industrial Company Ltd; Environmental Compliance

Download Datasheet Parametric View All

2213S-52T Overview

Board Connector, 52 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

2213S-52T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8084364760
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	52
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

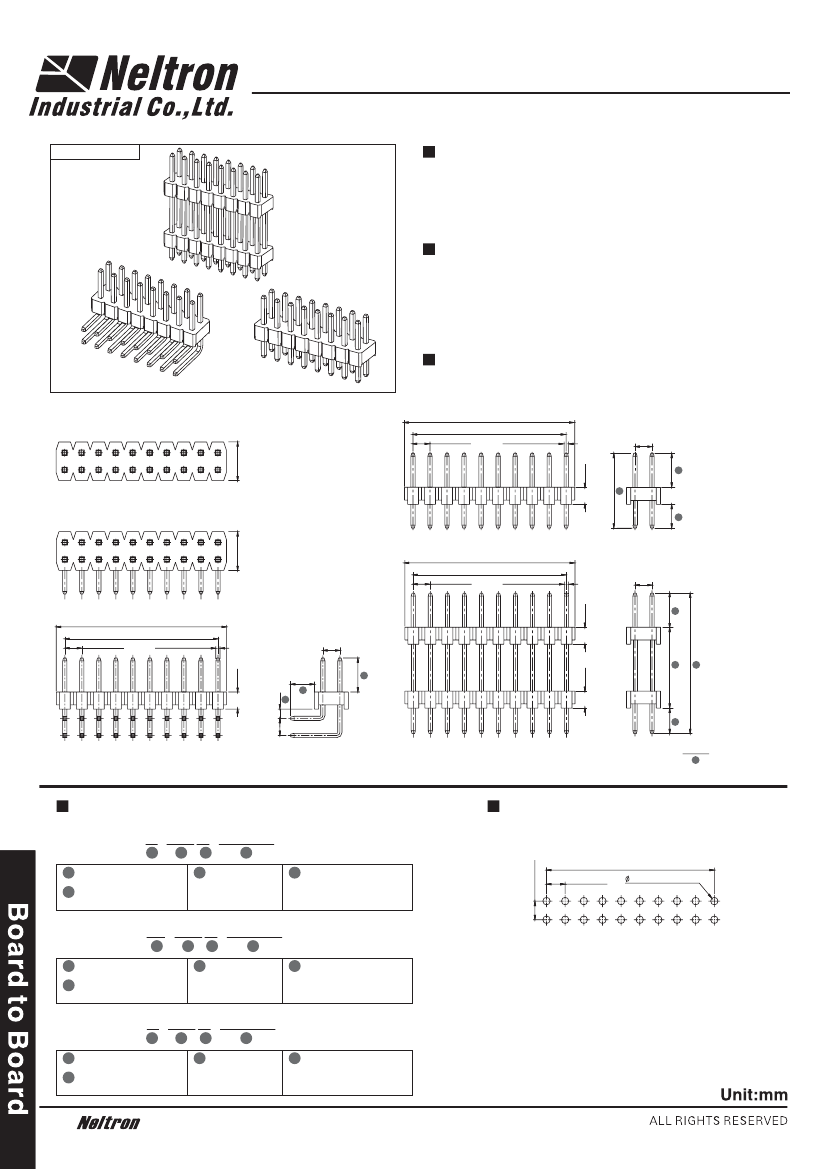

2.54mm Pin Header Double Rows Straight & R/A Type

2213S(R)(DI) Series

RoHS Compliant

Specifications

1. Current Rating: 3.0A AC/DC.

2. Voltage Rating: 250V AC/DC.

3. Contact Resistance: 20m ohm. max.

4. Insulation Resistance: 1000M ohm. Min.

5. Withstanding Voltage: 600V AC for one minute.

6. Operating Temperature Range: -40°C to +105°C.

Material and Finish

2213

DI-X

XG-2

590

1. Insulator:

Standard: PBT (F1) ( UL94V-0 );

High Temp Plastic : Nylon 6T (F2)( UL94V-0 ).

2. Insulator Height: 1.50/1.70/2.00/2.54/3.00mm,(Detail

Spec, Consult to Sales dept).

3. Contact: Copper Alloy.

4 . Plating: Gold Plated .

221

3R-

XXG

Feature

2213

S-XX

1. Design for Home Appliances, Aviation Electronics,

Automobile Electronics and Computer(PC) Peripherals.

2.54X(No. Of Contacts/2) ±0. 30

2.54X(No. Of Contacts/2-1) ±0. 15

2.54±0.10

0.64±0.05 SQ

2.54

6.0

11.54

5.08

3.0

5.08

2.54X(No. Of Contacts/2) ±0. 30

2.54X(No. Of Contacts/2-1) ±0. 15

2.54±0.10

0.64±0.05 SQ

2.54

6.0

17.5

2.54X(No. Of Contacts/2) ±0. 30

2.54X(No. Of Contacts/2-1) ±0. 15

2.54±0.10

0.64±0.05 SQ

2.54

P/N:2213S-XXG

25.9±0.20

6.0

3.0

1.5

2.54

2.4

P/N:2213R-XXG

A/B/C/D Dimension To Be Advised By Value Customers

P/N:2213DI-XXG-2590

Ordering Information

Recommended PCB Layout

2213S-XXG-XXXX

S: Straight Double

No. Of Contacts

(4 To 80 Ways)

Rows

2.54±0.05

2.54X(No. Of Contacts/2-1)±0.10

2.54±0.05

1.10±0.05 HOLE

G:Gold Plated

T: Tin Plated

Blank: Standard Type

XXXX: Special Length

C Dimension

2213DI-XXG-XXXX

DI: Double Insulator

No. Of Contacts

(4 To 80 Ways)

XXXX: Special Length

D Dimension

G:Gold Plated

T: Tin Plated

2213R-XXG-XXXX

Rows

No. Of Contacts

(4 To 80 Ways)

Blank: Standard Type

XXXX: Special Length

A/B/C Dimension

T: Tin Plated

R: Right Angle Double

G:Gold Plated

2008-2013
