Triaxis
Position Sensor IC feat. SENT
MLX90367
Features and Benefits
Triaxis
Hall Technology
On Chip Signal Processing for Robust Absolute Position Sensing
Simple Magnetic Design
Programmable Measurement Range
Programmable Linear Transfer Characteristic (Multi-points)
SENT output (according to SAE J2716-2010)
12 bit Resolution - 10 bit Thermal Accuracy
48 bit ID Number option
Single Die – SOIC-8 Package RoHS Compliant
Dual Die (Full Redundant) – TSSOP-16 Package RoHS Compliant
Applications
Absolute Rotary Position Sensor
Pedal Position Sensor
Throttle Position Sensor
Ride Height Position Sensor
Absolute Linear Position Sensor
Steering Wheel Position Sensor
Float-Level Sensor
Non-Contacting Potentiometer
Ordering Information
1
Part No.
MLX90367
MLX90367
MLX90367
MLX90367
MLX90367
MLX90367
Legend:
Temperature Code:
Package Code:
Option Code:
Packing Form:
Ordering example:
E for Temperature Range -40°C to 85°C
K for Temperature Range -40°C to 125°C
L for Temperature Range -40°C to 150°C
DC for SOIC-8 Package
GO for TSSOP-16 Package (Dual Die – Full Redundant)
XXX-090 – Standard
RE for Reel
TU for Tube
MLX90367LGO-ABS-090-RE
Temperature Suffix
E (− 40°C to + 85°C)
K (− 40°C to + 125°C)
L (− 40°C to + 150°C)
E (− 40°C to + 85°C)
K (− 40°C to + 125°C)
L (− 40°C to + 150°C)
Package Code
DC [SOIC-8]
DC [SOIC-8]
DC [SOIC-8]
GO [TSSOP-16]
GO [TSSOP-16]
GO [TSSOP-16]
Die Revision
ABS
ABS
ABS
ABS
ABS
ABS
Option code
090
090
090
090
090
090
Packing
RE(TU)
RE(TU)
RE(TU)
RE(TU)
RE(TU)
RE(TU)
1
See your sales representative for more details.
Page 1 of 33
Datasheet
25/Jun/13
MLX90367
Rev. 2.0
Triaxis
Position Sensor IC feat. SENT
MLX90367
1. Functional Diagram
V
DIG
DSP
Reg
V
X
V
Y
V
Z
Rev.Pol.
&
OverVolt
.
V
DD
V
SS
-
M
U
X
G
A
D
C
R
O
M
-
F/W
RAM
EEP
ROM
Out (SENT)

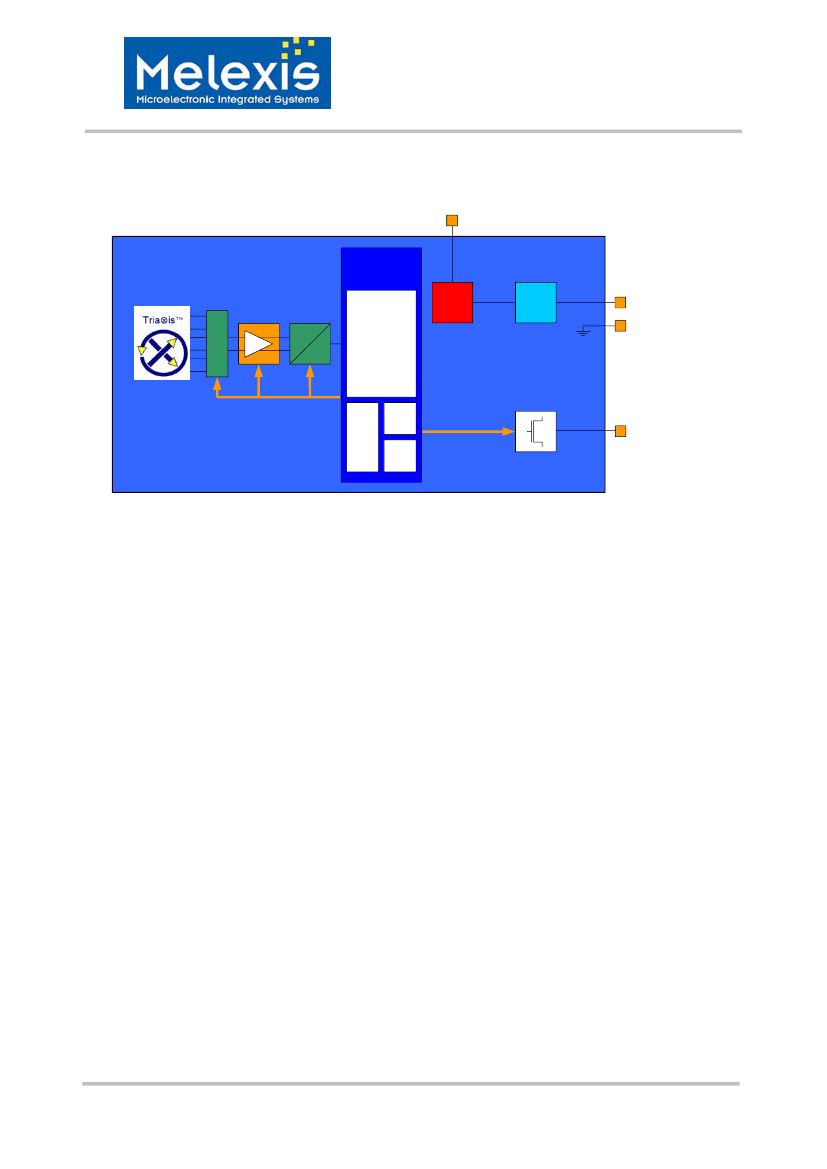

Figure 1 - MLX 90367 Block Diagram
2. Description
The MLX90367 is a monolithic sensor IC sensitive to the flux density applied orthogonally and parallel to
the IC surface.
The MLX90367 is sensitive to the three components of the flux density applied to the IC (i.e. B
X
, B
Y
and
B
Z
). This allows the MLX90367 with the correct magnetic circuit to decode the absolute position of any
moving magnet (e.g. rotary position from 0 to 360 Degrees or linear displacement, stroke). It enables the
design of novel generation of non-contacting position sensors that are frequently required for both
automotive and industrial applications.
MLX90367 provides SENT Frames encoded according the Secure Sensor format.
The circuit delivers enhanced serial messages providing error codes, and user-defined values.
MLX90367
Rev. 2.0
Page 2 of 33
Datasheet
25/Jun/13
Triaxis
Position Sensor IC feat. SENT
MLX90367
TABLE of CONTENTS
FEATURES AND BENEFITS ....................................................................................................................... 1
APPLICATIONS ............................................................................................................................................ 1
ORDERING INFORMATION......................................................................................................................... 1
1.
2.
3.
4.
5.
6.
7.
8.
9.
FUNCTIONAL DIAGRAM...................................................................................................................... 2
DESCRIPTION ....................................................................................................................................... 2
GLOSSARY OF TERMS
ABBREVIATIONS
ACRONYMS ............................................................ 5
PINOUT .................................................................................................................................................. 5
ABSOLUTE MAXIMUM RATINGS ....................................................................................................... 6
DESCRIPTION ....................................................................................................................................... 6
MLX90367 ELECTRICAL SPECIFICATION ......................................................................................... 8
MLX90367 ISOLATION SPECIFICATION ............................................................................................ 8
MLX90367 TIMING SPECIFICATION ................................................................................................... 9
9.1.
9.2.
T
IMING DIAGRAMS
........................................................................................................................................ 10
A
PPLICATION DIAGRAM USED FOR RISE AND FALL TIME MEASUREMENT
....................................................... 11
10. MLX90367 ACCURACY SPECIFICATION ......................................................................................... 12
11. MLX90367 MAGNETIC SPECIFICATION .......................................................................................... 13
12. MLX90367 CPU & MEMORY SPECIFICATION ................................................................................. 13
13. MLX90367 END-USER PROGRAMMABLE ITEMS ........................................................................... 14
14. SENT OUTPUT PROTOCOL .............................................................................................................. 15
14.1.
G
ENERALITY
............................................................................................................................................. 15
14.2.
S
INGLE
S
ECURE
F
AST
C
HANNEL
............................................................................................................... 15
14.2.1. Frame Content...................................................................................................................................... 15
14.2.2. Diagnostic Reporting through the fast channel .................................................................................... 15
14.2.3. Pause pulse........................................................................................................................................... 16
14.2.4. Fast Channel CRC................................................................................................................................ 16
14.3.
S
LOW
C
HANNEL
........................................................................................................................................ 16
14.3.1. Enhanced Serial Message .................................................................................................................... 16
14.3.2. Serial Message Sequence ..................................................................................................................... 17
14.3.3. Serial message sequence period ........................................................................................................... 18
14.3.4. Serial Message Error Code .................................................................................................................. 18
14.4.
S
TART
-
UP
.................................................................................................................................................. 19
14.5.
F
IELD SENSING
(A2D
CONVERSIONS
)
AND THE FRAME
S
YNCHRO PULSE
................................................... 19
15. DESCRIPTION OF END-USER PROGRAMMABLE ITEMS .............................................................. 20
15.1.
O
UTPUT
T
RANSFER
C
HARACTERISTIC
....................................................................................................... 20
15.1.1. CLOCKWISE Parameter ...................................................................................................................... 20
15.1.2. Discontinuity Point (or Zero Degree Point) ......................................................................................... 21
15.1.3. 17-Pts LNR Parameters........................................................................................................................ 21
15.1.4. CLAMPING Parameters ...................................................................................................................... 22
15.2.
I
DENTIFICATION
........................................................................................................................................ 22
15.3.
S
ENSOR
F
RONT
-E
ND
................................................................................................................................. 22
15.3.1. MAPXYZ ............................................................................................................................................... 23
15.3.2. SMISM, k and SEL_k Parameters ........................................................................................................ 23
15.3.3. GAINMIN and GAINMAX Parameters ................................................................................................ 23
15.4.
F
ILTER
...................................................................................................................................................... 24
15.5.
D
IAGNOSTIC
F
EATURES
............................................................................................................................ 24
MLX90367
Rev. 2.0
Page 3 of 33
Datasheet
25/Jun/13
Triaxis
Position Sensor IC feat. SENT
MLX90367
15.6.
EEPROM
ENDURANCE
............................................................................................................................. 24
16. MLX90367 SELF DIAGNOSTIC .......................................................................................................... 25
17. RECOMMENDED APPLICATION DIAGRAMS .................................................................................. 26
17.1.
17.2.
W
IRING WITH THE
MLX90367
IN
SOIC-8 P
ACKAGE
................................................................................ 26
W
IRING WITH THE
MLX90367
IN
TSSOP-16 P
ACKAGE
........................................................................... 26
18. STANDARD INFORMATION REGARDING MANUFACTURABILITY OF MELEXIS PRODUCTS
WITH DIFFERENT SOLDERING PROCESSES ........................................................................................ 27
19. ESD PRECAUTIONS........................................................................................................................... 27
20. PACKAGE INFORMATION ................................................................................................................. 28
20.1.
20.2.
20.3.
20.4.
20.5.
20.6.
SOIC8 - P
ACKAGE
D
IMENSIONS
............................................................................................................... 28
SOIC8 - P
INOUT AND
M
ARKING
............................................................................................................... 28
SOIC8 - S
ENSITIVE SPOT
P
OSITIONING
..................................................................................................... 29
TSSOP16 - P
ACKAGE
D
IMENSIONS
........................................................................................................... 30
TSSOP16 - P
INOUT AND
M
ARKING
.......................................................................................................... 31
TSSOP16 - S
ENSITIVE SPOT
P
OSITIONING
................................................................................................. 31
21. DISCLAIMER ....................................................................................................................................... 33
MLX90367
Rev. 2.0
Page 4 of 33
Datasheet
25/Jun/13
Triaxis
Position Sensor IC feat. SENT
MLX90367
3. Glossary of Terms
Abbreviations
Acronyms
Gauss (G), Tesla (T): Units for the magnetic flux density
1 mT = 10 G
TC:
Temperature Coefficient
(in ppm/Deg.C.)
NC:
Not Connected
SENT: Single Edge Nibble Transmission
ADC:
Analog-to-Digital Converter
LSB:
Least Significant Bit
MSB:
Most Significant Bit
DNL:
Differential Non-Linearity
INL:
Integral Non-Linearity
RISC:
Reduced Instruction Set Computer
ASP:
Analog Signal Processing
DSP:
Digital Signal Processing
CoRDiC:
Coordinate Rotation Digital Computer
(i.e. iterative rectangular-to-polar transform)
EMC:
Electro-Magnetic Compatibility
4. Pinout
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SOIC-8
V
DD
Test 0
Test 2
Not Used
O
UT
Test 1
V
DIG
V
SS
(Ground)
TSSOP-16
V
DIG
1
V
SS
1
(Ground
1
)
V
DD
1
Test 0
1
Test 2
2
O
UT
2
Not Used
2
Test 1
2
V
DIG
2
V
SS
2
(Ground
2
)
V
DD
2
Test 0
2
Test 2
1
Not Used
1
O
UT
1
Test 1
1
For optimal EMC behavior, it is recommended to connect the unused pins (Not
Used
and
Test)
to the
Ground (see section 16).
MLX90367
Rev. 2.0
Page 5 of 33
Datasheet
25/Jun/13
