L25S2405 datasheet, PDF - EEWORLD Datasheet

L25S2405: DescriptionAnalog Circuit,; File Size544KB，9 Pages; ManufacturerACON Inc

Download Datasheet Parametric View All

L25S2405 Overview

Analog Circuit,

L25S2405 Parametric

Parameter Name	Attribute value
Objectid	109428890
package instruction	,
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

ACON

DC-DC CONVERTERS

Series,

25 -30W

Input Ranges :

9-75 VDC

Output Output:

Single Output

3.3V - 24V

Bipolar Output

±5.0V, ±12V, ±15V

Triple Output

+5.0V / ±12V,

+5.0V / ±15V

Output Power:

16 - 30 W

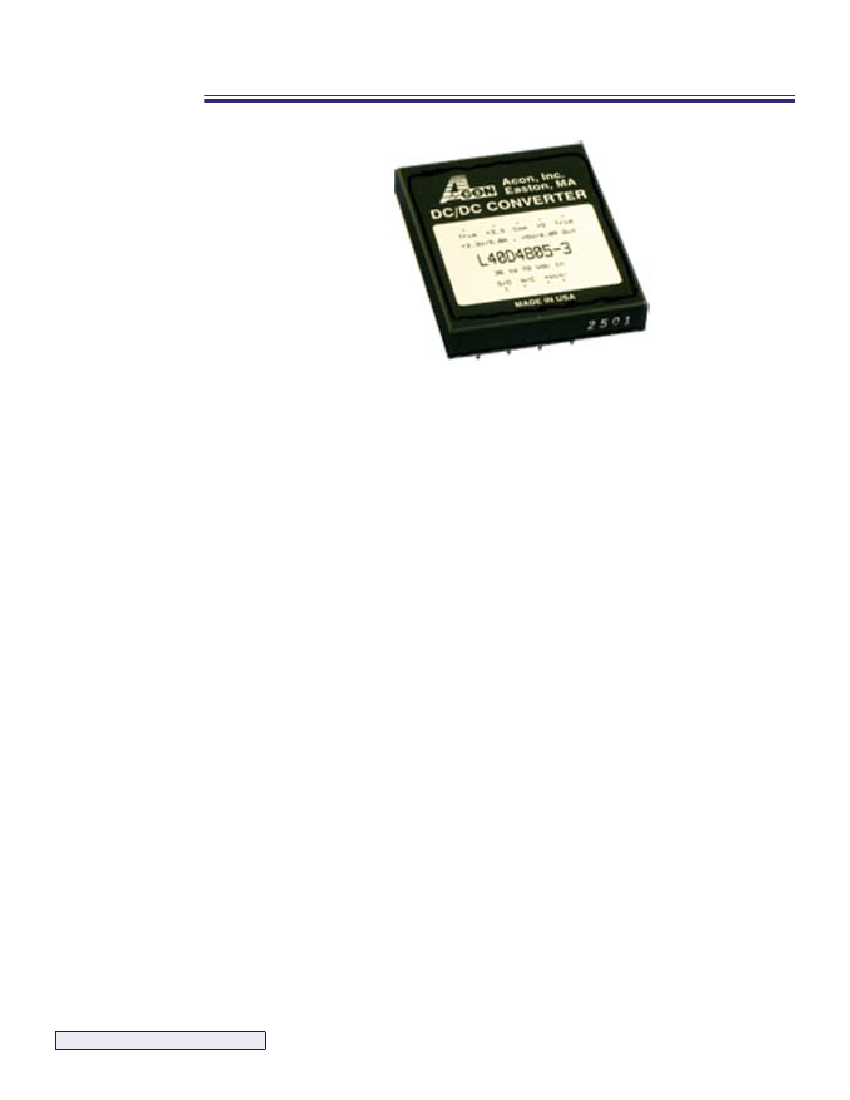

The

DC-DC converters feature high power density, high efficiency and

excellent line & load regulation. Using innovative design technique, state-of-the

art Current Mode PWM control, and Surface Mount packaging & manufacturing

technology, the L series provides up to 30 watts of well regulated power in a

encapsulated 2.56” x 3.0” x 0.40” metal case with six-sided EMI/RFI shielding.

Automatic feed forward compensation, pulse-by-pulse current limiting, and output

short circuit protection are standard for all models.

These converters are designed for wide input range telecommunications,

industrial and instrument applications. The wide input range (2: & 4:) is ideal for

battery or unregulated input applications.

FEATURES

General:

• Small footprint : 2.56” x 3.0”

• Current-Mode Control

• Input/Output Isolation

• Input Voltage from 9 to 75Vdc

• 2: & 4: Input Voltage Range

• High conversion efficiency: 80%

• Line & load regulation to ±1.0%

• Fixed operating frequency

• Six-Sided Shielding

Isolation:

• Isolation Voltage >500V

APPLICATIONS

• Distributed Power Systems

• Workstations

• Computer Equipment

• Communications Equipment

No external components are needed for normal operation. Low ESR capacitors

are used to minimize the conductive noise. This package is ideal for all I/O board

system and distributed DC power configurations.

TABLE OF CONTANTS :

General

Specifications

.................................................................................................. 2

Single Output ................................................................................................................ 4

Bipolar Output ............................................................................................................. 6

Triple Output .................................................................................................................

ACON, INC.

• www.aconinc.com

Series

Rev. Jun. 20, 2000

Pg. of 9
