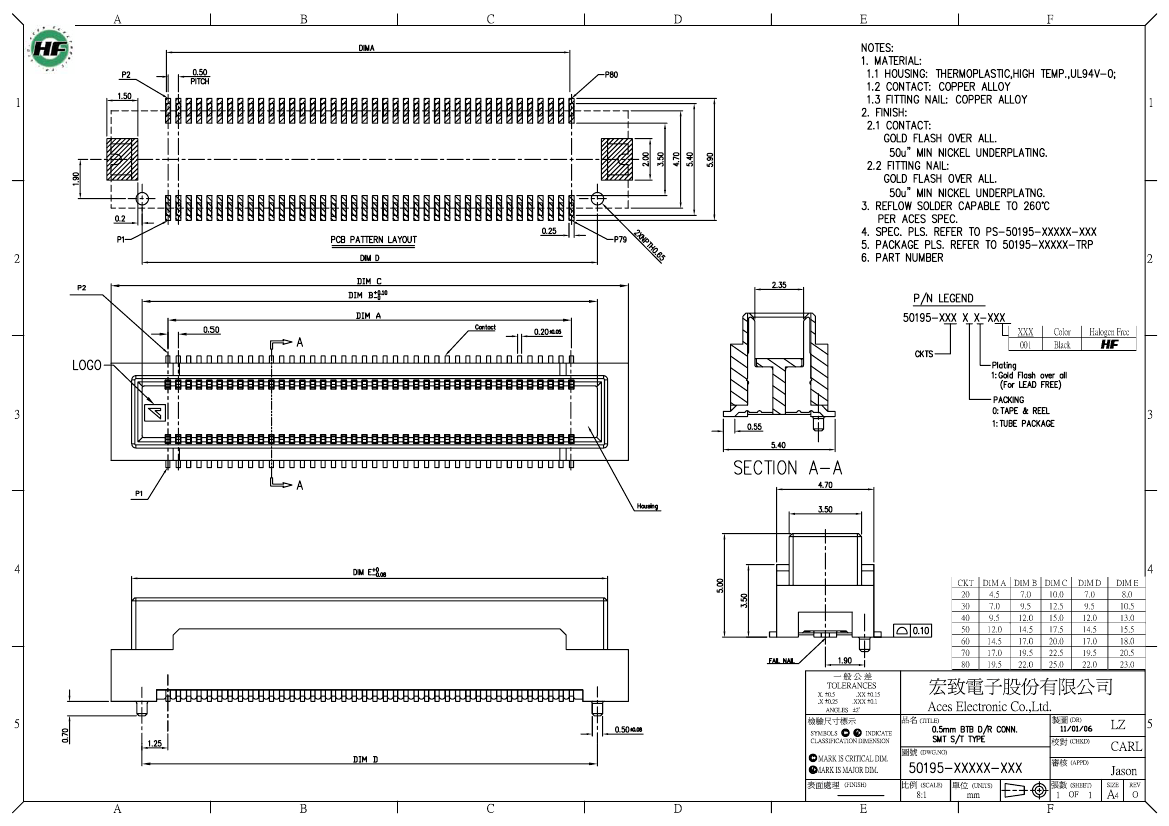

50195-04001-001 datasheet, PDF

50195-04001-001: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

50195-04001-001 Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305564944
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.185 inch
subject depth	0.197 inch
body length	0.591 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
