BL22-0500STT-04U

Description
Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size139KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

BL22-0500STT-04U Overview

Board Connector, 4 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Plug

BL22-0500STT-04U Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304288429
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.193 inch
subject depth0.203 inch
body length0.187 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
insulator materialPOLYETHYLENE
JESD-609 codee3
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing4.6482 mm
Rated current (signal)1.5 A
GuidelineUL
Terminal length0.106 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts4
PRODUCT GROUP 8 -

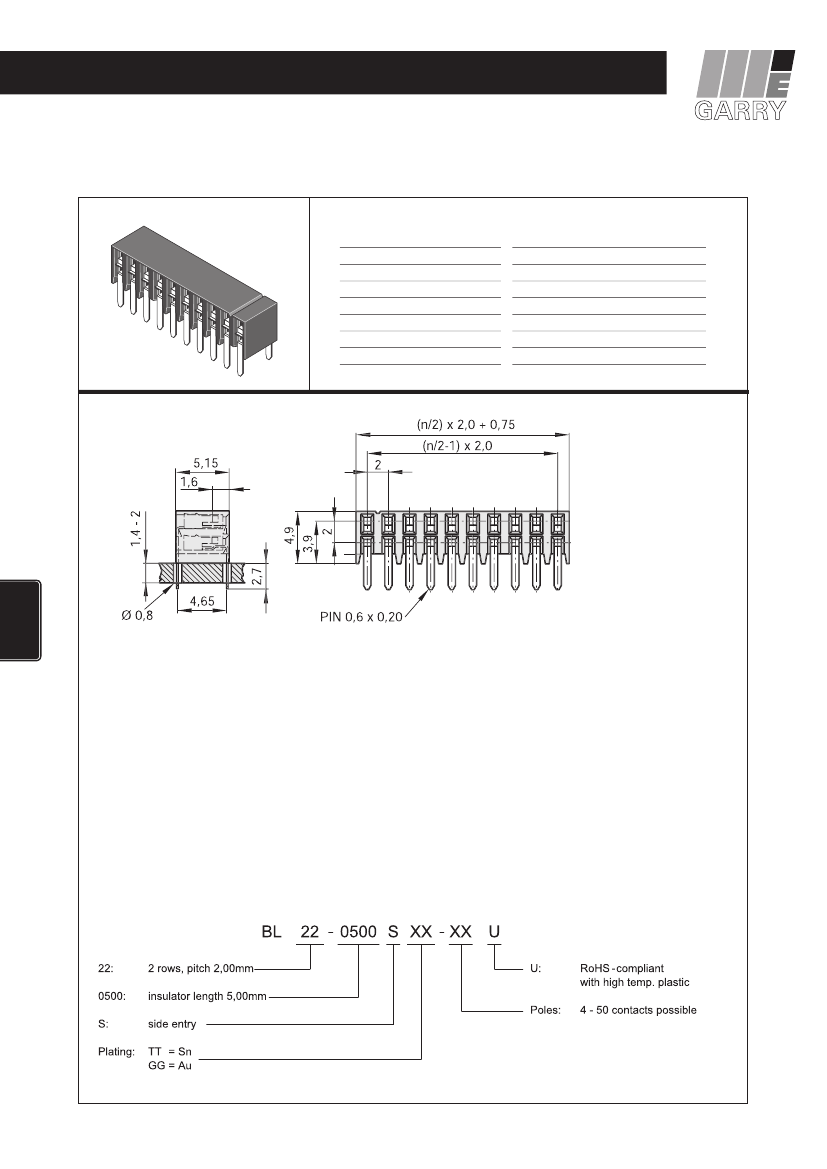

MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm
FEMALE HEADER 2,00 mm
ID: 159
BL 22-0500S
Series 501
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Withstanding Voltage
Operating Temperature
Maximum Soldering Temperature
2,00 mm
high temp. thermoplast UL94V-0
phosphor bronze
1,5 Amp.
100 V
RMS
/150 V
DC
500 V
AC
for one minute
-40°C to +105°C
260°C for 10 seconds
192
8
| 2,00 mm
All dimensions in mm.
Other dimensions upon request.
