17-1221-091-15S-B datasheet, PDF

17-1221-091-15S-B: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Plug; CategoryThe connector The connector; File Size296KB，4 Pages; ManufacturerEaton

Download Datasheet Parametric View All

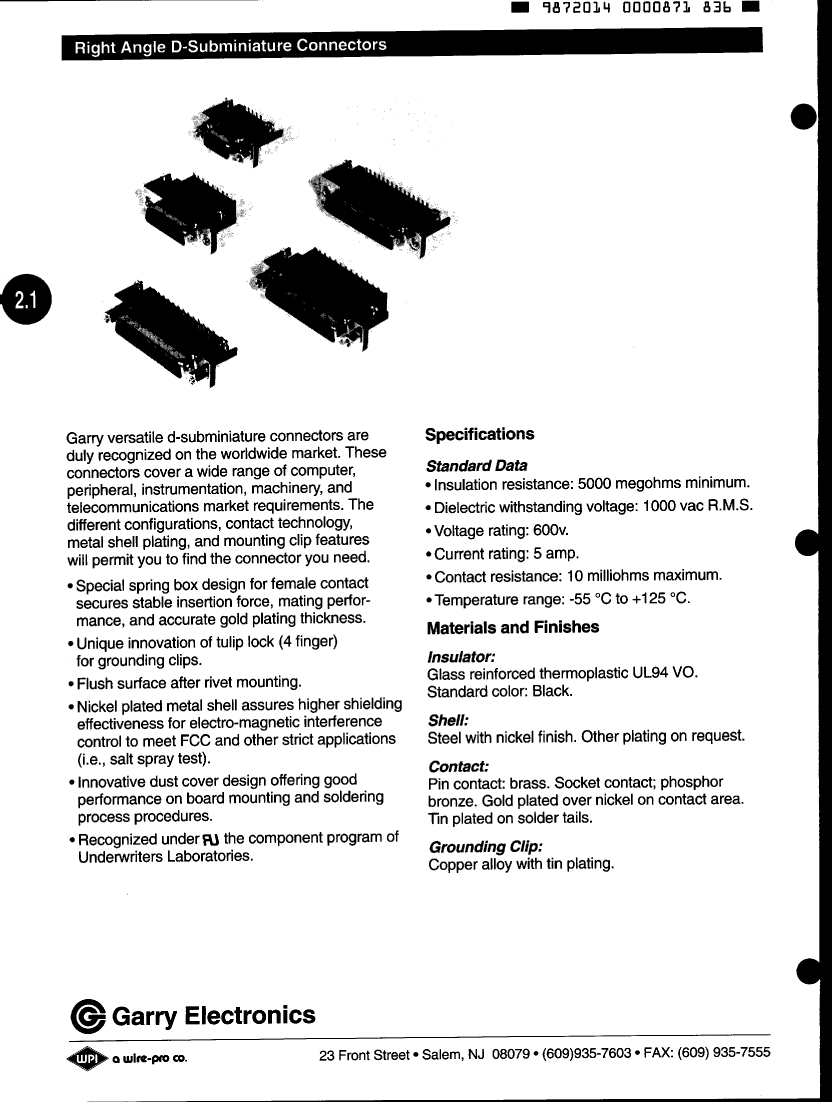

17-1221-091-15S-B Overview

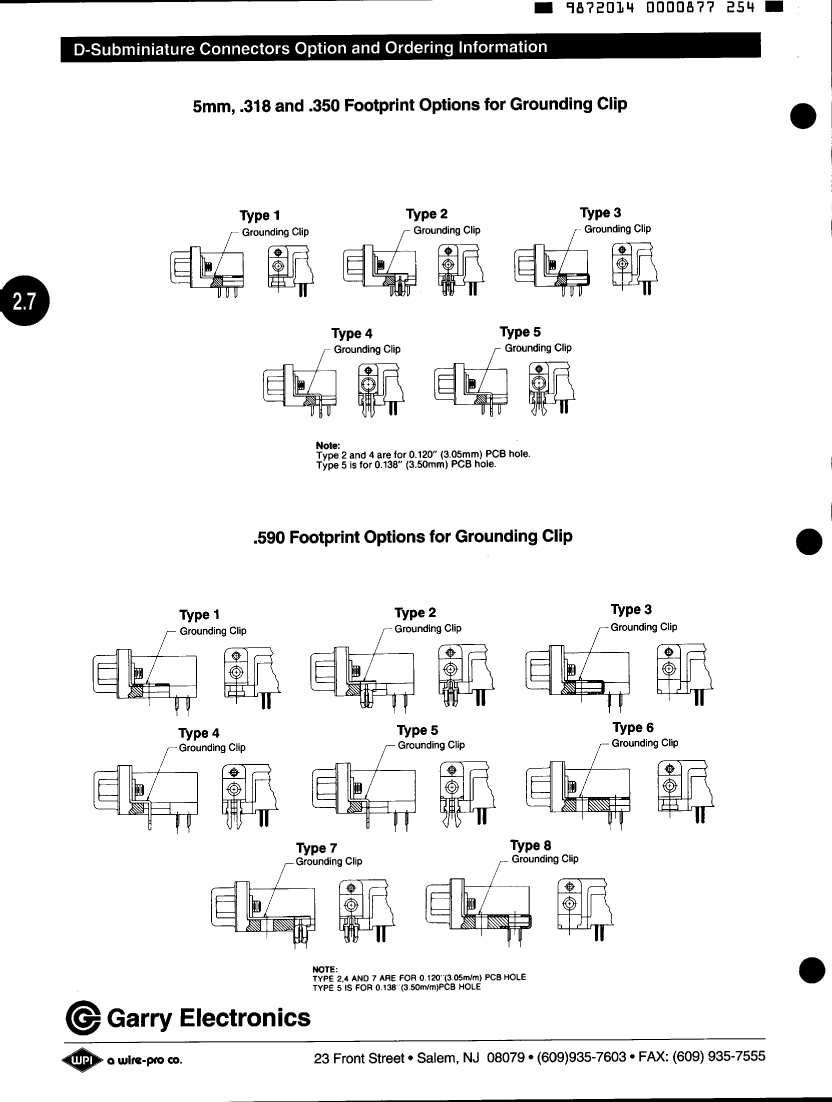

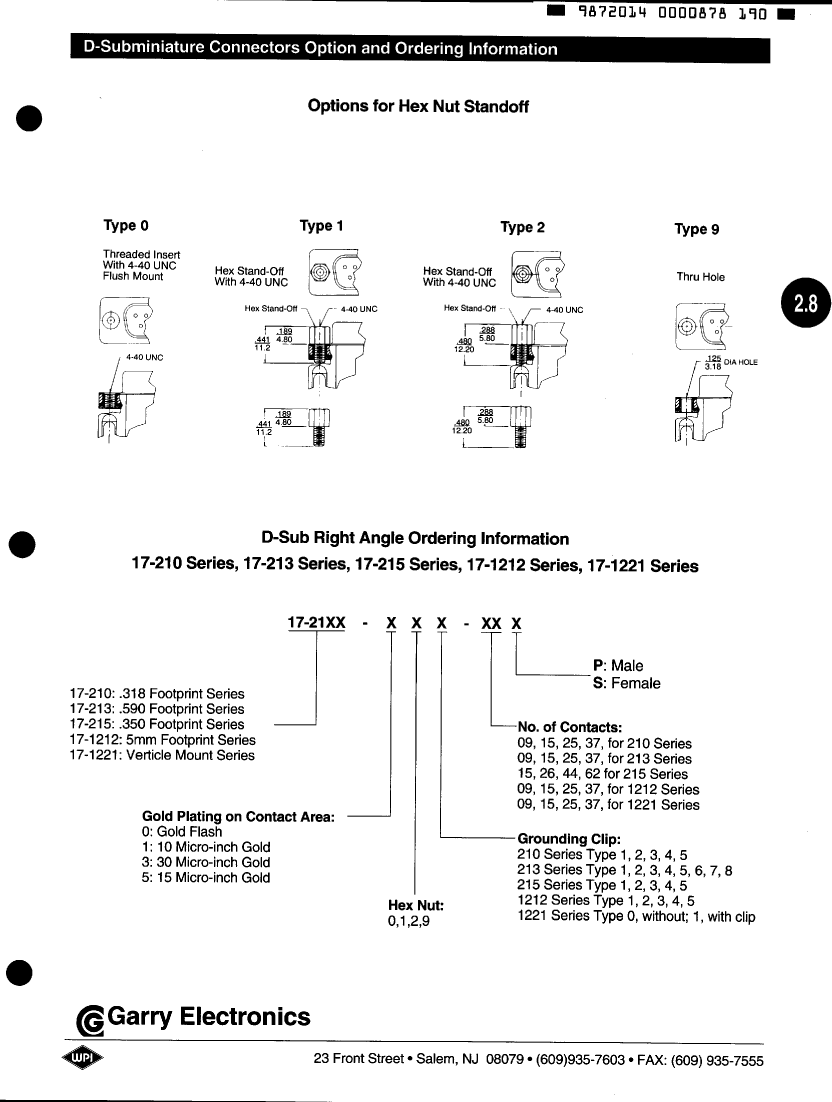

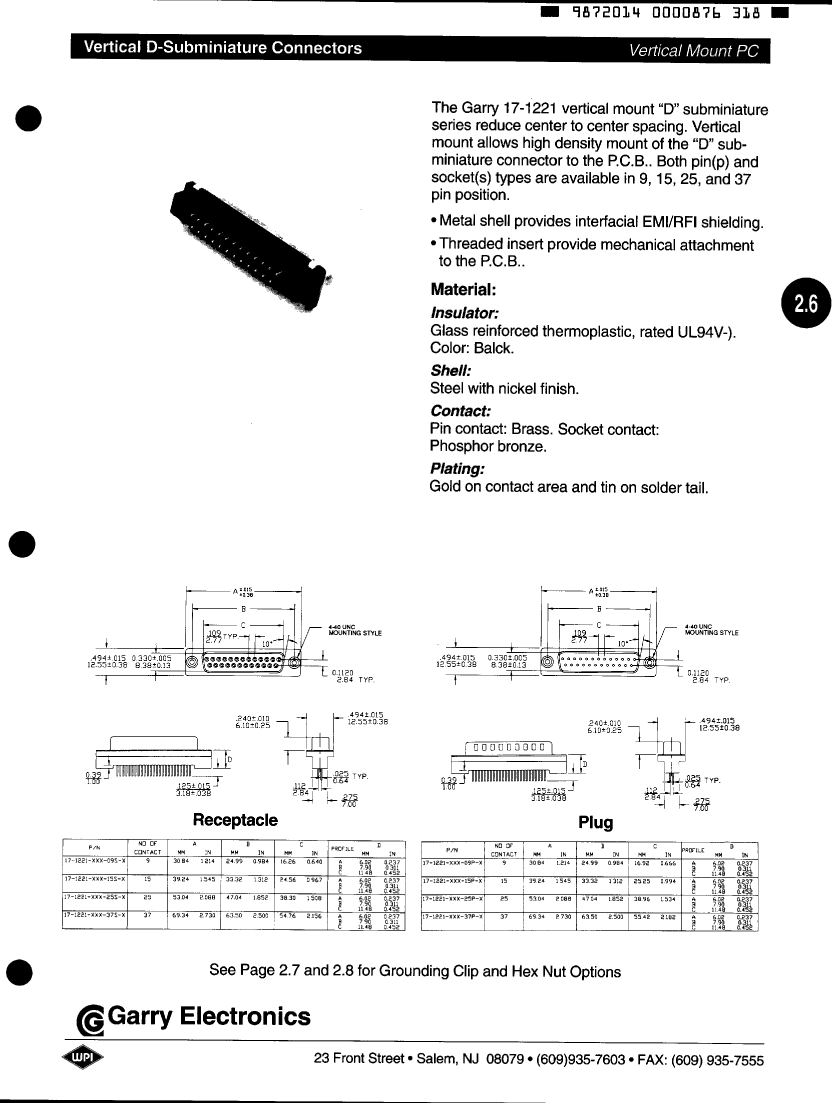

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Plug

Parameter Name	Attribute value
Objectid	1225158073
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.311 inch
body length	1.545 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .125-.137
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Guideline	UL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Termination type	SOLDER
Total number of contacts	15
